Sort by:
All Horizontal Orbital Stretch WrapperSemiauto horizontal wrapperAutomatic horizontal stretch wrapperCustomize orbital wrapper
Customize orbital wrapper
Six-Sided Horizontal Orbital Stretch Wrapper for Panel & Board Packaging
View Specs
Automatic horizontal stretch wrapper
Spiror E100 Horizontal Stretch Wrapping Machine
Package OD50-100mm
Package Length>1000mm
Weight8-100kg
View Specs
Automatic horizontal stretch wrapper
E200 Horizontal Spiral Stretch Wrapping Machine
Package OD50-200mm
Package Length>1000mm
Weight Capacity8-100kg
View Specs
Automatic horizontal stretch wrapper
E300 Horizontal Orbital Stretch Wrapping Machine
Bundle Outer Diameter100-300 mm
Bundle Length>1000 mm
Weight15-100 kg
View Specs
Automatic horizontal stretch wrapper
E400 Horizontal Stretch Wrapping Machine
Bundle Outer Diameter100-400 mm
Bundle Length>1200 mm
Weight Capacity15-100 kg
View Specs
Automatic horizontal stretch wrapper
E500 Series Orbital Horizontal Stretch Wrapping System
Object SizeLength: >1500mm, Bundle OD: 200-500mm, Weight: 50-500kg
Infeed Conveyor2000mm L × 700mm W
Outfeed Conveyor2000mm L × 700mm W
View Specs
Automatic horizontal stretch wrapper
E600 Horizontal Spiral Stretch Wrapping Machine
Object SizeLength: >800mm, Bundle OD: 200-600mm, Weight: 20-200kg
Infeed Conveyor2000mm L × 800mm W
Outfeed Conveyor2000mm L × 800mm W
View Specs
Automatic horizontal stretch wrapper
E1000 Horizontal Spiral Stretch Wrapping Machine
Object SizeLength: >1000mm, Bundle OD: 400-1000mm, Weight: 50-400kg
Infeed Conveyor2000mm L × 1200mm W
Outfeed Conveyor2000mm L × 800mm W
View Specs
Automatic horizontal stretch wrapper
E1400 Automatic Horizontal Orbital Stretch Wrapping Machine
Object SizeLength: 1000-3000mm, Width: 300-1400mm, Height: 50-1000mm
In-Feeding Conveyor Length2000mm
Out-Feeding Conveyor Length2000mm
View Specs
Automatic horizontal stretch wrapper
E1800 Horizontal Orbital Stretch Wrapper
Object SizeLength: >1200mm, Width: 400-1800mm, Height: 50-1500mm, Bundle OD: <1800mm
Speed4-15 m/min
Ring Speed10-60 r/min
View Specs
Automatic horizontal stretch wrapper
E2400 Horizontal Orbital Stretch Wrapping Machine
Length>1800mm
Width900-2200mm
Height200-2200mm
View Specs
Customize orbital wrapper
Horizontal Orbital Pipe Wrapping Machine
VoltageAC 380V/50/60Hz (or custom requirement)
Power6.0 KW
Bundle Outer Diameter300-2000 mm
View Specs
Customize orbital wrapper
Fhope-F Series Horizontal Orbital Stretch Wrapping Machine
Voltage (V/Hz)AC 380/50 (or as per requirement)
Power (KW)6.8
Outer Diameter (mm)200-500
View Specs
Customize orbital wrapper
Aluminum Horizontal Orbital Wrapping Machine
VoltageAC 380V/50Hz (or custom requirement)
Power4.8 KW
Outer Diameter300-1500 mm
View Specs
Customize orbital wrapper
Profile Horizontal Orbital Wrapping Machine
Operation ModeManual and automatic
Control SystemPLC and HMI touchscreen
Film Reloading Time5 seconds
View Specs
Customize orbital wrapper
Orbital Horizontal Stretch Wrapper with Integrated Bubble Film Sealing System
ControlPLC
Structure MaterialCarbon steel
Packing ObjectsLength: 900-2400mm, Width: 200-1200mm, Height: 100-800mm, Weight: 20-100kg
View Specs
Customize orbital wrapper
Spiral Orbital Wrapper
Voltage (V/Hz)AC 380/50 (or as required)
Power6.5 kW
Section OD (mm)500-1200
View Specs
Customize orbital wrapper
Horizontal Ring Stretch Wrapper
Voltage380/400/415V-50/60Hz
Power6.5KW
Package OD200-2000mm
View Specs
Customize orbital wrapper
Industrial Horizontal Stretch Wrapping Machine
VoltageAC 380V/50Hz (or custom requirement)
Power6.5 KW
Width800-1500 mm
View Specs
Customize orbital wrapper
Fhope Bale Horizontal Orbital Stretch Wrapper
VoltageAC 380V/50Hz
Power Supply6.5 KW
OD800-2000 mm
View Specs
Semiauto horizontal wrapper
S200 Semi-Automatic Horizontal Orbital Stretch Wrapping Machine
Object SizeLength: >300mm, OD: 10-200mm, Weight: 10-100kg, Entrance conveyor length: 2000mm motor drive, Outlet conveyor length: 2000mm motor drive
Conveying Speed4–12 m/min
Ring Speed20-120 r/min
View Specs
Semiauto horizontal wrapper
S300 Semiautomatic Horizontal Orbital Stretch Wrapping Machine
Length>1000mm
OD50-300mm
Entrance Conveyor Length2000mm
View Specs
Customize orbital wrapper
Automatic Horizontal Orbital Stretch Wrapper with Integrated Timber Feeding System
Case Bundle Space Min300x300x6500 mm
Case Bundle Space Max500x500x6500 mm
Air Supply6-8 bar
View Specs
Customize orbital wrapper
Automated EPS Panel Packing Machine
Object SizeWidth: 1000-1250mm, Height: 600-1200mm, Length: >2000mm
Entrance Conveyor Length3000mm with motor
Outlet Conveyor Length3000mm with motor
View Specs
Customize orbital wrapper
Industrial Horizontal Stretch Wrapping Machine for Furniture
Wrapping Object SizeLength: >1500 mm, Width: 800-1800 mm, Height: 800-1800 mm, Weight: 20-200 kg
Conveyor Speed4-12 m/min
Wrapping Ring ID>1400 mm
View Specs
Semiauto horizontal wrapper
S100 Semi-Automatic Horizontal Orbital Stretch Wrapper
Object SizeBundle OD: 50-200mm
Length>1500mm
Entrance Conveyor Length1000mm with motor
View Specs
Customize orbital wrapper
Horizontal Orbital Panel Stretch Wrapping Machine
Package Size Width1000-1500 mm
Package Size Height300-1400 mm
Package Size Length2000-3000 mm
View Specs
Customize orbital wrapper
1234556
View Specs
Semiauto horizontal wrapper
Automatic Box Taping and Sealing Machine
Application SizeWide 400mm, High 300mm
Equipment SizeLength 880mm, Width 500mm, Height 900mm (Base Height 470mm, Total Height 1370mm)
Voltage220 V, 50 Hz
View Specs
Semiauto horizontal wrapper
Industrial Tape Wrapping and Sealing Machine
View Specs
Customize orbital wrapper
Mobile Horizontal Orbital Pallet Wrapper
Object Size (Pallet)Length: 1200mm, Width: 1200mm, Height: 900mm
Max Weight1000 kg
Packing MaterialsHDPE Film / PE Stretch Film
View Specs
Technical Insights: Horizontal Orbital Stretch Wrapper
Technical Overview

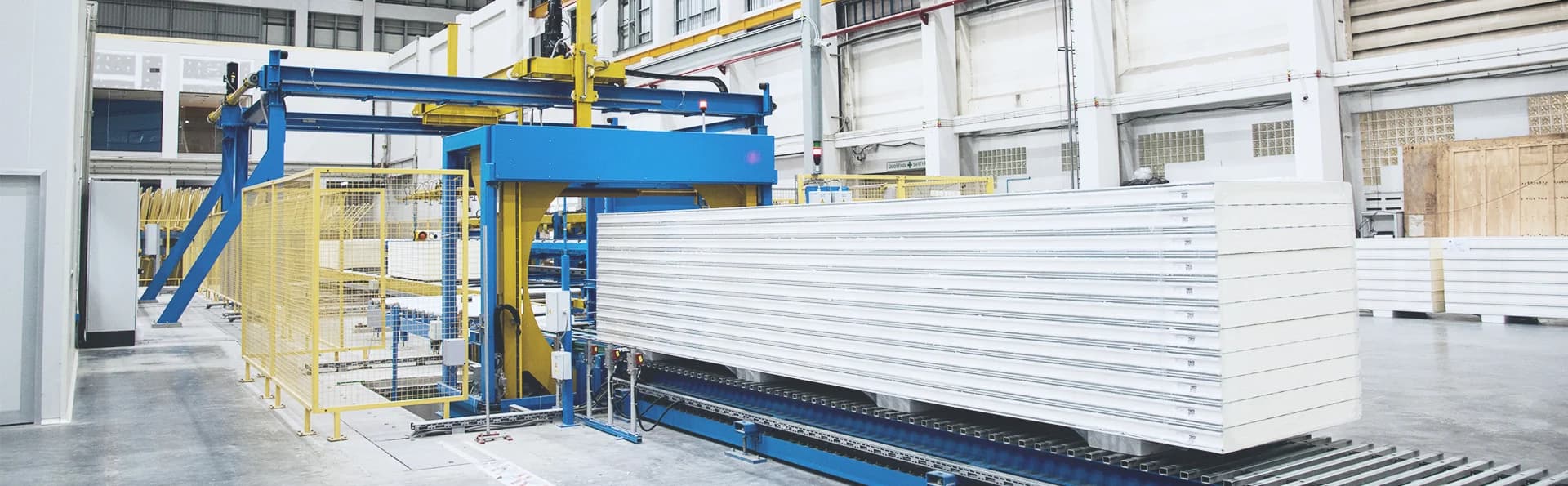

A Horizontal Orbital Stretch Wrapper is an industrial packaging system engineered to secure elongated products. Unlike vertical pallet wrappers that rotate the load, this machinery employs a rotating ring mechanism that dispenses stretch film around the product as it advances horizontally through the wrapping station. This method ensures continuous, uniform containment for items that cannot be palletized.
Industry Applications
This technology is widely adopted across manufacturing sectors for stabilizing and protecting:
- Construction Materials: Lumber, molding, siding, and composite boards.
- Metal Profiles: Aluminum extrusions, steel pipes, copper tubes, and rod bundles.
- Plastic Fabrication: PVC pipes, plastic profiles, and window blinds.
Operational Advantages
Implementing horizontal orbital wrapping offers several operational benefits over manual packaging. The process significantly increases throughput speed while reducing labor costs. Furthermore, the consistent film tension provides superior load stability and protection against dust, moisture, and surface abrasion during storage and transport, minimizing product damage rates.
