Spiral Orbital Wrapper

Model:108

Professional spiral orbital stretch wrapper for pallet unitization and protection. Features conveyor systems, PLC control, and automatic operation. Ideal for various industries.

Key Specifications

Power:6.5 kW
Weight ( Kg):100-500
Ring Speed (r/min):30-60
Wrapping Speed:2-10 m/min
Voltage ( V/ Hz):AC 380/50 (or as required)

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The Spiral Orbital Stretch Wrapper is designed to protect products during transportation by effectively unitizing pallets with stretch wrapping. It is suitable for straight products, profiled materials, pipes, aluminum, rods, and panels, making it versatile across multiple industries. This machine offers high efficiency and low cost, with a focus on quality control and turnkey project capabilities, including stacking, conveying, wrapping, and strapping.

Key Benefits

  • Conveyor system with belt motor conveyors to protect product surfaces
  • Automatic infeed and outlet conveyors with adjustable speed via inverter
  • Auto sensor detection for object operation
  • Optional PLC and HMI control system for automatic wrapping and trouble alarms
  • Optional automatic mechanical hand for material cutting and unmanned operations
  • Separate panel box for easy operation and maintenance

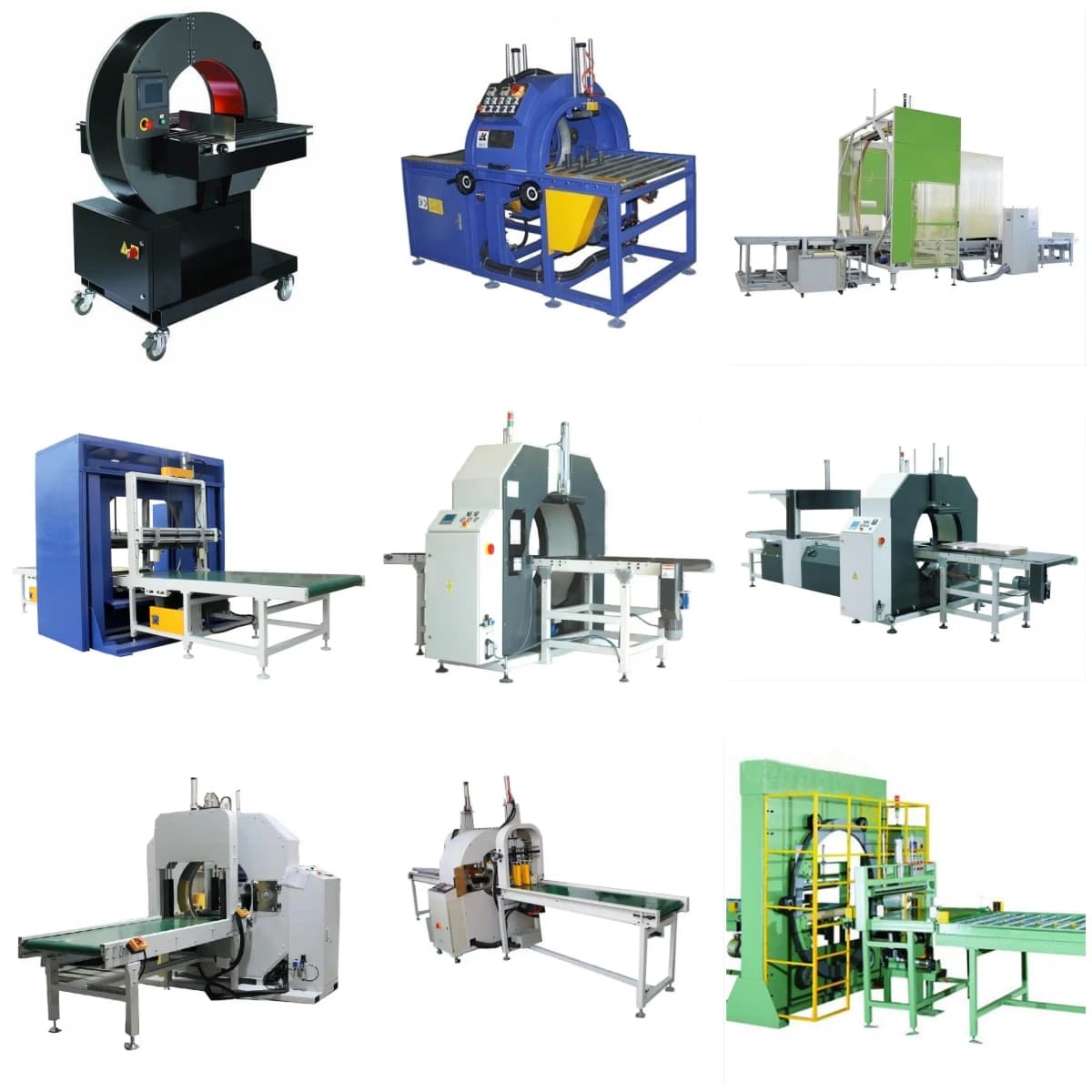

Spiral Orbital Wrapper Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

SpecificationValue
Section O D (mm)500-1200
Length (mm)2000-6000
Packing MaterialPE/Stretch film/Knit belt/VCI paper
Overlapping Rate20-90%

Frequently Asked Questions

Common questions about Spiral Orbital Wrapper and our services.

Q:What industries is the Spiral Orbital Stretch Wrapper suitable for?

It is suitable for various industries, including those handling straight products, profiled materials, pipes, aluminum, rods, and panels, due to its versatile design.

Q:Does the machine support automatic operation?

Yes, it features optional automatic mechanical hands and PLC control for unmanned operations, including material cutting and sensor-based packing.
