S200 Semi-Automatic Horizontal Orbital Stretch Wrapping Machine

Model:118

S200 Semi-Automatic Horizontal Orbital Stretch Wrapping Machine. Connects with production lines for automatic operation. Industrial Semiauto horizontal wrapper solution.

Specifications

Object Size:Length: >300mm, OD: 10-200mm, Weight: 10-100kg, Entrance conveyor length: 2000mm motor drive, Outlet conveyor length: 2000mm motor drive
Conveying Speed:4–12 m/min
Ring Speed:20-120 r/min
Power Output:Approx. 2.1 kW
Power Voltage:AC 380V, 60Hz
Material:LLDPE stretch film, Width: 120-200mm, OD: 150-200mm, ID: 50mm

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This semiauto horizontal stretch wrapper is designed for efficient and stable industrial packaging, featuring automatic operation integration with production lines and advanced safety mechanisms.

It utilizes PLC control and HMI for precise management, with adjustable settings to handle various object sizes and materials, ensuring reliable performance in demanding environments.

Key Benefits

  • Connects with production lines for automatic operation
  • Double rings and wheels for safe and stable performance
  • PLC control program and HMI for easy management
  • Photocell-sensor for automatic positioning
  • Automatic alarms for trouble detection
  • Wrapping ring speed controlled by converter
  • Board up and down for centralizing positioning of different ODs
  • Adjustable tension via break device
  • Control panel for operation and maintenance
  • Motor drive conveyors for automatic transport
  • Soft start and soft stop functions
  • Guardrails for enhanced operation safety
  • Automatic machine hand for online wrapping

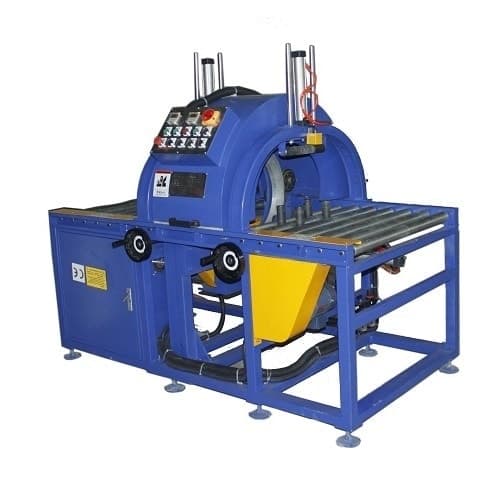

S200 Semi-Automatic Horizontal Orbital Stretch Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Frequently Asked Questions

Common questions about S200 Semi-Automatic Horizontal Orbital Stretch Wrapping Machine and our services.

Q:What is the main application of this semiauto horizontal stretch wrapper?

It is used for wrapping pipe bundles and similar objects in industrial settings, offering automatic operation and integration with production lines.

Q:Does this machine include safety features?

Yes, it features guardrails, automatic alarms, and stable double rings and wheels to ensure safe operation.

Q:Can the tension be adjusted on this wrapper?

Yes, tension is adjustable via a break device, allowing customization for different packaging needs.
