HomeHorizontal Orbital Stretch WrapperSemiauto horizontal wrapperS300 Semiautomatic Horizontal Orbital Stretch Wrapping Machine
S300 Semiautomatic Horizontal Orbital Stretch Wrapping Machine - View 1
1 / 2

Tap thumbnails to view different images

Semiauto horizontal wrapper

S300 Semiautomatic Horizontal Orbital Stretch Wrapping Machine

Model:119

Discover our semiauto horizontal film wrapping machine, designed for pipes, tubes, and bars. Features aluminum alloy ring, PLC control, and adjustable tension for secure packaging.

Specifications

Length:>1000mm
O D:50-300mm
Entrance Conveyor Length:2000mm
Outlet Conveyor Length:2000mm
Ring Speed:100r/min
Power Output:Approximately 1.5kW
Power Voltage:AC 380V, 60Hz
Material:Stretch film, Width: 120mm, OD: 250mm, ID: 50mm

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The semiauto horizontal film wrapping machine is specialized for horizontal shapes such as pipes, tubes, bars, and floor boards, providing well-protected, sealed, and tidy packaging. It features a lightweight and strong aluminum alloy ring for accurate, high-speed wrapping, with a special PU wheel drive and bearing for adjustable traction and stable operation. This machine simplifies loading and film insertion, includes a roll carriage with locking and quick release, and requires only power and air connections for installation.

Key Benefits

  • Friction wheel device for safe and stable operation
  • PLC man-machine interface with photoelectric sensor sensing
  • Automatic alarm for indicator failures
  • Adjustable overlap rate and packing tension
  • Easy routine maintenance
  • Support roller to fix product position and prevent shaking
  • Automatic clamping and cutting device for high efficiency

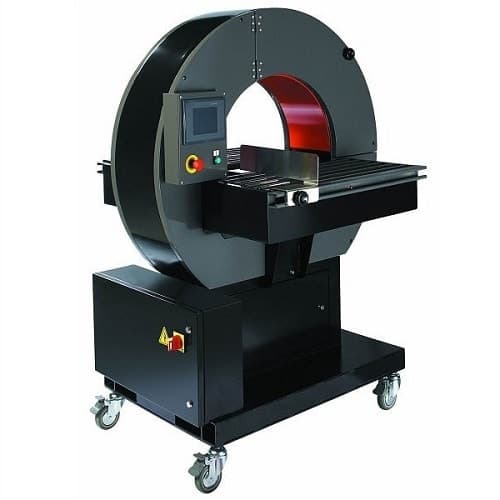

S300 Semiautomatic Horizontal Orbital Stretch Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Frequently Asked Questions

Common questions about S300 Semiautomatic Horizontal Orbital Stretch Wrapping Machine and our services.

Q:What is the lead time for the S300 Semiautomatic Horizontal Orbital Stretch Wrapping Machine?

Our standard manufacturing lead time for the S300 Semiautomatic Horizontal Orbital Stretch Wrapping Machine is typically 2-4 weeks, depending on customization requirements and current production capacity. Please contact our sales team for a precise timeline.

Q:Does the S300 Semiautomatic Horizontal Orbital Stretch Wrapping Machine support custom voltage requirements?

Yes, as a factory-direct manufacturer, we can customize the electrical system of the Semiauto horizontal wrapper to match your local voltage standards (e.g., 220V/380V/415V/440V, 50Hz/60Hz).

Q:What kind of after-sales support is provided for this machine?

We provide comprehensive after-sales support including remote technical assistance, video installation guides, and a 12-month warranty on core components. Spare parts are available for global shipping.

Q:Can this machine be integrated into an existing packing line?

Absolutely. The S300 Semiautomatic Horizontal Orbital Stretch Wrapping Machine is designed with flexible PLC controls and conveyor interfaces, making it suitable for both standalone operation and integration into automated packaging lines.
