E400 Horizontal Stretch Wrapping Machine

Name: E400 Horizontal Stretch Wrapping Machine
Brand: Industrial Solutions
SKU: 97
Availability: InStock

Model:97

Discover the Horizontal Ring Stretch Wrapping Machine & Orbital Wrapper, designed for efficient and safe packaging of oversized loads with adjustable features and PLC control.

Key Specifications

Bundle Outer Diameter:100-400 mm

Weight Capacity:15-100 kg

Speed:6-12 m/min

Ring Speed:20-90 r/min

Wrapping Speed:5-25 m/min

Power Output:Approximately 2.5 kW

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The Horizontal Ring Stretch Wrapping Machine & Orbital Wrapper is engineered for robust industrial packaging, offering automatic and semi-automatic options to secure oversized or oddly shaped loads. It features a stable wrapping station with adjustable ring speed and friction, a conveyor system for smooth product handling, and a PLC control system for precise operation. With capabilities for unmanned operation and environmental compliance, this machine ensures high efficiency and safety in packaging processes.

Key Benefits

Adjustable ring speed and friction for customized wrapping
PLC control system with automatic trouble indication
Automatic conveyor system with soft connections for product protection
Unmanned operation with automatic material feeding and cutting
Safety features including guardrails and adjustable overlapping

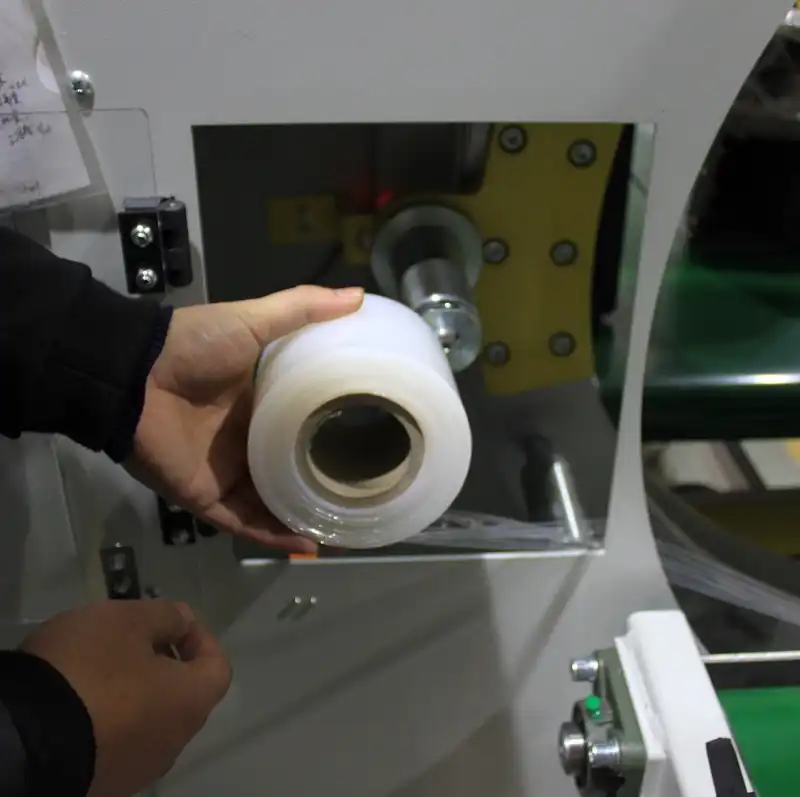

E400 Horizontal Stretch Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Bundle Length	>1200 mm
In- Feeding Conveyor Length	2000 mm with motor
Out- Feeding Conveyor Length	2000 mm with motor
Power Voltage	380V, 3PH, 60Hz
Packing Material	Polyethylene foil/paper/PP/Woven, OD: 100-200 mm, Width: 100-200 mm, ID: 50/76 mm
Effective Working Hours Per Year	7200 h

Frequently Asked Questions

Common questions about E400 Horizontal Stretch Wrapping Machine and our services.

Q:What types of loads can this machine handle?

This machine is designed for oversized, oddly shaped, and palletized loads, with a weight capacity of 15-100 kg and bundle outer diameter of 100-400 mm.

Q:Is the machine easy to operate?

Yes, non-technical or technical personnel can be trained to operate the machine safely in one hour or less, thanks to its user-friendly interface and separate control panel.

Q:What safety features are included?

Safety features include a protect guardrail, adjustable overlapping from 10%-90%, and automatic trouble indication with alarms to ensure safe operation.
