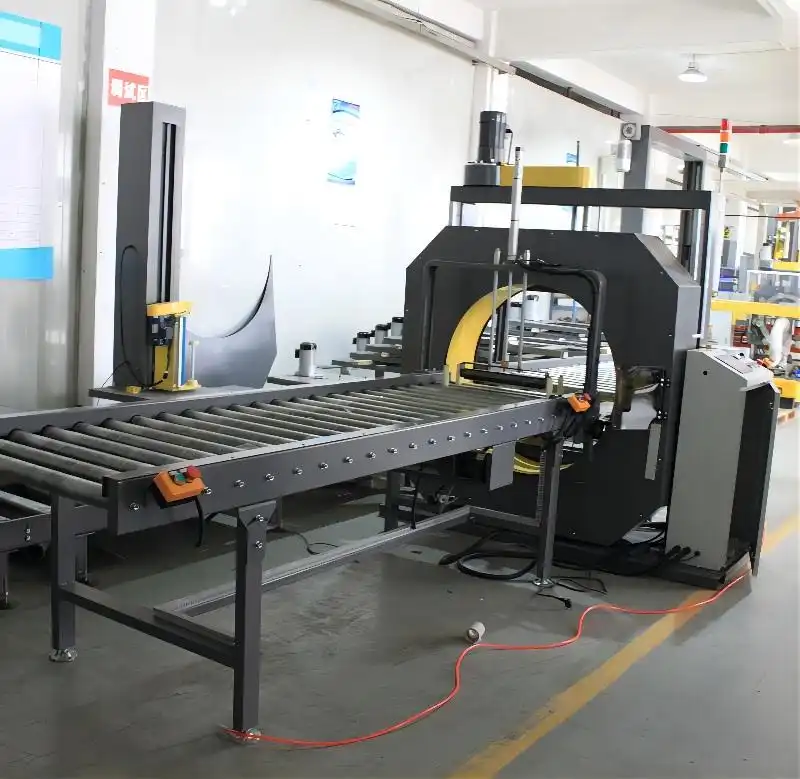

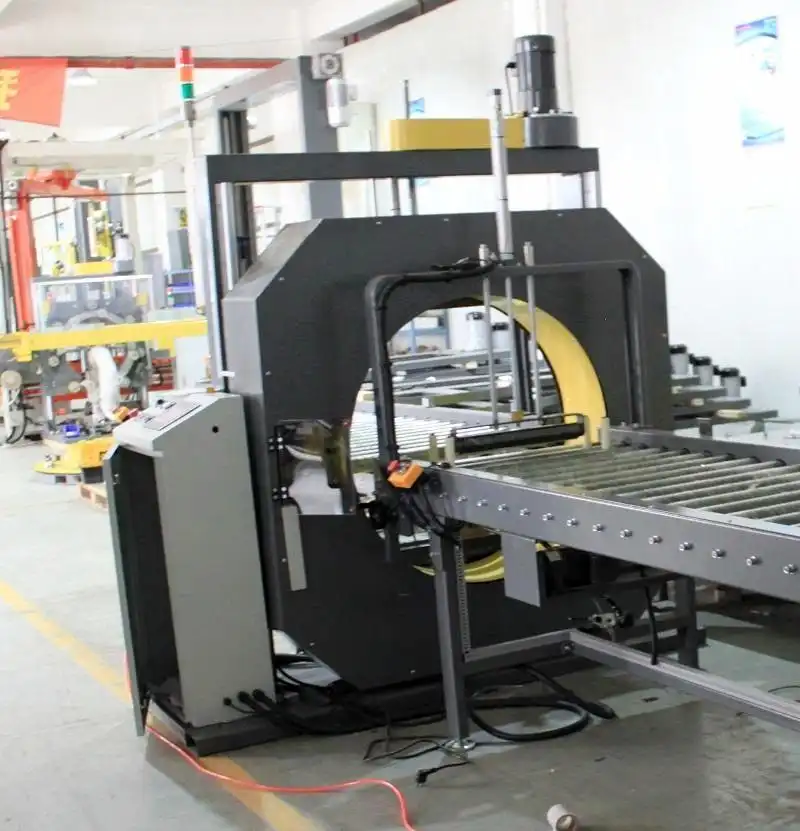

E600 Horizontal Spiral Stretch Wrapping Machine
High-performance spiral wrapping machine for load protection and cost reduction. Features adjustable speed, PLC control, and optional scales for ERP integration. Ideal for B2B packaging.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The Spiral Wrapping Machine provides film packaging for load protection, dramatically cutting transportation costs by passing each load through the wrapping station. It ensures quality and secure freight, with optional integrated scales for data sharing with ERP systems during simultaneous wrapping and weighing.
Adjustable packing speed offers flexibility for different packaging needs, accommodating future production changes.
Key Benefits
- Spiral ring turning for precise film application on packages
- High-speed ring rotation with a strong, stable structure for safety and energy efficiency
- Adjustable friction between driving wheels and ring for optimal performance
- Ring speed adjustable by inverters with soft start and stop modes
- Sensor for automatic wrapping position reset and adjustable packing material tension
- Protection shield covering machinery for safe operation
- Adjustable overlapping from 10% to 90% and customizable wrapping start/stop points
- Touch screen interface for easy adjustment of relative figures and parameters
- Conveyor system with motor-driven speed adjustment and sensors for movement checking
- PLC and HMI control system for automation and user-friendly operation
- Press down devices with soft materials for product protection and adjustable action times
- Optional special tension control carriage for consistent wrapping on various package sizes

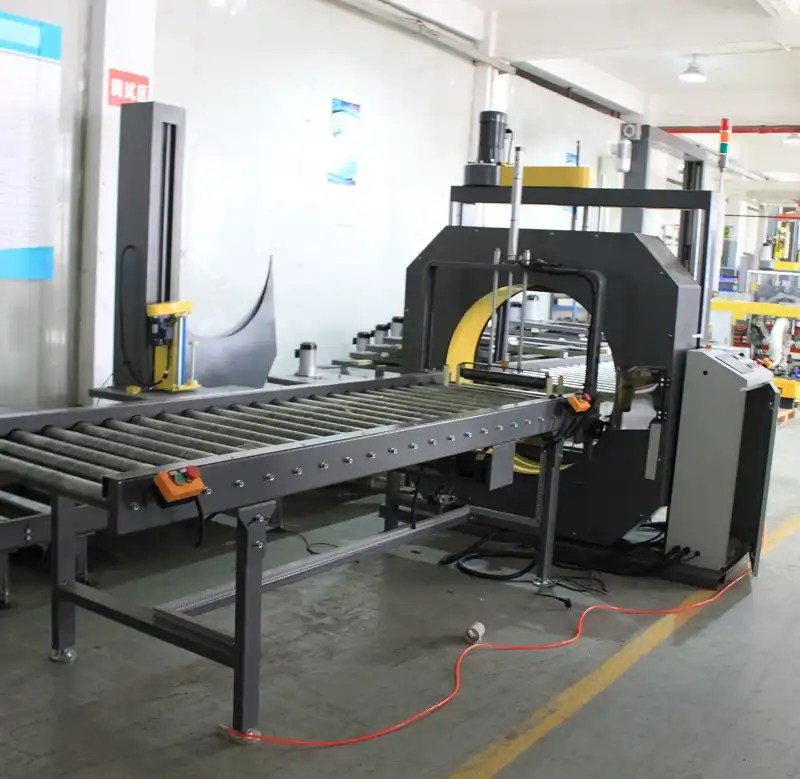

E600 Horizontal Spiral Stretch Wrapping Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Object Size | Length: >800mm, Bundle OD: 200-600mm, Weight: 20-200kg |
| Infeed Conveyor | 2000mm L × 800mm W |
| Outfeed Conveyor | 2000mm L × 800mm W |
| Material | LLDPE stretch film/Paper/Woven, Width: 150-300mm, OD: 100-250mm, ID: 50mm (customized available) |
| Air Supply | 5~8 kgf/cm² |
Frequently Asked Questions
Common questions about E600 Horizontal Spiral Stretch Wrapping Machine and our services.
Q:What are the key benefits of using this spiral wrapping machine?
Q:Can this machine integrate with ERP systems?
Q:What types of materials can be used with this wrapping machine?
