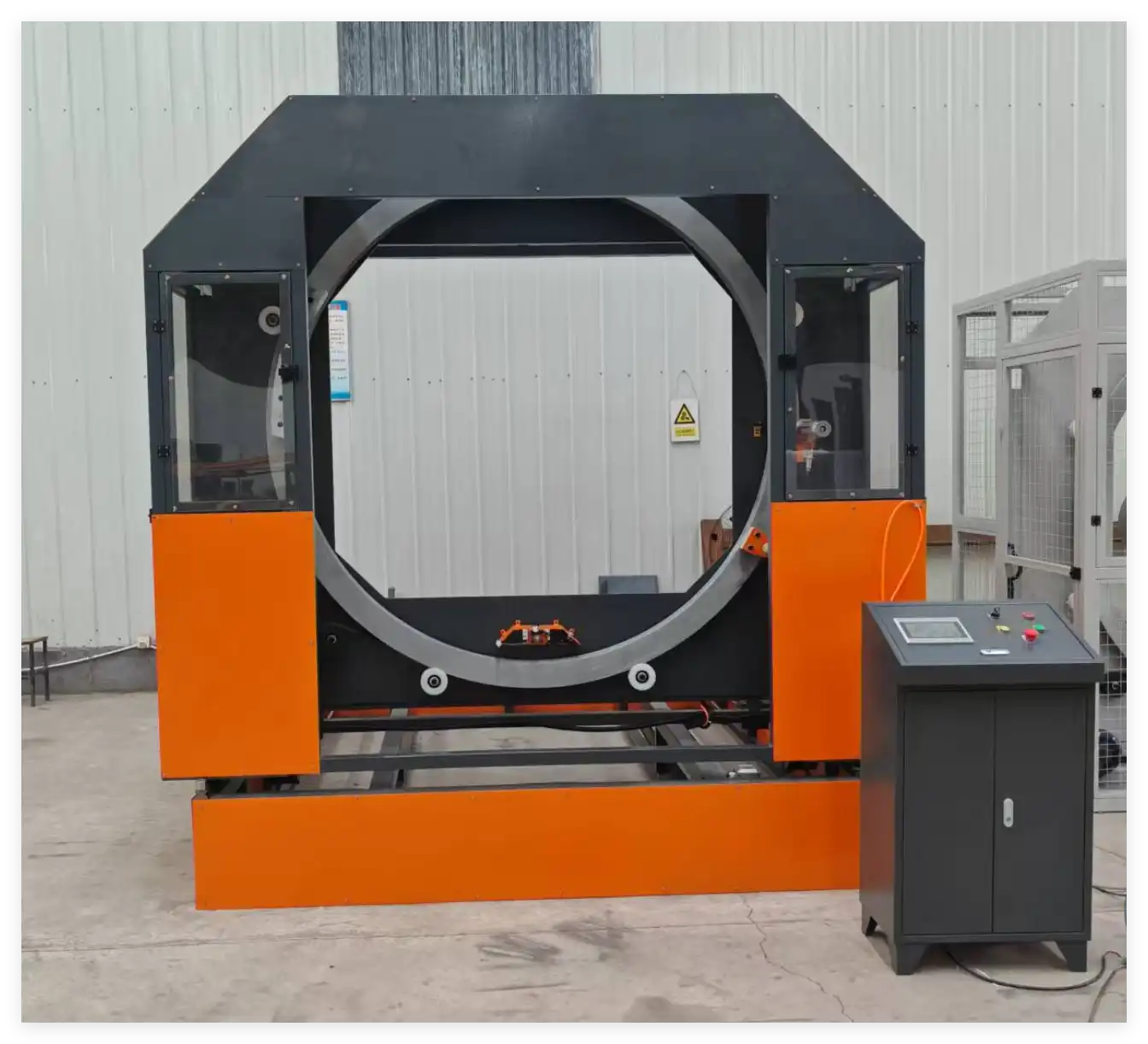

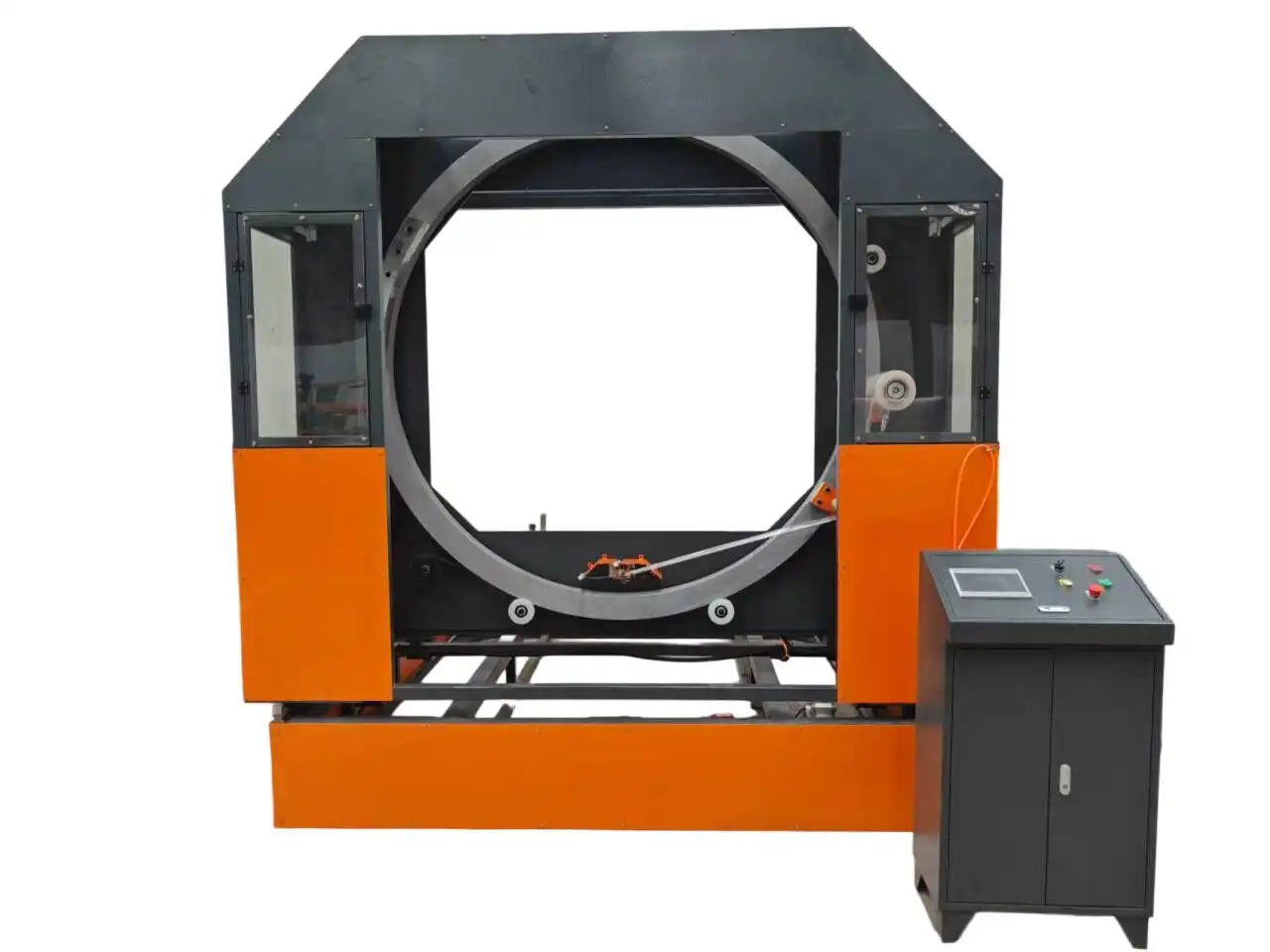

Mobile Horizontal Orbital Pallet Wrapper
Discover the Mobile Horizontal Stretch Wrapper, featuring adjustable ring speed, automatic film cutting, and PLC control for stable, efficient packaging of large objects up to 1000kg.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The Mobile Horizontal Stretch Wrapper is designed for efficient and stable packaging of large objects. It is equipped with advanced features such as adjustable ring speed, automatic film cutting, and adjustable packing material tension, making it suitable for various packaging needs across different industries.
This machine offers powerful automation features, adjustable wrapping parameters, and a high level of safety for various industrial packaging needs. Whether handling diverse materials or requiring flexibility in operation, this machine is an ideal solution for modern packaging production lines.
Key Benefits
- Reinforced aluminum cast ring for stable wrapping performance
- Four-ring and double-PU wheel devices improve safety and energy efficiency
- High-strength main frame enhances wrapping stability
- Adjustable friction between drive wheels and ring for stable operation
- Adjustable ring speed via inverter for different packaging needs
- Soft start function prevents mechanical damage during startup
- Automatic resetting of wrapping position sensor ensures accuracy
- Adjustable tension of packaging material for optimal wrapping
- Protective shield covers machinery for safe operation
- Moveable trolley with automatic left and right movement for flexible wrapping
- Adjustable trolley speed via inverter for versatile use
- Sensor detection triggers automatic wrapping actions for precision
- Fully enclosed protective shield on trolley for safety
- PLC control system for fully automated operation with adjustable parameters
- Photocell sensor for setting and adjusting wrapping position
- Automatic alarm for troubles with touchscreen and indicator lights
- Touchscreen control for adjusting ring and conveyor speeds
- Adjustable start and stop points on touchscreen for precise packaging
- Automatic film cutter and holder for efficient material handling
- Automatic material feeding and cutting for streamlined operation
- Automatic material clamping for next wrapping cycle
- Sensor and PLC control for film feeding and cutting
- Adjustable operational parameters to fit different materials

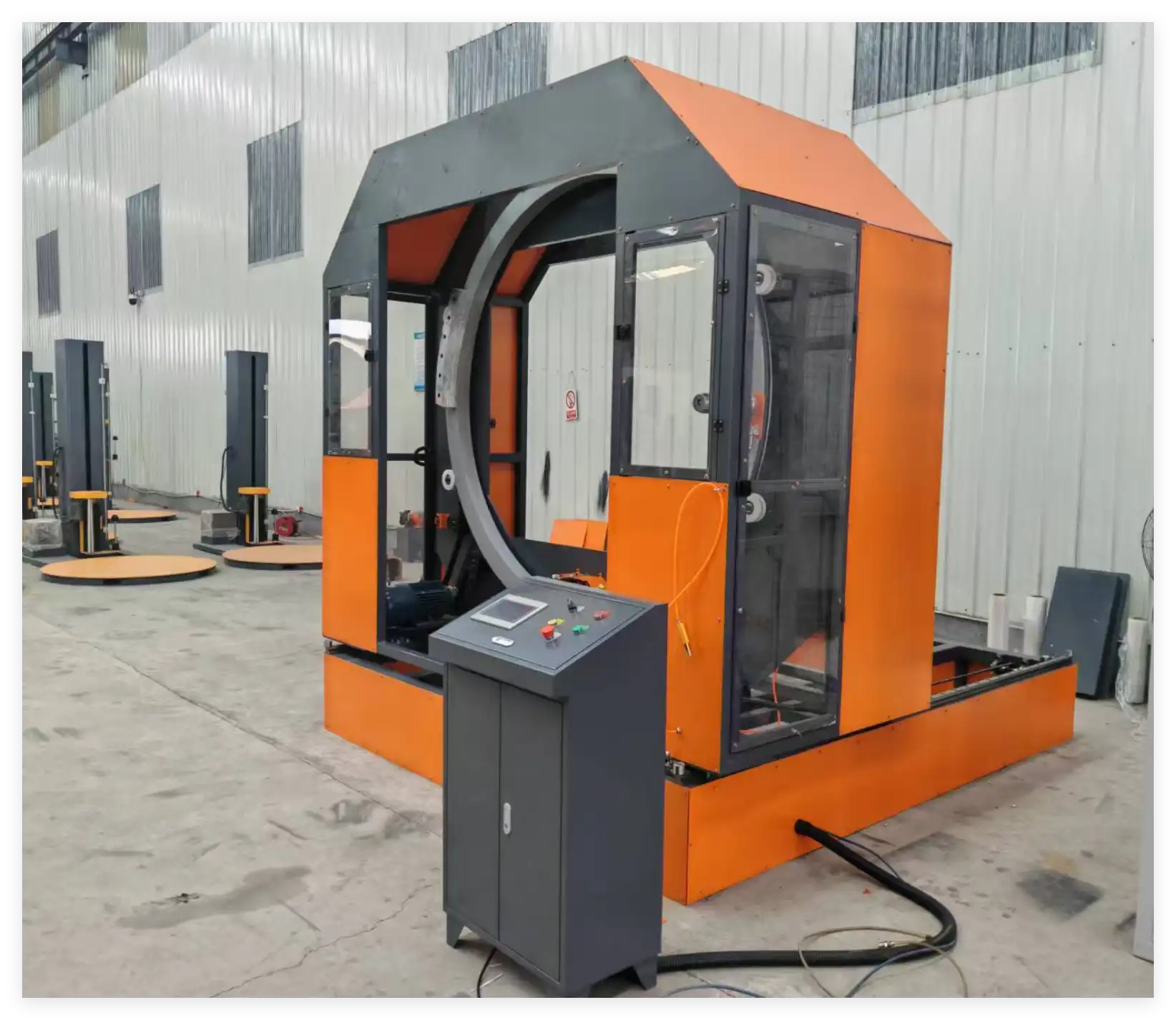

Mobile Horizontal Orbital Pallet Wrapper Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Object Size ( Pallet) | Length: 1200mm, Width: 1200mm, Height: 900mm |
| Packing Materials | HDPE Film / PE Stretch Film |
| Film O D | 100-250 mm |
| Film I D | 76 mm |
| Air Supply Pressure | 5-8 kgf/cm² |
| Power Voltage | AC 415V, 50Hz, 3 Phase |
| Control Power Voltage | DC 24V |
