E200 Horizontal Spiral Stretch Wrapping Machine

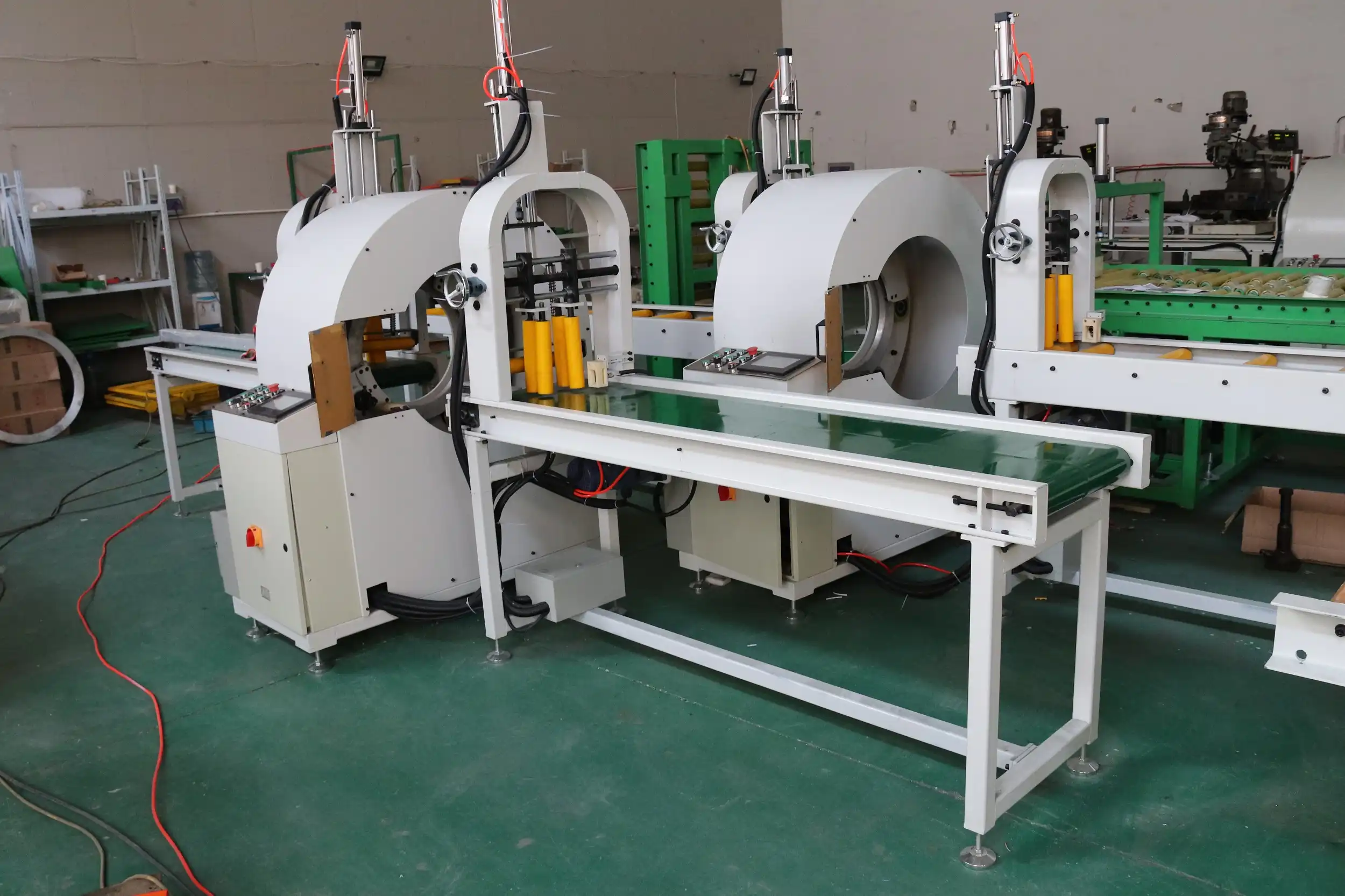

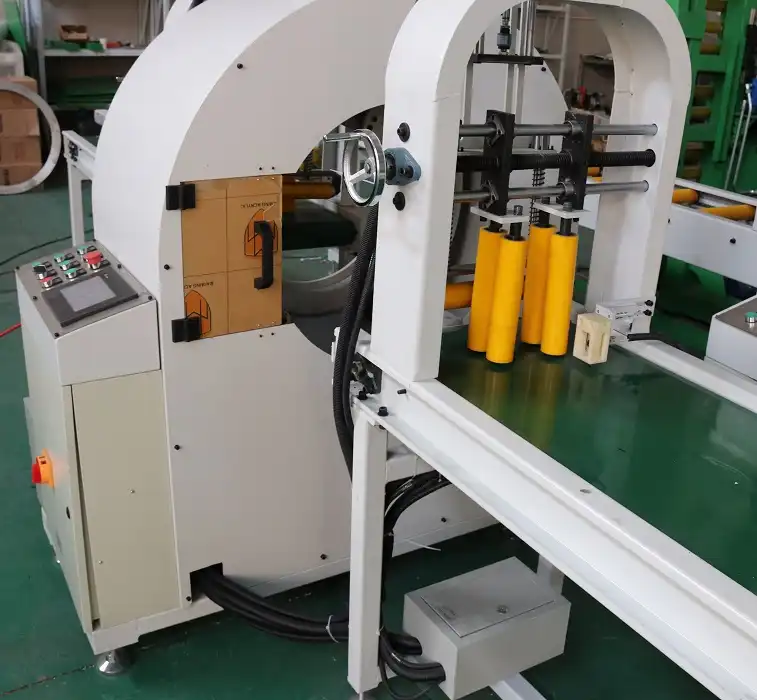

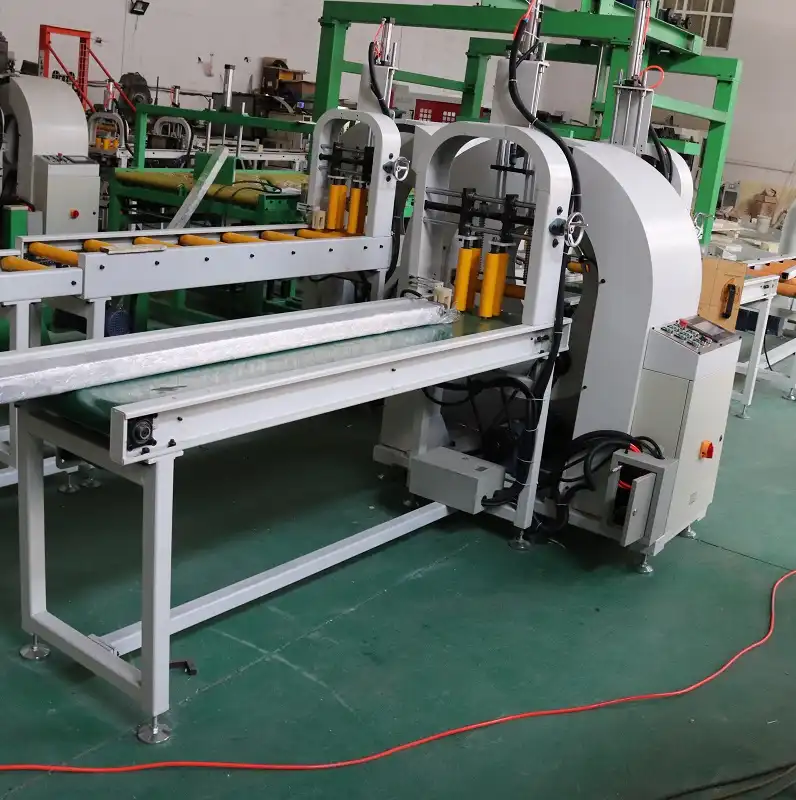

The horizontal orbital stretch wrapper is a rotating ring machine designed for spiral wrapping of elongated products such as timber and aluminum. It includes electro-welded mesh safety guards to ensure operator protection during operation.

This machine offers a durable ring and strong structure for long-term use, with special driving wheels for smooth ring turning. The wrapping ring speed is adjustable from 10-120 r/min, featuring soft start and stop functions, automatic reset of wrapping position, and good tension control for various object sizes.

Equipped with an automatic conveyor system, it protects product surfaces and includes adjustment functions, motor-driven conveyors with gear boxes, and speed control via inverter. The PLC control system enables automatic wrapping based on packing goals, with photocell sensors for position setting, indicator alarms for troubleshooting, and a separate control panel for easy operation and maintenance.

Additional features include an automatic cutter and feeder for unmanned operation, and the machine supports various packing materials like polyethylene or stretch film. Technical parameters include package OD of 50-200mm, length >1000mm, weight capacity of 8-100kg, and power options such as 380V, 3PH, 60Hz.
