E1000 Horizontal Spiral Stretch Wrapping Machine
Discover the orbital ring stretch wrapper and film wrapping machine for efficient, cost-effective packaging. Features adjustable speed, PLC control, and robust design for bundles, boxes, and trays.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The orbital ring stretch wrapper and film wrapping machine is designed to reduce labor costs and improve wrapping speed through lightweight construction and sustainability initiatives. This ring-type stretch wrapper provides excellent protection for loads without crushing or damaging goods, making it suitable for bundle, box, tray, and profile package applications. It incorporates upgrade technology to meet specific load specifications and features.
The automatic ring stretch wrapper allows operators to stay clear of moving parts during wrapping, saving time, lowering labor costs, and reducing operational risks.
Key Benefits
- Reinforced aluminum ring with up to 60mm width for durability and long life
- Motor with gear for strong power and adjustable ring speed via inverters
- Easy integration and startup without re-installation after shipping
- Adjustable friction on ring and driving wheels for customization
- Soft start, jog, and automatic reset sensor for wrapping position
- Easy reloading and tension adjustment for different package sizes
- Compatibility with various packing materials like LLDPE film, paper, and woven
- Protection shield covering machinery for safe operation
- Overlapping rate adjustable from 10% to 90%
- Touch screen for packaging data setting and user-friendly operation
- Automatic infeed and outfeed conveyor systems with adjustable speeds
- Sensor detection for object operation and customizable conveyor designs
- Automatic mechanical hand with heat or knife cutting options
- PLC and HMI control system with IoT monitoring for troubleshooting
- Adjustable press down devices for product stability and protection
- Optional special tension control carriage for strong, tight packaging

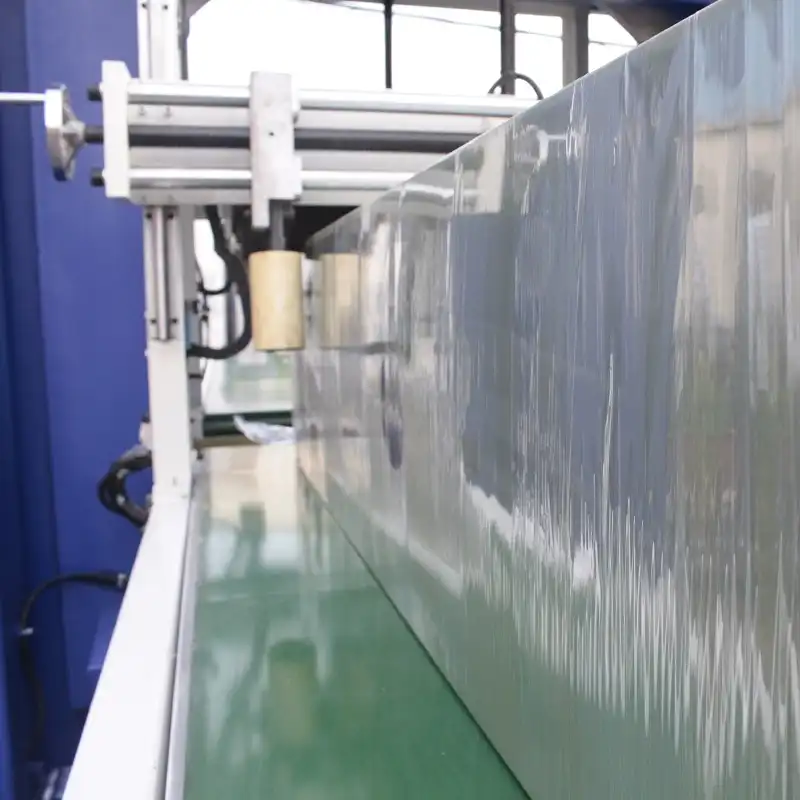

E1000 Horizontal Spiral Stretch Wrapping Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Object Size | Length: >1000mm, Bundle OD: 400-1000mm, Weight: 50-400kg |
| Infeed Conveyor | 2000mm L × 1200mm W |
| Outfeed Conveyor | 2000mm L × 800mm W |
| Material | LLDPE stretch film, Paper, Woven; Width: 100-500mm, OD: 100-250mm, ID: 50mm |
| Air Supply | 5-8 kgf/cm² |
| Machine Size | Approximately L4800 × W1800 × H2000mm |
Frequently Asked Questions
Common questions about E1000 Horizontal Spiral Stretch Wrapping Machine and our services.
Q:What types of packages is this orbital ring stretch wrapper suitable for?
Q:How does the machine ensure safe operation?
Q:Can the wrapping speed and tension be adjusted?
Q:What control systems are included?
Q:What are the power requirements for this machine?
