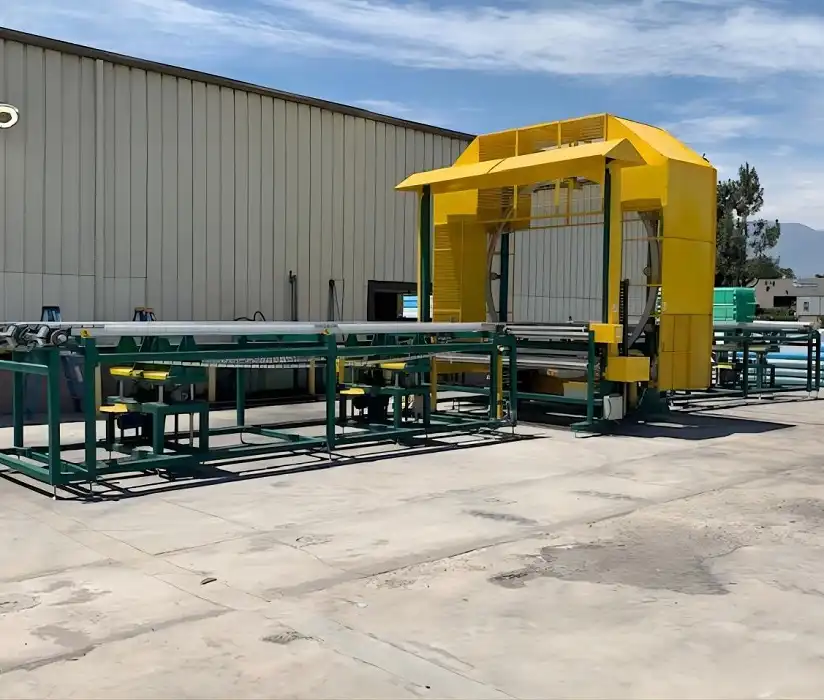

E2400 Horizontal Orbital Stretch Wrapping Machine

Name: E2400 Horizontal Orbital Stretch Wrapping Machine
Brand: Industrial Solutions
SKU: 103
Availability: InStock

Model:103

Industrial-grade horizontal orbital stretch wrapper for furniture, pallets, and panels. Features PLC control, safety systems, and customizable solutions for secure packaging.

Key Specifications

Width:900-2200mm

Load Outer Diameter:<2400mm

Speed:4-15 m/min

Ring Speed:10-40 r/min

Power Output:Approximately 7.5 kW

Power Voltage:AC 380V, 60Hz, 3 Phase

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This big horizontal orbital stretch wrapper is designed for handling loads with an outer diameter less than 2000mm, specializing in packaging horizontal shapes such as wood sheet bundles, pallet loads, panel bundles, furniture, and floor boards. It offers customized solutions to achieve well-protected and sealed products with a tidy appearance. The machine features a PLC program control system, enabling automatic wrapping and integration with packing lines.

Key Benefits

PLC and HMI control system for automatic operation and easy maintenance
Safety features including guardrails, covers, and light curtains for secure operation
Adjustable wrapping ring speed and overlapping from 10% to 90%
Conveyor system with height adjustment and customizable options
Automatic mechanical hand for non-stop wrapping with film clamping and cutting

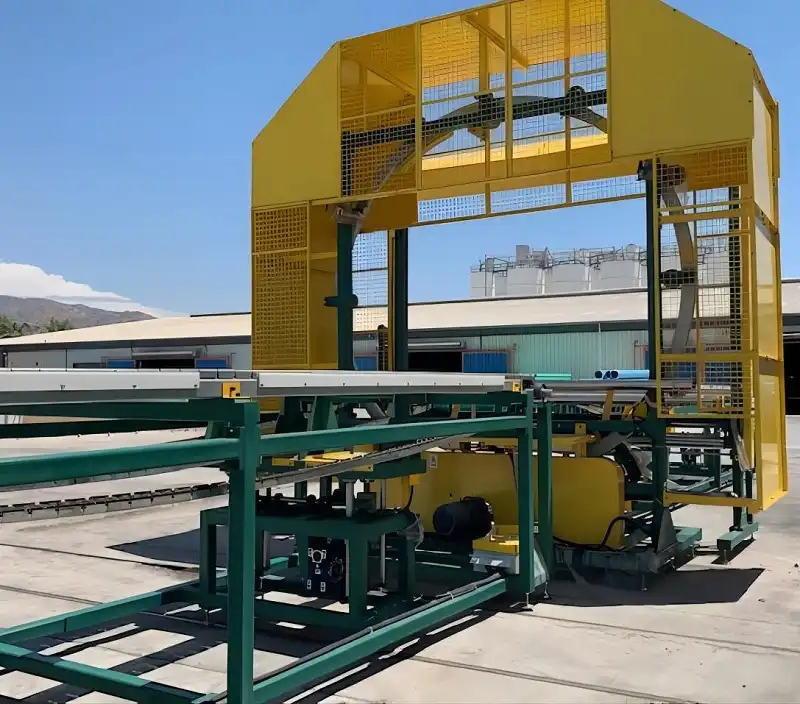

E2400 Horizontal Orbital Stretch Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Length	>1800mm
Height	200-2200mm
Entrance Conveyor Length	2500mm
Outlet Conveyor Length	2500mm
Material	LLDPE stretch film/PE film/PVC, Width: 300/500mm, Outer Diameter: 100-250mm, Inner Diameter: 50/76mm

Frequently Asked Questions

Common questions about E2400 Horizontal Orbital Stretch Wrapping Machine and our services.

Q:What types of products can this stretch wrapper handle?

This machine is specialized for horizontal shapes such as wood sheet bundles, pallet loads, panel bundles, furniture, and floor boards, with a load outer diameter less than 2400mm.

Q:What safety features are included?

It includes safety light curtains, emergency stops, interlocked guards, protect guardrails, and safety covers, compliant with CE machinery directives for zero operator risk.

Q:Is the machine customizable for different packaging needs?

Yes, customized solutions are available, including adjustable conveyor systems, wrapping parameters, and integration with packing lines to meet specific packaging goals.
