E500 Series Orbital Horizontal Stretch Wrapping System

Name: E500 Series Orbital Horizontal Stretch Wrapping System
Brand: Industrial Solutions
SKU: 98
Availability: InStock

Model:98

Automatic horizontal stretch film machine with bubble film wrapper for secure packaging of long-shaped items. Features HMI control, adjustable speeds, and CE safety standards. Ideal for industrial use.

Key Specifications

Material Width:150-300mm

Conveyor Speed:3-12 m/min

Ring Speed:Approximately 10-60 r/min

Power Output:About 4.5 kW

Power Voltage:AC 380V, 50Hz, 3 Phase

Control Power Voltage:ADC24

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

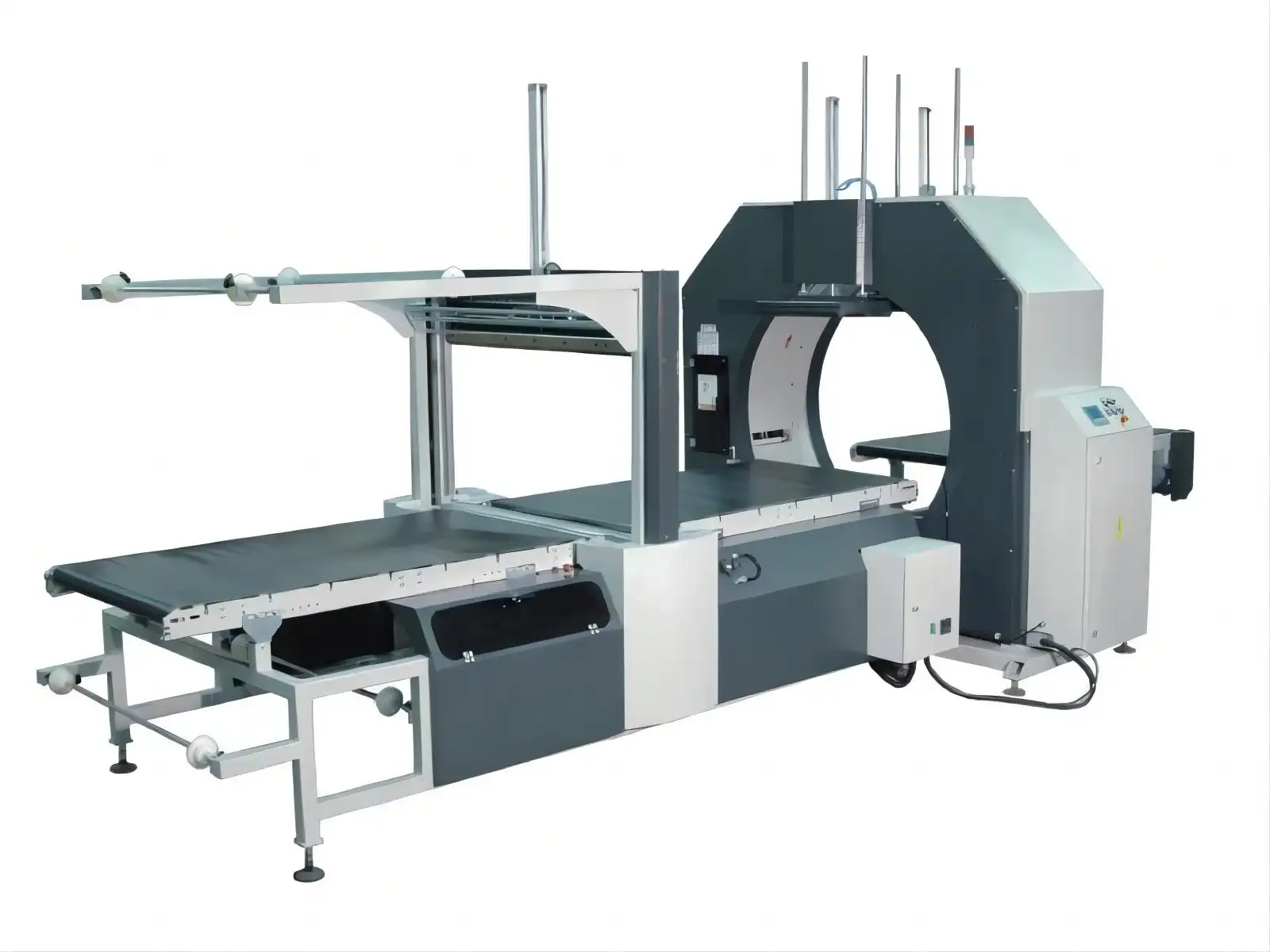

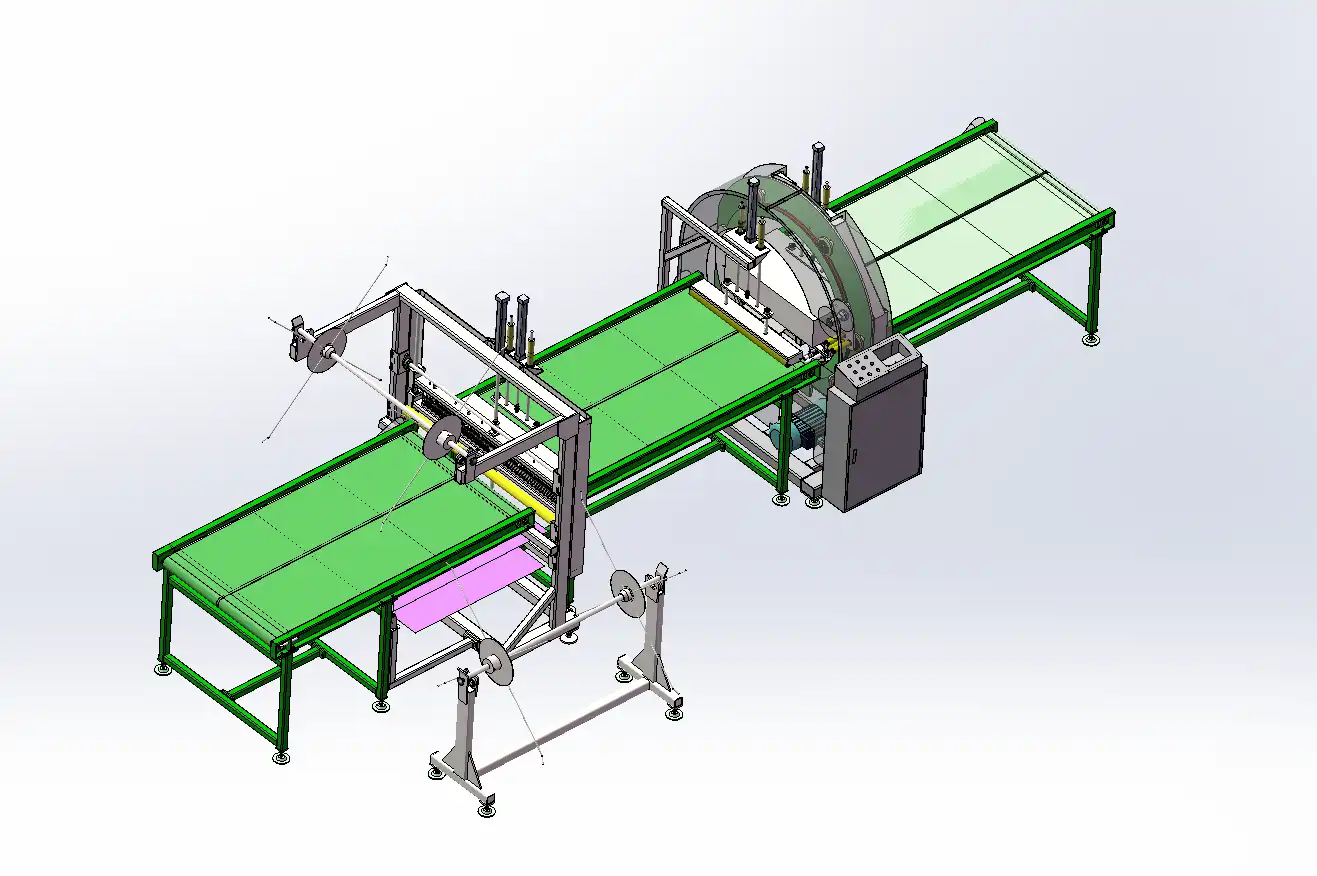

This is an automatic bubble film covering and film wrapping orbital horizontal stretch wrapper. The machine includes a bubble film covering device and film sealer for fully covered wrapping of long-shaped packages. It features an HMI control panel for easy parameter setting and packing speed control, with an automatic sealer for PE and HDPE films. Designed for applications like wooden board wrapping, it offers reliable and efficient packaging solutions.

Key Benefits

Ring type wrapper for 360-degree turning with adjustable ring speed via inverters

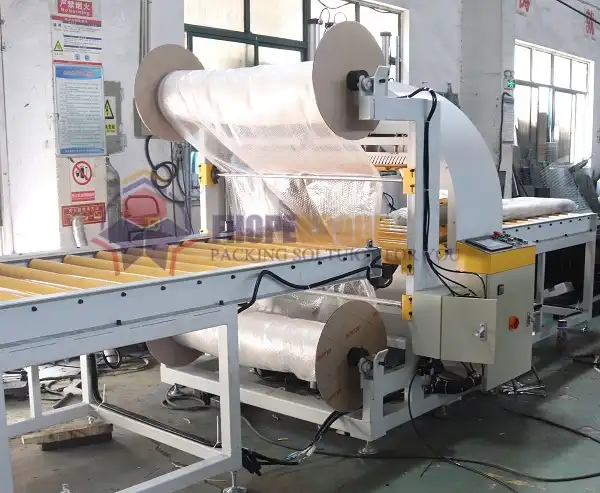

Automatic film application and material feeding with bubble film dispenser for big roll OD
CE standard safety mechanical design with protection shields covering moving parts
HMI and PLC control system for easy parameter setting and automatic trouble indication
Adjustable conveyor speeds and packing material tension for versatile use

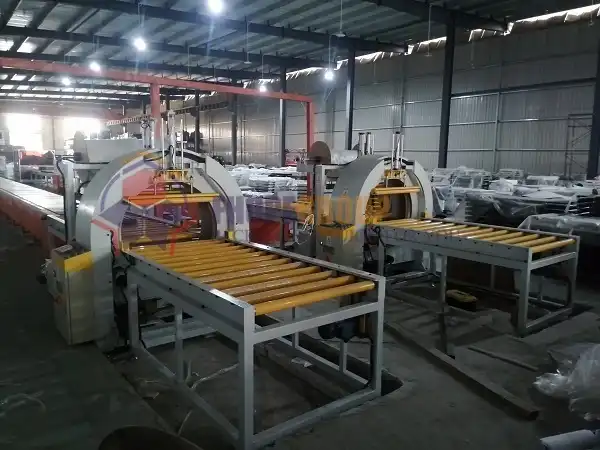

E500 Series Orbital Horizontal Stretch Wrapping System Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Object Size	Length: >1500mm, Bundle OD: 200-500mm, Weight: 50-500kg
Infeed Conveyor	2000mm L × 700mm W
Outfeed Conveyor	2000mm L × 700mm W
Material	LLDPE stretch film/Paper/Woven, Width: 150-300mm, OD: 100-250mm, ID: 50mm
Air Supply	5-8 kgf/cm²
Machine Size	Approximately L5200 × W1600 × H1800mm

Frequently Asked Questions

Common questions about E500 Series Orbital Horizontal Stretch Wrapping System and our services.

Q:What types of materials can this machine wrap?

This machine can wrap long-shaped packages using materials such as LLDPE stretch film, paper, or woven fabrics, with adjustable widths from 150-300mm.

Q:Is the machine safe to operate?

Yes, it features CE standard safety mechanical design with protection shields covering all moving parts, ensuring safe operation in industrial environments.

Q:How is the machine controlled?

It uses a PLC and HMI control system, allowing for easy parameter setting on a touch screen, automatic wrapping, and trouble indication for efficient operation.
