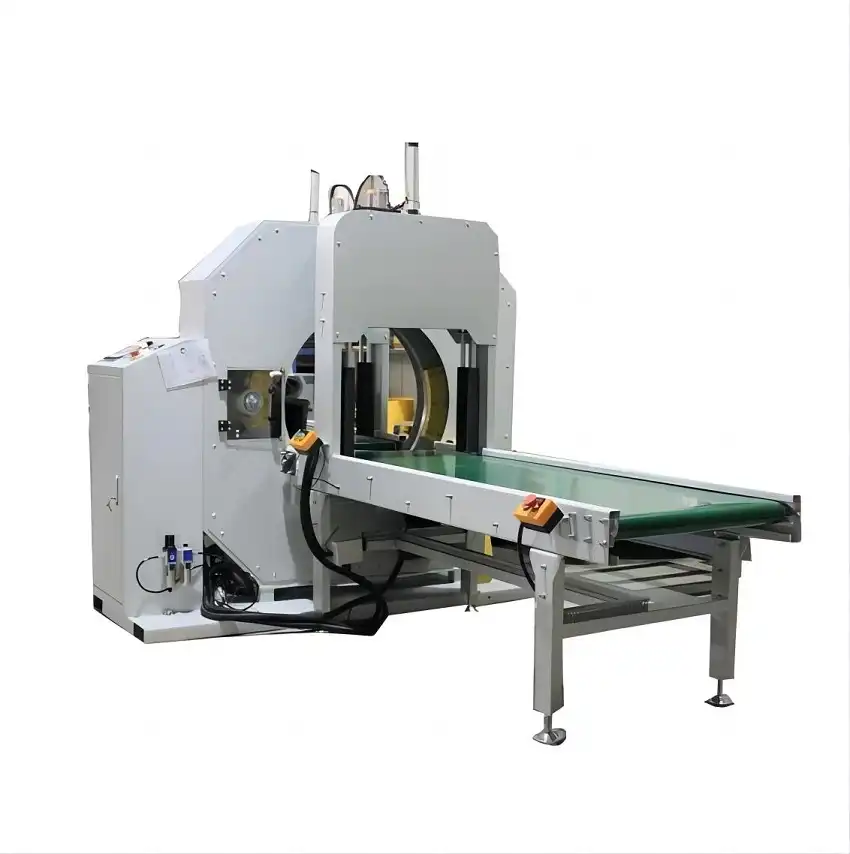

E300 Horizontal Orbital Stretch Wrapping Machine

Name: E300 Horizontal Orbital Stretch Wrapping Machine
Brand: Industrial Solutions
SKU: 96
Availability: InStock

Model:96

The 3E300 horizontal orbital stretch wrapper securely wraps pipes, tubes, and profiles with automatic features, PLC control, and adjustable settings for efficient industrial packaging.

Key Specifications

Bundle Outer Diameter:100-300 mm

Weight:15-100 kg

Speed:6-12 m/min

Ring Speed:20-90 r/min

Wrapping Speed:5-15 m/min

Power Output:Approximately 2.5 kW

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The 3E300 is an automatic horizontal orbital stretch wrapper designed for horizontal shapes such as pipes, sheets, doors, floor boards, and aluminum profiles. It provides well-protected, sealed, and tidy packaging and can be integrated into packing lines for automated operation.

Key Benefits

Ring and double-rub wheel devices ensure safe, stable, and energetic operation
Adjustable friction between driving wheels and ring for optimal performance
Ring speed adjustable by inverter with soft start and reset functions
Packing material tension and overlapping adjustable from 10% to 90%
Protective guardrail for safe operation and wide material adoption
Conveyor system with automatic entrance and outlet, adjustable speed, and surface protection

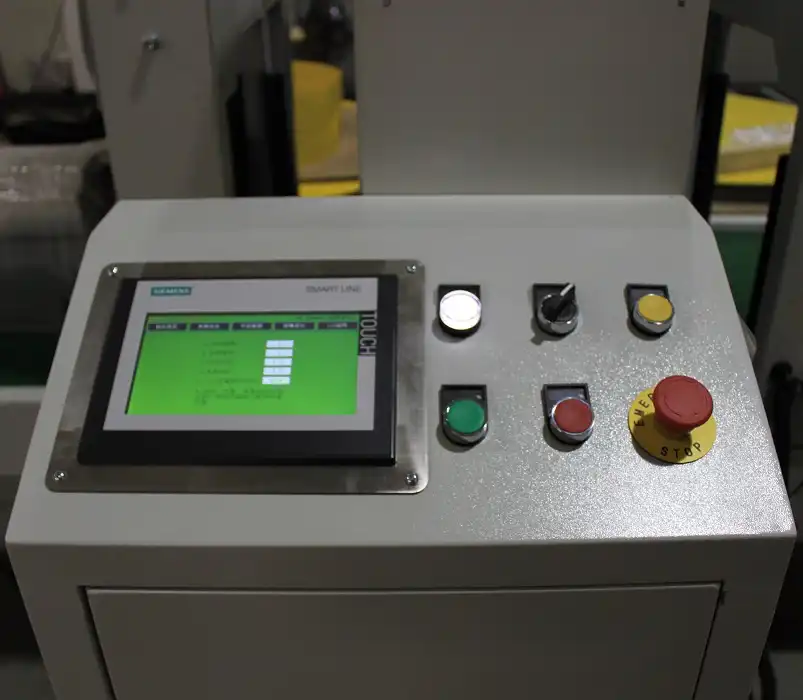

PLC control system with photocell sensors, indicator alarms, and separate control panel

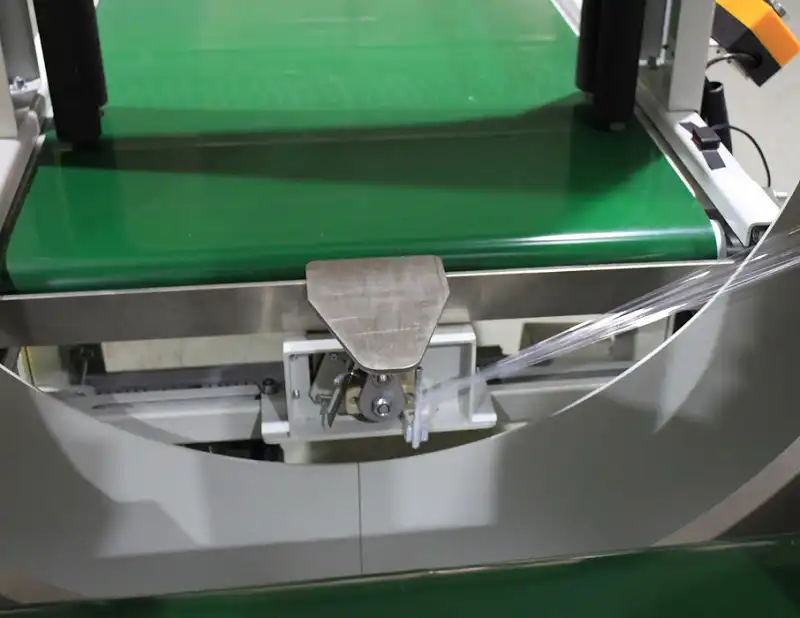

Automatic cutter and feeder for unmanned operation and material handling

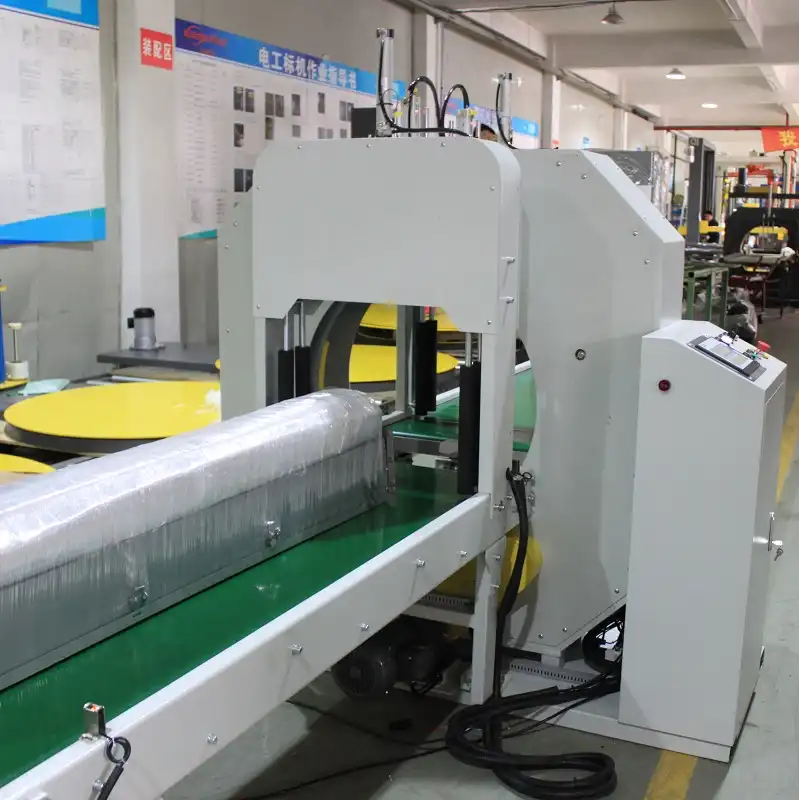

E300 Horizontal Orbital Stretch Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Bundle Length	>1000 mm
In- Feeding Conveyor Length	2000 mm with motor
Out- Feeding Conveyor Length	2000 mm with motor
Power Voltage	380V, 3PH, 60Hz
Packing Material	Polyethylene foil, OD: 100-200 mm, Width: 100-200 mm, ID: 50 mm

Frequently Asked Questions

Common questions about E300 Horizontal Orbital Stretch Wrapping Machine and our services.

Q:What types of products can the 3E300 horizontal stretch wrapper handle?

The 3E300 is specialized for horizontal shapes such as pipes, tubes, sheets, doors, floor boards, and aluminum profiles, making it ideal for various industrial applications.

Q:Can this machine be integrated into an automated packing line?

Yes, the 3E300 can be connected to packing lines for automatic wrapping, featuring conveyor systems and PLC controls for seamless integration.

Q:What safety features does the 3E300 include?

It includes a protective guardrail, adjustable safety settings, and stable operation mechanisms like ring and double-rub wheel devices to ensure safe use.
