SK-080E Automatic Sleeve Shrinking Machine

Name: SK-080E Automatic Sleeve Shrinking Machine
Brand: Industrial Solutions
SKU: 686
Availability: InStock

Model:686

Discover the SK-080E sleeve shrinking machine, an automatic packaging solution for long products. Features Siemens PLC, bottom lap sealing, and high-speed operation for efficient B2B industrial use.

Key Specifications

Power Supply:380V/50-60Hz/3phase

Packing Capacity:Depends on product length

Power Consumption:Max. 22kw

Weight:1200kg

Model:SK-080E

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

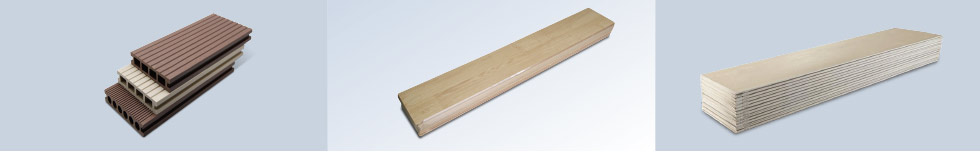

The SK-080E sleeve shrinking machine is a specialized packaging solution designed for floor, rectangular tube, and other long-shaped products. It utilizes a bottom lap sealing method to fully wrap products, with automatic processes including in-feed, wrapping, sealing, shrinking, and cooling. Built with world-leading technology and craftsmanship, this machine ensures reliability and safety for industrial applications.

Key Benefits

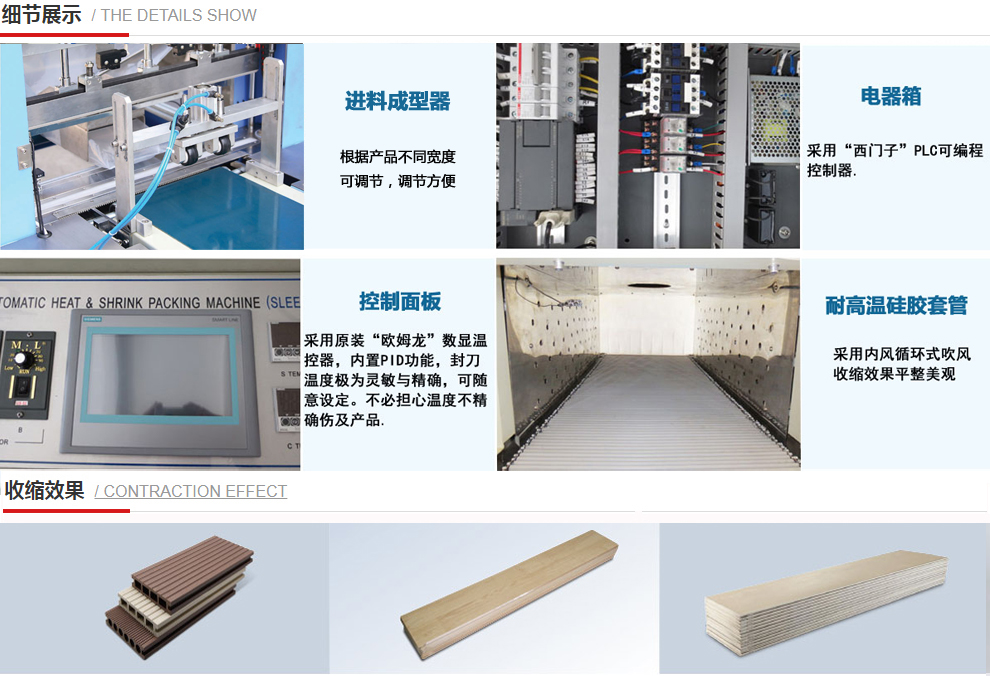

Utilizes Siemens PLC and programmable controllers for integrated electrical, mechanical, and pneumatic systems
Features a bottom lap sealing method with a durable U-shaped alloyed sealing knife and Teflon coating to prevent sticking
Equipped with a double wind engine for even heat distribution, ensuring high-quality shrinked packages
Includes a strong wind cooling system for instant product cooling after heat shrinking
Offers customizable options such as adjustable conveyor sides, color coding systems, and mode designs for flexible operation

SK-080E Automatic Sleeve Shrinking Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Sealing Type	Bottom lap sealing
Product Size	Width + height ≤ 400mm
Sealing Height	≤ 200mm
Conveyor System	Straight conveyor
Film Type	Polyethylene (PE) film
Max Film Size	1000mm (width) x 280mm (outer diameter)
Tunnel Oven Size	Entrance 600(W) x 400(H) mm
Tunnel Conveyor	Chains with silicon coated rods
Working Height	850-900mm
Air Pressure	≤ 0.5MPa (5 bar)
Sealing System	Durable U-shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats
Operating Panel	Siemens colorful touch screen, PLC, Omron temperature controller
Machine Material	Carbon steel

Frequently Asked Questions

Common questions about SK-080E Automatic Sleeve Shrinking Machine and our services.

Q:What types of products can the SK-080E sleeve shrinking machine handle?

The SK-080E is designed for packaging long-shaped products such as floor items, rectangular tubes, and similar items, with a product size limit of width + height ≤ 400mm.

Q:Is the SK-080E machine fully automatic?

Yes, the SK-080E features fully automatic processes including in-feed, wrapping, sealing, shrinking, and cooling, ensuring efficient and consistent packaging operations.

Q:What are the key features of the sealing system in this machine?

The sealing system uses a durable U-shaped alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coating, providing secure seals that are not easy to open and prevent sticking during operation.
