SK-060BBS Fully Automatic Sleeve Shrinking Machine
Discover the SK-060BBS fully automatic sleeve packing machine, designed for carton stacking with Siemens PLC, variable configurations, and high-speed operation up to 18 packs per minute.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description

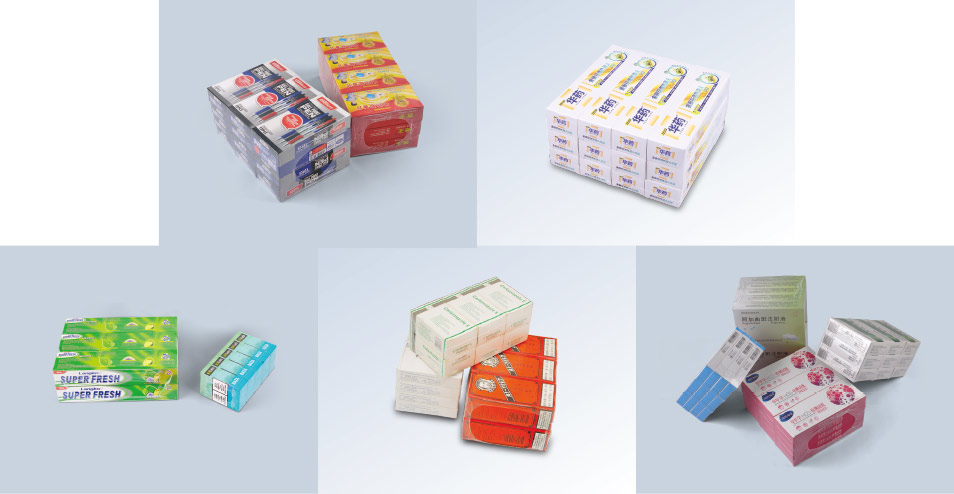

The SK-060BBS fully automatic sleeve packing machine is engineered for carton stacking collective packaging, seamlessly integrating with production lines for automated feeding, wrapping, sealing, shrinking, and cooling without manual intervention. It supports various configurations such as 10 boxes (2*5), 9 boxes (3*3), 12 boxes (3*4), and 15 boxes (3*5), offering flexibility to meet diverse industrial needs.
Key Benefits
- Utilizes Siemens PLC and programmable controllers for integrated electrical, mechanical, and pneumatic systems
- Features a worm gear reducer to eliminate vibration during in-feeding and film feeding
- Equipped with a special sealer with Teflon coating for secure sealing and anti-stick performance
- Includes a double wind engine for even heat distribution, enhancing package appearance
- Offers customizable conveyor materials and side-feeding options based on workspace requirements

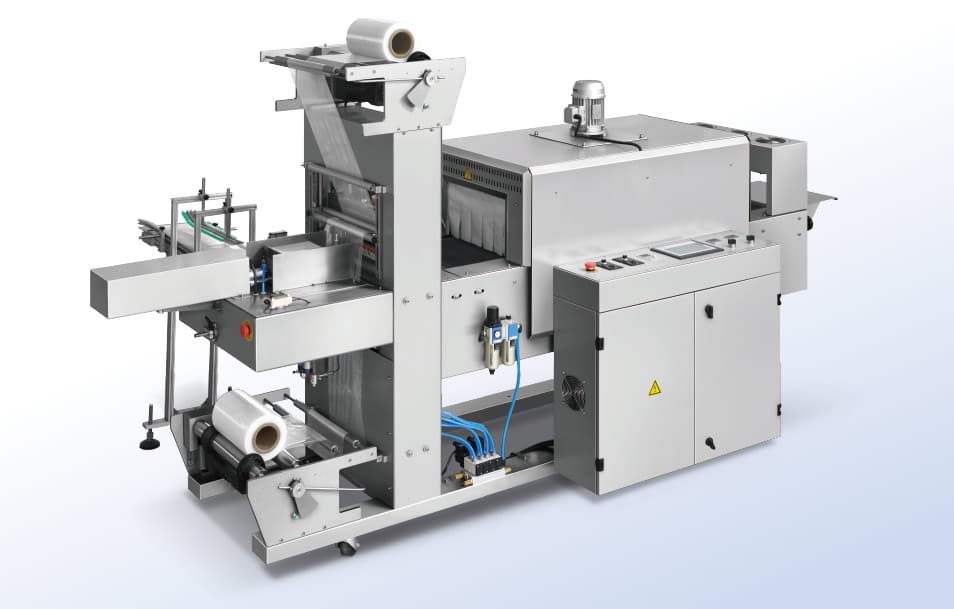

SK-060BBS Fully Automatic Sleeve Shrinking Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SK-600BBS |
| Sealing Type | Sleeve sealing |
| Max Product Size | 280(L) x 180(W) x 150(H)mm |
| Film Type | Polyethylene (PE) film |
| Max Film Size | 350(width) x 280mm(outer diameter) |
| Tunnel Oven Size | Entrance 1040(L) x 355(w) x 220(H)mm |
| Tunnel Conveyor | Steel mesh conveyor, Teflon mesh conveyor, roller conveyor |
| Working Height | 850-900mm |
| Air Pressure | ≤0.5MPa(5 bar) |
| Sealing System | Special durable alloyed sealing knife with anti-stick Teflon coats |
| Operating Panel | Siemens colorful touch screen, PLC, Omron temperature controller |
| Machine Material | Stainless steel |
Frequently Asked Questions
Common questions about SK-060BBS Fully Automatic Sleeve Shrinking Machine and our services.
Q:What is the primary application of the SK-060BBS sleeve packing machine?
Q:Can this machine handle different product configurations?
