SK-060ABS Automatic Sleeve Type Shrink Bundling Machine

Name: SK-060ABS Automatic Sleeve Type Shrink Bundling Machine
Brand: Industrial Solutions
SKU: 678
Availability: InStock

Model:678

Discover the SK-060ABS automatic sleeve-type packing machine for efficient, fully automatic shrink bundling. Features Siemens PLC, high-speed operation, and versatile configurations for B2B packaging solutions.

Key Specifications

Power Supply:380V/50-60Hz/3phase

Packing Capacity:10-20 packs/min

Power Consumption:Max. 8kw

Tunnel Conveyor Speed:Variable

Weight:600kg

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The SK-060ABS automatic sleeve-type packing machine is designed for fully automatic shrink bundling of single products without under support, seamlessly integrating with production lines. It handles feeding, wrapping, sealing, shrinking, and cooling processes without manual assistance, offering various packaging configurations such as 10 bottles (1x10, 2x5), 9 bottles (3x3), 12 bottles (3x4), and 15 bottles (3x5). Built with world-leading technology and craftsmanship, this machine ensures reliability, safety, and high performance for industrial packaging needs.

Key Benefits

Fully automatic operation with feeding, wrapping, sealing, shrinking, and cooling processes
Versatile packaging configurations for multiple product arrangements
Siemens PLC and programmable controller for integrated electrical, mechanical, and pneumatic systems
Special sealer with Teflon coating for secure, non-stick sealing
Double wind engine for even heat distribution and improved package appearance
Adjustable conveyor speed via frequency converters and customizable feeding directions
Strong wind cooling system for instant product cooling post-shrinking
Optional automatic/manual mode and color coding system for flexible operation

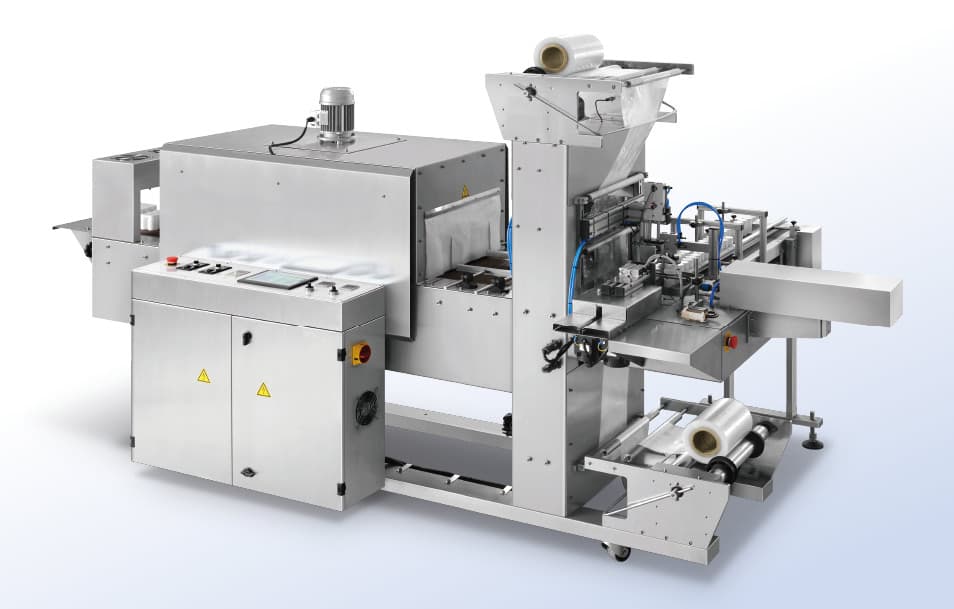

SK-060ABS Automatic Sleeve Type Shrink Bundling Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Model	SK-060ABS
Sealing Type	Sleeve sealing
Max Product Size	280(L) x 180(W) x 150(H)mm
Film Type	Polyethylene (PE) film
Max Film Size	350(width) x 280mm(outer diameter)
Tunnel Oven Size	Entrance 1040(L) x 355(W) x 220(H)mm
Tunnel Conveyor	Steel mesh conveyor, Teflon mesh conveyor, roller conveyor
Working Height	850-900mm
Air Pressure	≤0.5MPa (5 bar)
Sealing System	Special durable alloyed sealing knife with anti-stick Teflon coats
Operating Panel	Siemens colorful touch screen, PLC, Omron temperature controller
Machine Material	Stainless steel

Frequently Asked Questions

Common questions about SK-060ABS Automatic Sleeve Type Shrink Bundling Machine and our services.

Q:What types of products can the SK-060ABS machine handle?

The SK-060ABS is designed for single products without under support, such as bottles, and supports various packaging configurations like 10, 9, 12, or 15 bottles in different arrangements.

Q:Is the machine fully automatic?

Yes, it operates fully automatically, handling feeding, wrapping, sealing, shrinking, and cooling without manual assistance, with an optional automatic/manual mode for flexibility.

Q:What are the key features for reliability and safety?

It incorporates Siemens PLC, a worm gear reducer to prevent vibration, a special sealer with Teflon coating, and a double wind engine for even heat distribution, ensuring secure and efficient operation.
