SK-075D Automatic Shrink Bundling Machine
Efficient group and bundling shrink wrap machine with heat seal for collective packing of boxes. Features sleeve sealing, high capacity, and durable construction for industrial use.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description

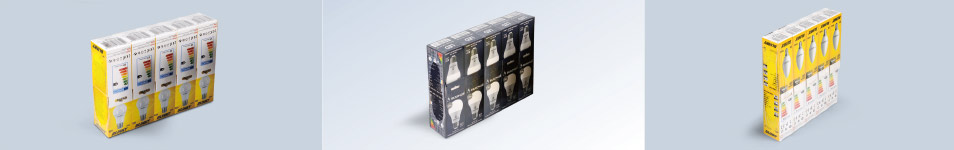

This group and bundling shrink wrap machine with heat seal is designed for the collective packing of boxes with hook eyes, providing efficient and secure packaging solutions for industrial applications.
Key Benefits
- Sleeve sealing type for reliable packaging
- High packing capacity of 6-12 packs per minute
- Uses polyethylene (PE) film for versatile applications
- Variable tunnel conveyor speed up to 40m/min
- Special durable alloyed sealing knife with anti-stick Teflon coats
- Siemens colorful touch screen, PLC, and Omron temperature controller for easy operation

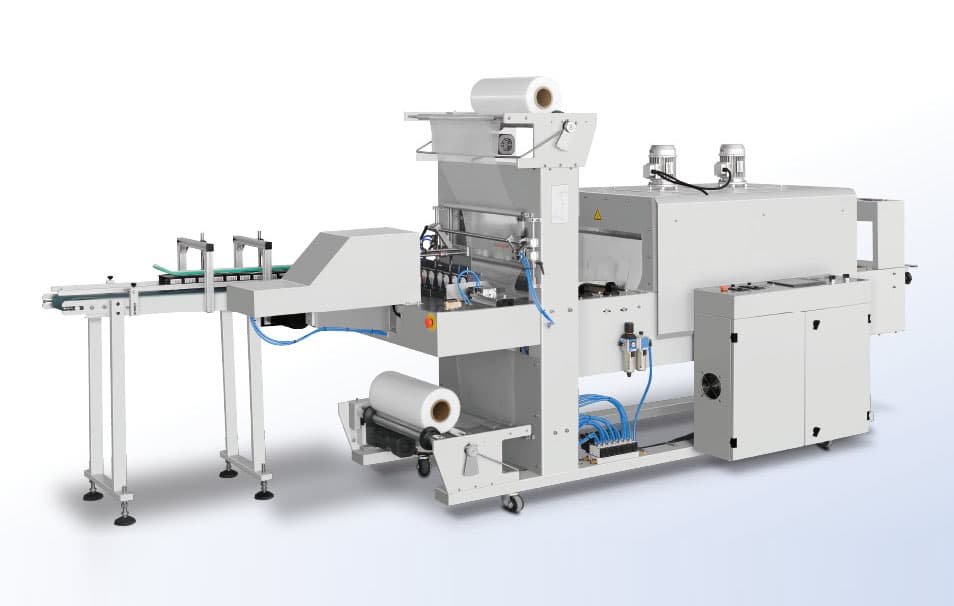

SK-075D Automatic Shrink Bundling Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

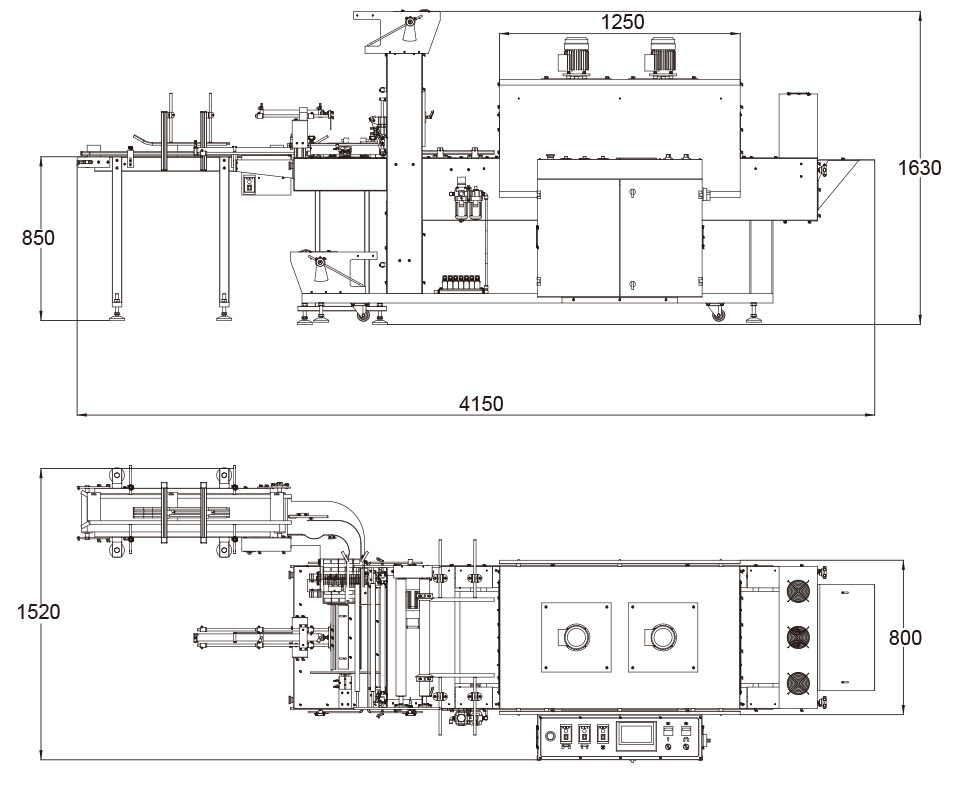

Technical Specifications
| Specification | Value |
|---|---|
| Model | SK-075D |
| Sealing Type | Sleeve sealing |
| Max Product Size | 380(L) x 200(W) x 200(H)mm |
| Film Type | Polyethylene (PE) film |
| Max Film Size | 500(width) x 280mm(outer diameter) |
| Tunnel Oven Size | Entrance 1250(L) x 520(W) x 220(H)mm |
| Tunnel Conveyor | Teflon mesh belt |
| Working Height | 850-900mm |
| Air Pressure | ≤0.5MPa(5 bar) |
| Sealing System | Special durable alloyed sealing knife with anti-stick Teflon coats |
| Operating Panel | Siemens colorful touch screen, PLC, Omron temperature controller |
| Machine Material | Carbon steel |
Frequently Asked Questions
Common questions about SK-075D Automatic Shrink Bundling Machine and our services.
Q:What is the primary application of this shrink wrap machine?
Q:What type of sealing does this machine use?
Q:What is the maximum packing capacity of this machine?
