Industrial Coil Wrapping Machine for Wire & Cable

Name: Industrial Coil Wrapping Machine for Wire & Cable
Brand: Industrial Solutions
SKU: 508
Availability: InStock

Model:508

Professional steel wire packing machine for coil packaging with paper and film. Features adjustable wrapping, efficient operation, and safety guards. Ideal for industrial use.

Key Specifications

Object Weight:80-1000 kg

Package Width:100-500 mm

Package Outer Diameter:750-1500 mm

Package Inner Diameter:490-610 mm

Wrapping Speed:40-65 seconds depending on dimensions

Roller Speed:2-4 m/min

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

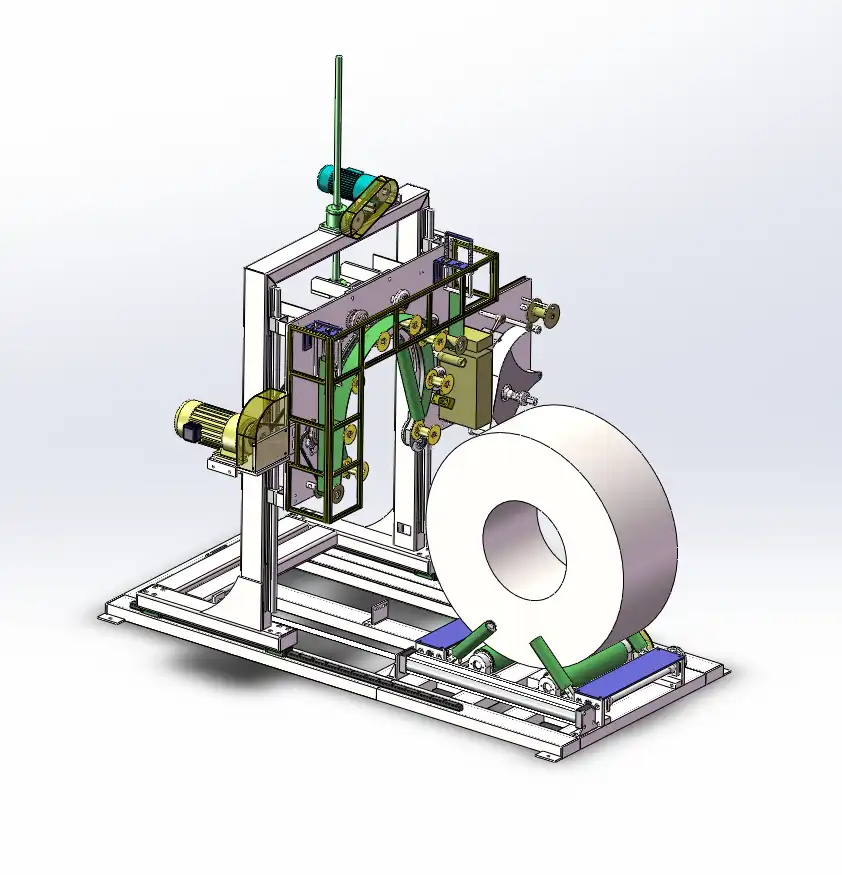

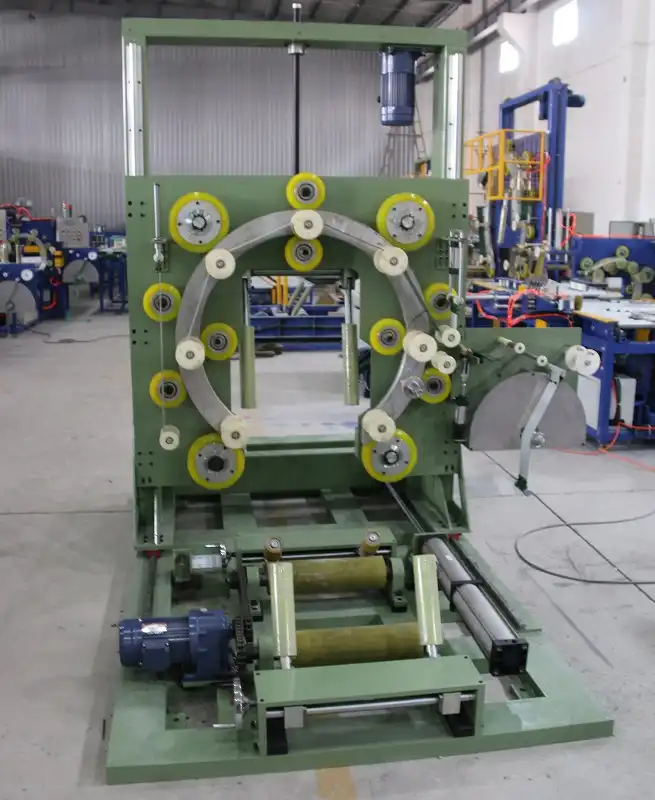

This steel wire packing machine is designed for efficient and secure packaging of coils using paper and film materials. It automates the wrapping process, enhancing productivity in industrial settings.

Operation begins by moving the wrapping station to the initial position for coil loading via crane. After loading, the station moves to the packing position for automatic wrapping and material cutting. Once complete, it returns to the initial position for unloading and reloading of new coils.

With features like adjustable overlap, tension control, and multiple material options, this machine ensures reliable and customizable packaging solutions for various coil sizes and weights.

Key Benefits

Movable wrapping station for easy loading and unloading
Adjustable packing tape overlap and tension via inverter
Level height adjustment of turning ring for different coil sizes
Support for multiple packing materials including paper and film
Polyurethane-covered supporting rollers for durability
Separate electrical box for safe operation and troubleshooting
Guardrails for enhanced safety during loading and unloading
Soft start and stop functions for smooth operation
Adjustable ring and roller speeds via inverter
Long-life PU wheels and adjustable friction settings

Industrial Coil Wrapping Machine for Wire & Cable Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Rotating Speed	10-90 r/min
Overlap Scope	10%-90%
Power Output	Approximately 3.0 kW
Power Voltage	380V/50Hz, 3 Phase
Air Supply	5-8 bar
Machine Size	Approximately L1600 x W1800 x H2000 mm
Paper/ H D P E/ Knit Belt Dimensions	Width: 100-120 mm, OD: 100-450 mm, ID: 76 mm, Thickness >85 Gsm
Stretch Film/ P V C Film Dimensions	Width: 100-120 mm, OD: 100-200 mm, ID: 76 mm, Thickness >23 micron
Site Conditions	Temperature: 5°C to 45°C, Humidity: 20%-99%, Dusty atmosphere

Frequently Asked Questions

Common questions about Industrial Coil Wrapping Machine for Wire & Cable and our services.

Q:What materials can this packing machine handle?

This machine supports various packing materials, including paper, HDPE, knit belt, stretch film, and PVC film, with adjustable widths and thicknesses for flexible packaging options.

Q:How does the machine ensure safety during operation?

Safety features include guardrails for loading and unloading, a separate electrical box for secure operation and troubleshooting, and soft start/stop functions to prevent sudden movements.

Q:Can the machine adjust to different coil sizes?

Yes, the machine offers adjustable level height of the turning ring and supportive rollers, allowing it to accommodate coils with outer diameters from 750 to 1500 mm and inner diameters from 490 to 610 mm.
