Home Coil Packing Machine Wire coil wrapping machineFPW300-W Razor Wire Coil Wrapping Machine

FPW300-W Razor Wire Coil Wrapping Machine - View 1

1 / 5

Tap thumbnails to view different images

Wire coil wrapping machine

FPW300-W Razor Wire Coil Wrapping Machine

Name: FPW300-W Razor Wire Coil Wrapping Machine
Brand: Industrial Solutions
SKU: 493
Availability: InStock

Model:493

Discover our Razor Wire Wrapping Machine for secure, efficient coil packaging. Features modular design, adjustable settings, and low operational costs. Ideal for industrial use.

Key Specifications

Object Weight:10-100 kg

Package Width:200-300 mm (OD = 700-950 mm, ID = 450-700 mm, OD-ID < 300 mm)

Roller Speed:2-4 m/min

Wrapping Speed:20-35 sec/piece

Rotating Speed:40-100 r/min

Power Output:Approximately 1.5 kW

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The Razor Wire Wrapping Machine is specially designed for packaging razor wire coils, featuring an inner layer of stretch film and outer layers of paper or woven material for enhanced protection. It offers high productivity, modular design for easy maintenance, and customizable sizing to meet specific industrial needs, ensuring safe and cost-effective operations.

Key Benefits

Modular design for ease of upkeep and maintenance
Exceptional productivity in coil packaging with adjustable wrapping speed
Custom sizing options for tailored packaging solutions
Safe operation with no hazard to personnel or product damage
Low costs for supplies and power consumption
Reduced noise levels during operation
Rapid configuration and setup times
Regulated packaging pace via converter control
Integrated quick-convert dispenser for bundling material

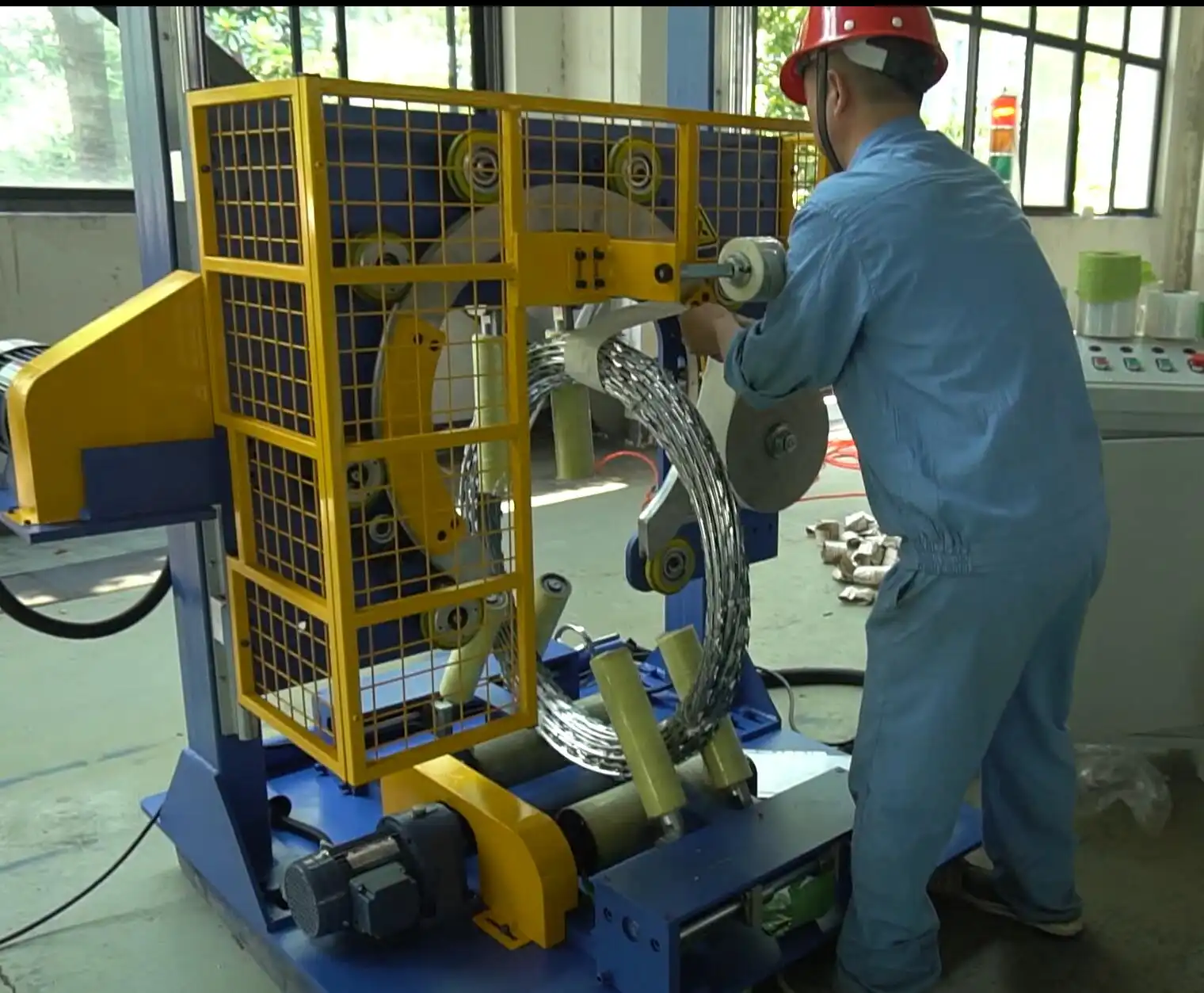

FPW300-W Razor Wire Coil Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Machine Model	FPW300-W
Overlap Scope	20%-90%
Power Voltage	380V/50Hz, 3Phase 5 wires
Packing Material	Crepe paper, knit belt, compound paper, HDPE (ID: 55 mm, OD: 300-450 mm, Width: 70-90 mm)

Frequently Asked Questions

Common questions about FPW300-W Razor Wire Coil Wrapping Machine and our services.

Q:What is the primary use of the Razor Wire Wrapping Machine?

It is designed for packaging razor wire coils with protective layers, including stretch film inside and paper or woven material outside, ensuring secure and efficient industrial packaging.

Q:Can the machine handle different coil sizes?

Yes, it offers adjustable settings for level height, roller distance, and other parameters to accommodate various coil sizes, with custom sizing options available.

Q:What safety features does the machine include?

Safety features include guardrails, soft start and stop functions, separate electrical boxes, indicator lamps for trouble alarms, and protective rollers covered with polyurethane to prevent damage.

Q:Is the machine energy-efficient?

Yes, it operates with low power consumption and reduced noise levels, contributing to cost savings and a safer working environment.

Ready to Upgrade Your Production Line?

Get a customized quote for FPW300-W Razor Wire Coil Wrapping Machine and discover how it can optimize your operations.
