Automatic Steel Wire Coil Packaging Machine
Discover our Automatic Steel Wire Coil Packing Machine, designed for efficient, safe, and cost-effective packaging in wire drawing industries. Features PLC control and adjustable settings.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description

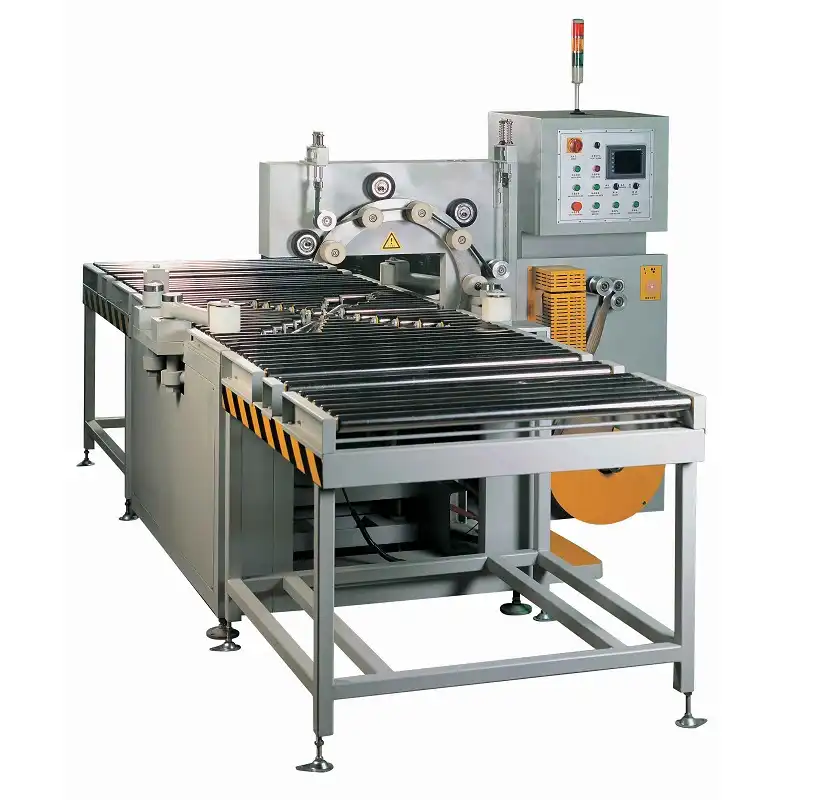

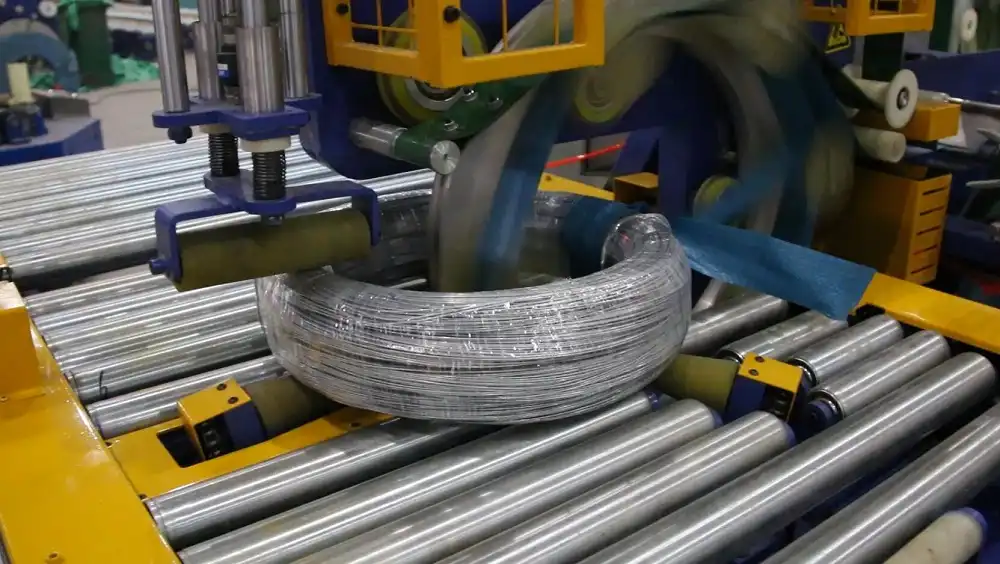

The Automatic Steel Wire Coil Packing Machine is a horizontal-type solution for packaging steel wire coils, including in and out feeding conveyors with a ring-type coil wrapper. It serves the wire drawing industry by addressing key issues such as labor costs, packaging efficiency, and safety through innovative, cost-effective design.
Key Benefits
- Modular construction for easy operation and maintenance
- Mechanized wrapping for higher efficiency compared to manual packaging
- Wide applicability with custom designs for special sizes
- Humanized design to prevent product damage
- Low consumable and energy costs
- Low noise operation for a better work environment
- Short setup times to increase productivity
- Adjustable product advancement speed using an inverter
- Quick-change dispenser for wrapping materials
- Variable stretch film tension to protect products
- PLC and HMI program system for automatic wrapping
- High-quality components from well-known brands
- Adjustable packing tape overlap via inverter
- Turning ring for easier and safer operation
- Choice of different packing materials
- Automatic positioning for different wire coil sizes
- Adjustable packing tape tension with a special brake device
- Polyurethane-covered supporting rollers for durability
- Special side protective rollers for stability with large coils
- Four-sided protective rollers to keep coils fixed and stable
- Adjustable distance between protective rollers for various coil sizes
- Separate electrical box for safe operation and troubleshooting
- Guardrail for enhanced safety
- Soft stop and start functions
- Packing position reset capability
- Adjustable ring and roll speeds via inverters
- Adjustable friction between wheel and ring
- Long-life PU wheels
- Roller conveyor for in-feeding and out-feeding

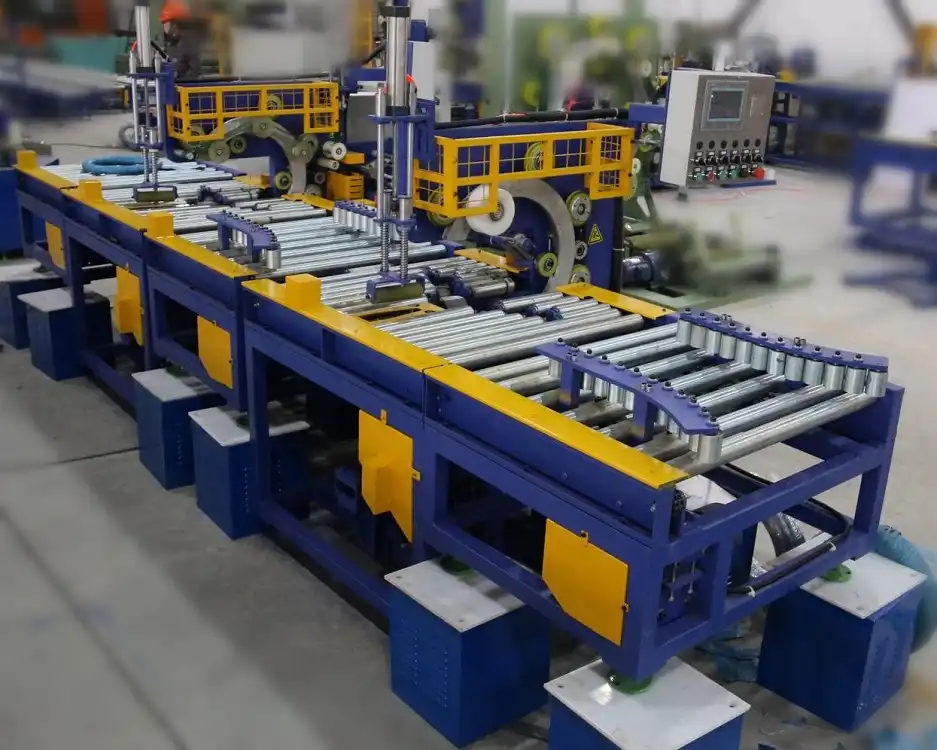

Automatic Steel Wire Coil Packaging Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Machine Model | FPW-AU300 |
| Package O D | 500-1200 mm |
| Package I D | 300-900 mm |
| O D- I D | <500 mm |
| Overlap Scope | 10%-90% |
| Packing Material | Stretch film/Paper, ID: 50 mm, OD: 150-250 mm, Width: 120 mm |
Frequently Asked Questions
Common questions about Automatic Steel Wire Coil Packaging Machine and our services.
Q:What industries is this machine designed for?
Q:How does the machine improve packaging efficiency?
Q:Can the machine handle different coil sizes?
Q:What safety features are included?
