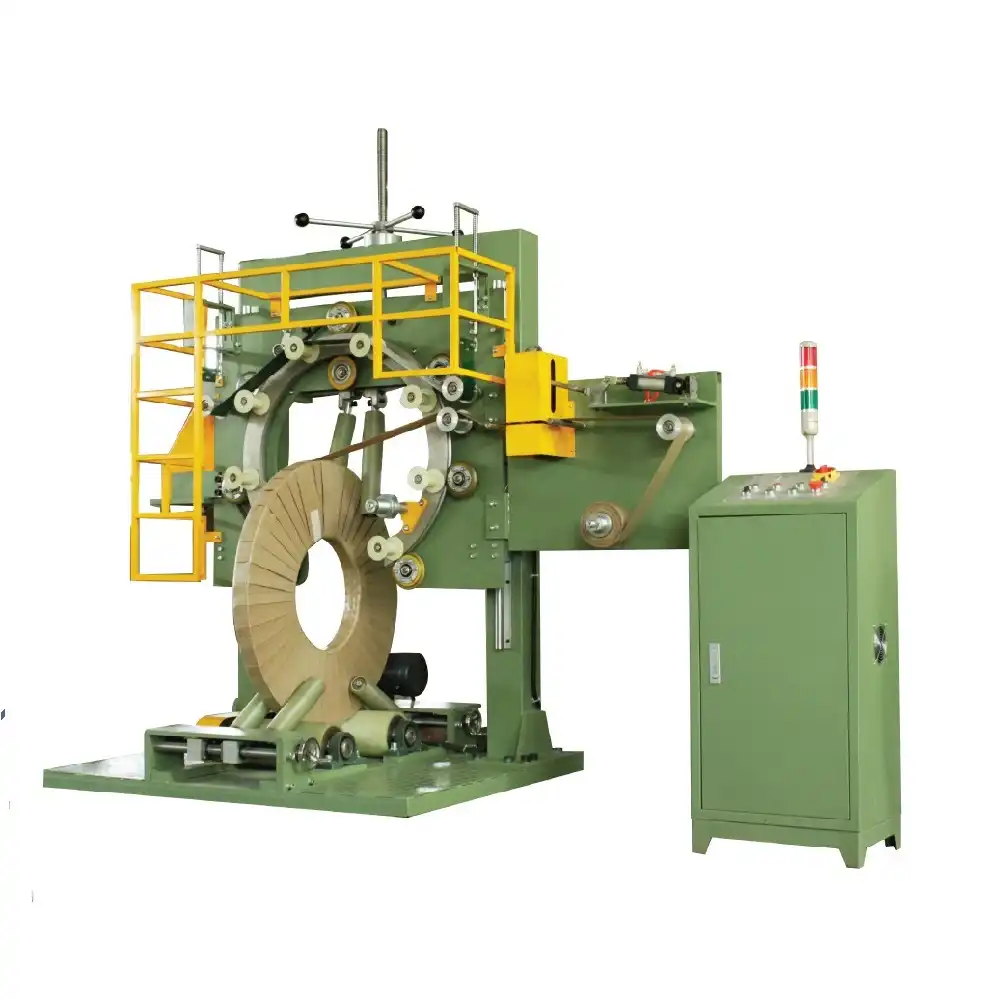

FPW-400 Stationary Wire Coil Wrapping Machine

Name: FPW-400 Stationary Wire Coil Wrapping Machine
Brand: Industrial Solutions
SKU: 208
Availability: InStock

Model:208

Discover the FPW-400 steel wire coil packing machine for efficient, automated wrapping. Features PLC control, adjustable settings, and versatile packaging for coils up to 1200mm OD.

Key Specifications

Power:1.5 kW

Steel Wire Coil Width:40-400 mm

Steel Wire Coil Weight:40-400 kg

Machine Model:FPW-400

Voltage:380V 50Hz 3Phase

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

FHOPE is a leading manufacturer of steel wire coil packaging machines, offering advanced solutions for wrapping coils from 20-3,000 mm in width. The FPW-400 floor-standing stationary-type machine is designed for packaging steel and copper wire coils at floor level, reducing labor costs and enhancing product protection through a rotating ring and turning rollers.

This versatile equipment accommodates medium-sized wire coils with customizable features, including intelligent control systems for easy parameter adjustments and real-time monitoring. Its rugged construction and high-performance mechanisms make it ideal for high-volume and high-mix applications, with optional upgrades available for automated loading/unloading and conveyor integration.

Key Benefits

PLC and HMI for automatic operation
Low working table height for easy floor-level loading and unloading
Automatic start and stop of wrapping process
Converter for adjustable ring and roller speeds
Adjustable overlap of packing tape
Automatic material cutting
Safety features including guardrails and soft start/stop
Manual height adjustment for different coil OD and ID
Adjustable packaging tension via special breaker in film roll
PU-covered rollers to protect wire coil surfaces
Automatic indicator alarms for troubleshooting
Two packing material fixing options: on ring or next to wrapping station
Wide compatibility with various packing materials

FPW-400 Stationary Wire Coil Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Steel Wire Coil I D	>300 mm
Steel Wire Coil O D	600-1200 mm
Packing Material	PVC/LLDPE/PE/PAPER/HDPE, ID: 50mm, OD: 100-250mm, Width: 100-300mm
Overlapping Rate	10%-90%
Air Supply	4-6 bar

Frequently Asked Questions

Common questions about FPW-400 Stationary Wire Coil Wrapping Machine and our services.

Q:What types of coils can the FPW-400 machine handle?

The FPW-400 is designed for steel and copper wire coils with an inner diameter greater than 300 mm, outer diameter from 600-1200 mm, width from 40-400 mm, and weight from 40-400 kg.

Q:What safety features are included in this machine?

Safety features include guardrails, soft starts and stops, and automatic indicator alarms that alert operators to any issues during operation.

Q:Can the machine be customized for specific packaging needs?

Yes, the machine offers customizable form and structure, adjustable parameters via PLC and HMI, and optional upgrades like automatic loading/unloading and conveyor integration to suit unique requirements.
