FPS-800 Coil Wrapping Machine

Name: FPS-800 Coil Wrapping Machine
Brand: Industrial Solutions
SKU: 209
Availability: InStock

Model:209

High-performance steel coil packing machine with trolley for automated wrapping. Features PLC control, touch screen operation, and customizable specs for efficient coil protection.

Key Specifications

Power:1.5 kW

Steel Coil Width:400-800 mm

Steel Coil Weight:200-1000 kg

Model:FPS-800

Voltage:380V 50Hz 3Phase (adjustable)

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This steel coil packing machine with trolley offers advanced automation for efficient coil wrapping. Equipped with a user-friendly touch screen, it allows precise input of coil data such as OD, ID, width, and weight, along with customizable wrapping speed and layer settings. The PLC and touch screen system ensure high-quality operation, improved packing performance, and enhanced labor efficiency, delivering profitability through automated processing. Designed to meet industry demands for speed and performance, this machine supports various packing materials and adjustable parameters to achieve optimal packaging results.

Key Benefits

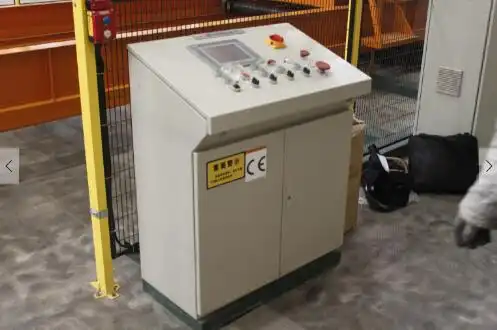

Smart PLC and HMI control with Siemens/Mitsubishi PLC for precise digital settings
Certified safety system with CE compliance, safety light curtains, and emergency stops
Inverter-driven control for soft start/stop and smooth operation
Durable PU rollers for anti-slip grip and scratch prevention

FPS-800 Coil Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Steel Coil I D	508 mm
Steel Coil O D	800-1400 mm

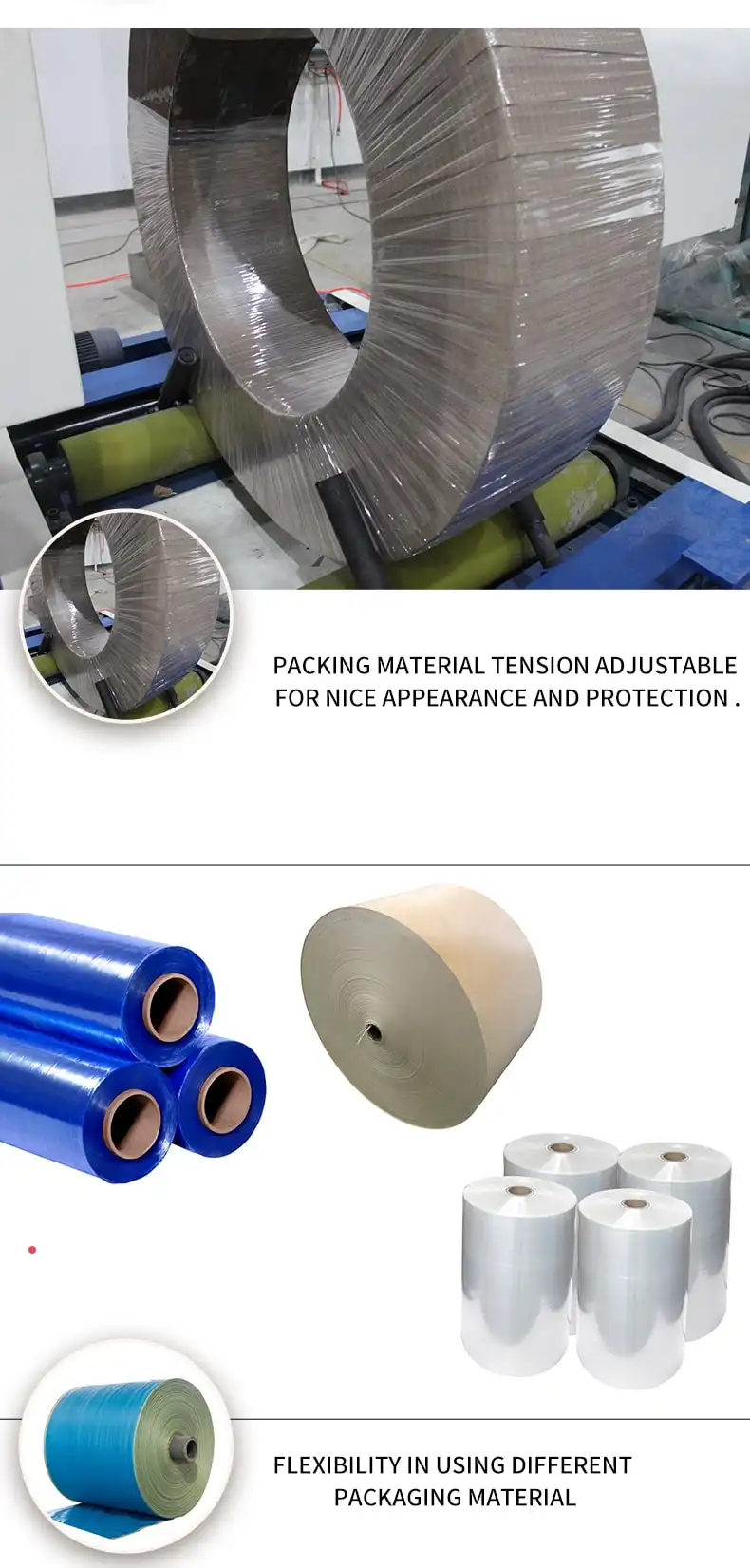

Packing Material	PVC/LLDPE/PE/PAPER/HDPE available
Overlapping Rate	10%-90% (adjustable)
Air Supply	5-7 kgf/cm² (optional)

Frequently Asked Questions

Common questions about FPS-800 Coil Wrapping Machine and our services.

Q:What are the key benefits of using this steel coil packing machine?

This machine provides high automation, improved packing speed and performance, and enhanced labor efficiency through PLC and touch screen control, leading to increased profitability.

Q:Can the machine handle different coil sizes and materials?

Yes, it supports coil IDs from 508 mm, ODs from 800-1400 mm, widths from 400-800 mm, and weights from 200-1000 kg, with various packing materials like PVC, LLDPE, PE, PAPER, and HDPE.

Q:Is the machine safe to operate?

Absolutely, it features a certified safety system with CE compliance, safety light curtains, and emergency stops to ensure zero-risk operation and operator safety.
