FPS-400 Steel Coil Packing Machine
Discover the FPS-400 steel coil packaging machinery, a top-loading vertical wrapper with PLC control, adjustable settings, and support for various materials. Ideal for heavy coil protection.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The FHOPE Steel Coil Packaging Machinery FPS-400 is a classical simplified coil packing machine designed for the steel coil industry. It features a top-open design for convenient vertical loading and unloading by crane, making it an efficient handling choice.
This machine supports various packaging materials such as stretch film, crepe paper, and woven belt. It is custom-made based on coil specifications including OD, ID, width, and thickness, with adjustable wrapping speed, packing material, and wrapping layers to meet customer needs.
Standard components include a C-ring, packing material releasing roller, supportive roller, carrier roller, and base frame. It is equipped with a PLC and touch screen control system for quick operation and easy maintenance.
Key Benefits
- Custom-designed based on customer product specifications
- Special design for heavy steel coils
- Top-open design for easy crane loading and unloading
- Uses famous brand electrical components
- Adjustable overlap and speed
- Safety signs and English control buttons
- Separate cabinet and easy operation
- Smart PLC and HMI control for precise parameter adjustment
- Certified safety system with CE compliance
- Inverter-driven control for smooth operation
- Durable PU rollers for surface protection

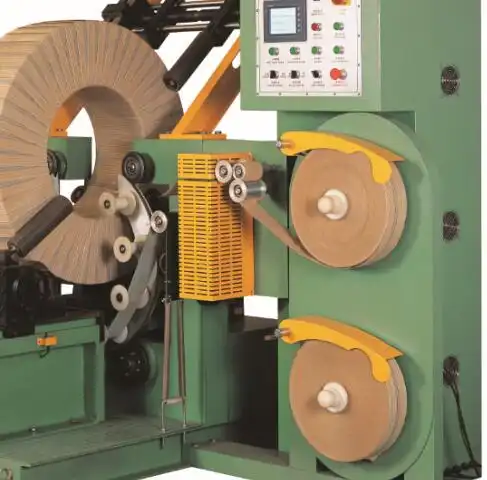

FPS-400 Steel Coil Packing Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Coil I D | 508/610 mm |
| Coil O D | 800-1400 mm |
| Packing Material | PVC/LLDPE/PE/PAPER/HDPE, ID: 50mm, OD: 100-450mm, Width: 100-150mm |
| Overlapping Rate | 10%-90% |
| Air Supply | 5-7 kgf/cm² |
Frequently Asked Questions
Common questions about FPS-400 Steel Coil Packing Machine and our services.
Q:What types of packaging materials can the FPS-400 handle?
Q:Is the machine customizable for different coil sizes?
Q:What safety features are included?
Q:How is the machine controlled?
