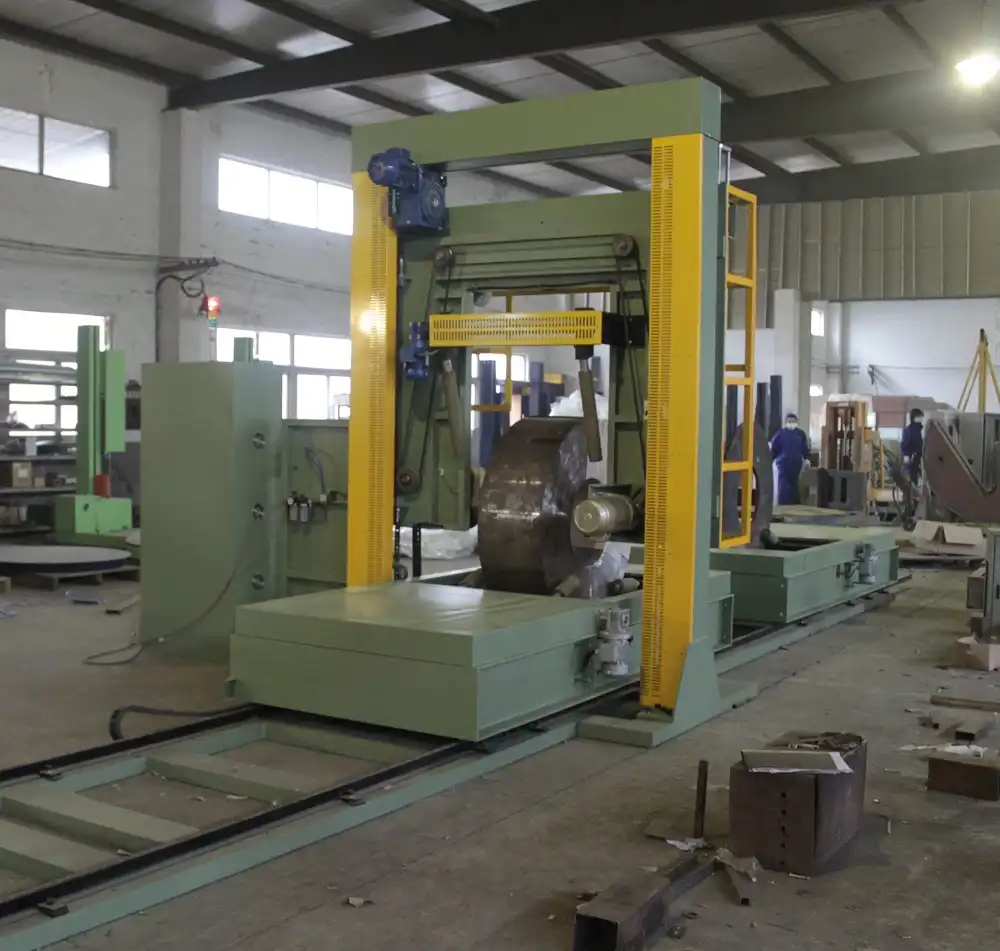

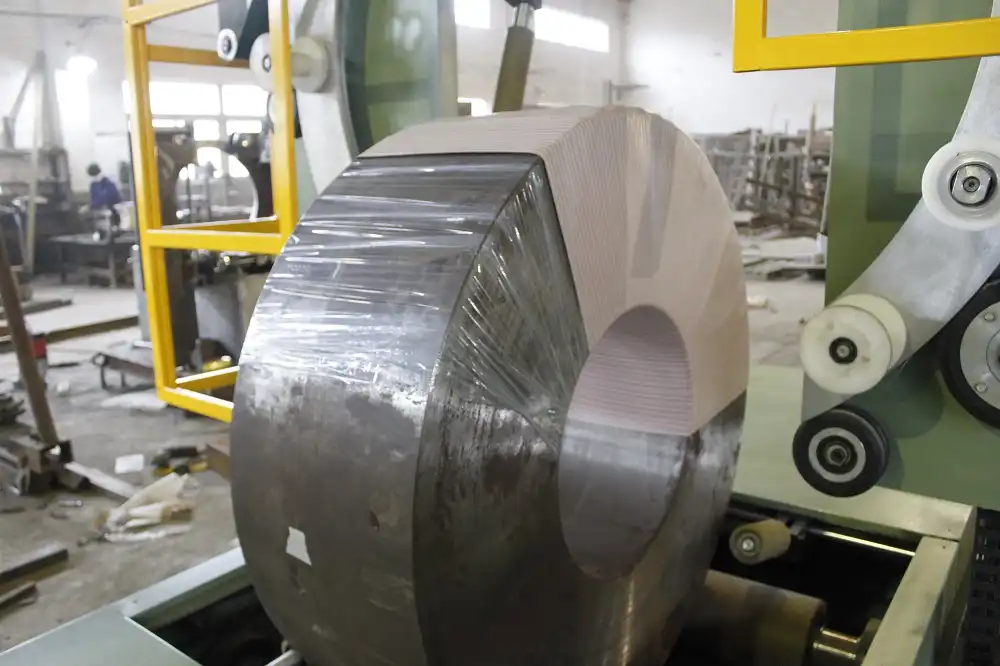

FPS-600 Automated Steel Coil Wrapping Machine

Name: FPS-600 Automated Steel Coil Wrapping Machine
Brand: Industrial Solutions
SKU: 207
Availability: InStock

Model:207

Discover our advanced coil packing machine with PLC control, adjustable features, and safety systems. Ideal for steel coils up to 2000kg, offering reliable packaging solutions.

Key Specifications

Coil Width:200-600 mm

Coil Inner Diameter:700-1100 mm

Coil Outer Diameter:1000-1500 mm

Coil Weight:200-2000 kg

Roller Speed:Approx. 3-5 m/min

Rotating Speed:Approx. 20-60 r/min

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

Our coil packing machine is engineered for efficient and secure packaging of steel coils, featuring advanced PLC control and adjustable settings to accommodate various coil sizes and materials. Designed with safety and durability in mind, it includes features like soft start/stop, overload protection, and a user-friendly control panel for optimal performance in industrial environments.

Key Benefits

PLC control for precise operation and automation
Adjustable ring board height for different coil outer diameters
Tension control system for consistent wrapping effect
Safety features including protective guards and emergency stops
Durable PU rollers for long-lasting performance
Option for automatic material cutter and HMI control

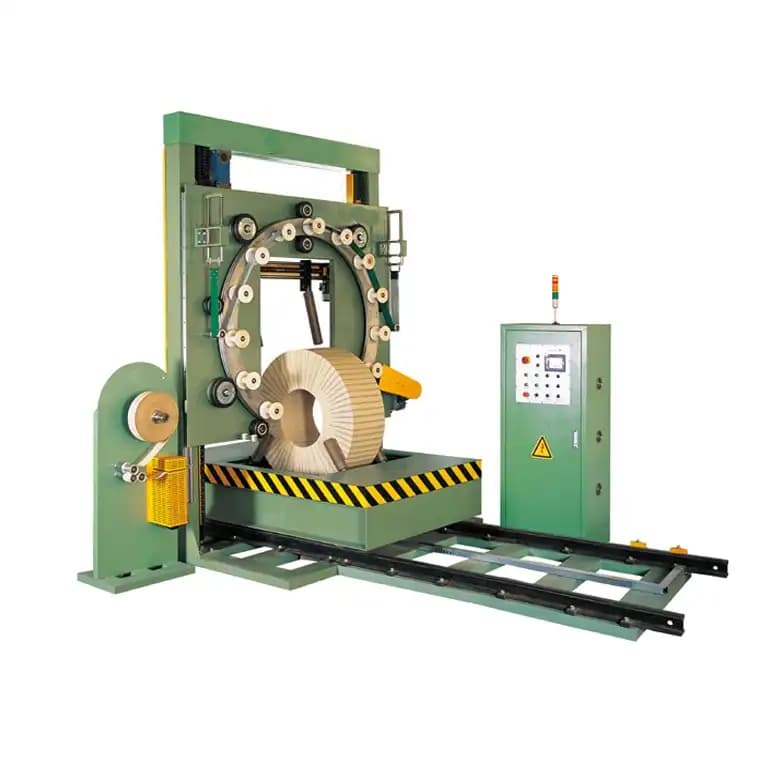

FPS-600 Automated Steel Coil Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Overlap Rate	20%-90%
Power Output	Approx. 7.5 kW
Power Supply	380 V, 50 Hz, 3 phase
Packing Material	Crepe paper/plastic knit tape/etc: ID 55mm, OD 200-400mm, Width 100-120mm
L L D P E Stretch Film Roll	ID 50mm, OD 100-200mm, Width 100-120mm

Frequently Asked Questions

Common questions about FPS-600 Automated Steel Coil Wrapping Machine and our services.

Q:What safety features does this coil packing machine include?

The machine includes protective guards, emergency stop mechanisms, overloading protection, and safety light curtains to ensure safe operation and protect workers.

Q:Can the machine handle different coil sizes?

Yes, it is adjustable for coil widths from 200-600mm, inner diameters from 700-1100mm, and outer diameters from 1000-1500mm, with a weight capacity up to 2000kg.

Q:What control options are available?

It features PLC control with optional HMI for intuitive operation, allowing adjustments to overlap, tension, and speed for consistent packaging quality.
