MO-900 Fully Automatic Side Sealer Shrinking Machine
Discover the MO-900 side sealer shrink wrap machine for efficient, fully automatic packaging. Features PLC control, adjustable sealing, and high-speed operation. Ideal for various product sizes.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The MO-900 is a fully automatic side sealer shrink wrap machine designed for high-efficiency packaging in production lines. It integrates automatic feeding, conveying, bagging, sealing, and shrinkage into one seamless process, eliminating the need for manual operation. This machine is versatile, accommodating products of different heights and widths, making it suitable for a wide range of industrial applications.
Key Benefits
- Vertical-driven transverse cutter and constant-temperature side cutter for straight, strong sealing lines.
- Thermostatic heating sealing and cutting system compatible with POF and other industrial shrink films.
- Unlimited product length capability with sustainable longitudinal sealing knife operation.
- PLC programmable controller for continuous, smooth operation and easy maintenance.
- Electric eye detection and timer for precise film length control and consistent shrinkage.
- Horizontal and vertical electric eyes for easy sealing of thin or small packaging.
- Automatic scrap take-up with single motor control to prevent film damage.
- Optional automatic blowing function and conveyor systems for enhanced customization.

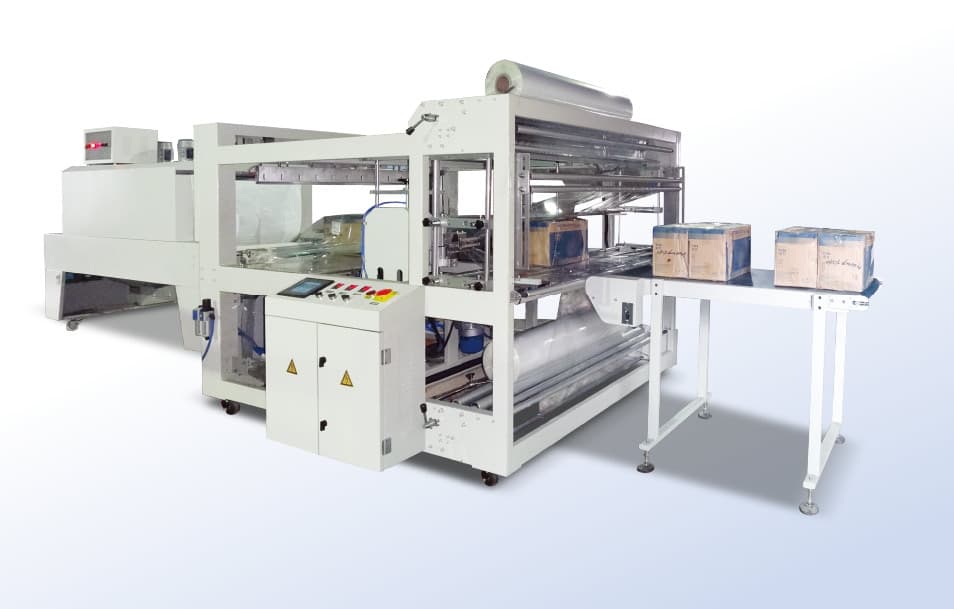

MO-900 Fully Automatic Side Sealer Shrinking Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Sealing Type | 4 sides sealing, full close |
| Sealing Height | 300 mm |
| Product Size | 400mm < width + height < 900mm, Length > 250mm |
| Film Type | Single layer PE film, POF film |
| Shrink Tunnel | Max. 28 kW |
| Working Height | 850-900 mm |
| Air Pressure | 0.5 MPa (5 bar) |
| Sealing System | Double side sealing and cross sealing system with Teflon-coated seal bar |
| Operating Panel | Siemens colorful touch screen, PLC, Omron temperature controller |
| Machine Material | Carbon steel |
Frequently Asked Questions
Common questions about MO-900 Fully Automatic Side Sealer Shrinking Machine and our services.
Q:What types of films can the MO-900 machine handle?
Q:Is the MO-900 machine fully automatic?
Q:Can the MO-900 be customized for specific packaging needs?
