MO-350 Fully Automatic Side Sealer Shrinking Machine
Discover the MO-350 side sealer shrinking packing machine for efficient, full-auto packaging. Features PLC control, adjustable sealing, and high-speed operation for various product sizes.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The MO-350 is an economical and fully automatic sealing and packaging machine independently developed by Industrial Solutions, designed for high-efficiency mass production assembly and packaging processes. It integrates automatic feeding, conveying, bagging, sealing, and shrinkage into one seamless operation, suitable for products with varying heights and widths.
Key Benefits
- Vertical-driven transverse cutter and constant-temperature side cutter for straight, strong sealing lines.
- Thermostatic heating sealing and cutting system compatible with POF and other industrial shrink films.
- Adjustable packaging specifications via hand wheel for increased reliability and ease of operation.
- PLC programmable controller for continuous, smooth operation with simple maintenance.
- Electric eye detection and timer for precise film length control and consistent shrinkage effects.
- Horizontal and vertical electric eyes for easy sealing and packaging of thin or small items.
- Automatic scrap take-up with single motor control to prevent film damage.
- Optional automatic blowing function and front feeding power conveyor with out-feeding storage.

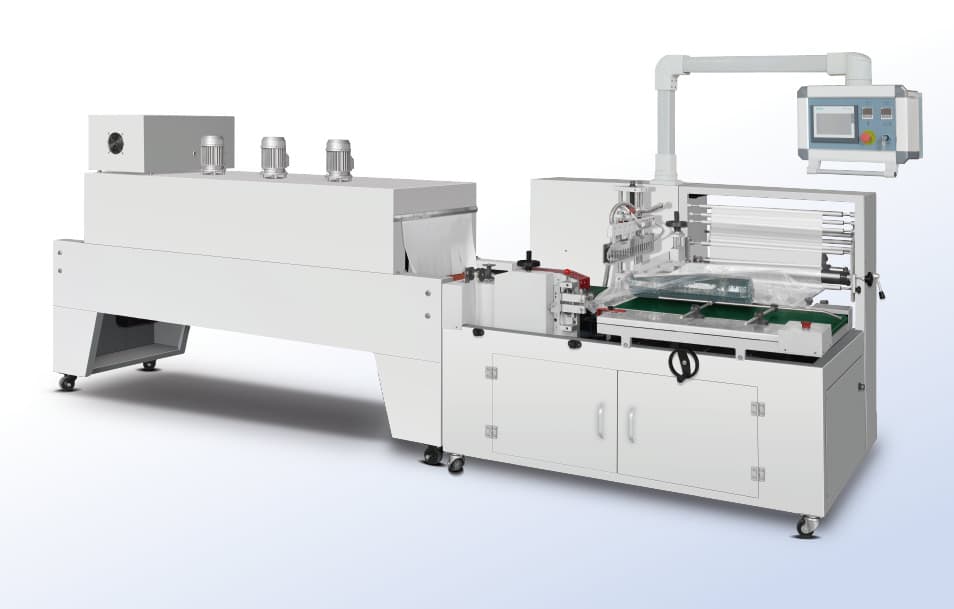

MO-350 Fully Automatic Side Sealer Shrinking Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Sealing Height | ≤200 mm |
| Product Size | width + height ≤ 400 mm |
| Product Length | Infinite |
| Film Type | Center-folded polyolefin (POF) film or polyethylene (PE) film |
| Max Film Size | 580mm (width) x 280mm (outer diameter) |
| Tunnel Oven Size | Depends on product length |
| Tunnel Conveyor | Chains with rotating silicon-coated rods |
| Working Height | 780-820 mm |
| Air Pressure | ≤0.5 MPa |
| Sealing System | Special durable alloyed sealing knife with anti-stick Teflon coats |
| Operating Panel | Siemens colorful touch screen, PLC, Omron temperature controller |
Frequently Asked Questions
Common questions about MO-350 Fully Automatic Side Sealer Shrinking Machine and our services.
Q:What types of films can the MO-350 machine handle?
Q:How does the machine adjust for different product sizes?
Q:What are the key benefits of using this machine in mass production?
