M-Type Semi-Automatic Pallet Stretch Wrapping Machine
Discover the M-Type Truck-Access Pallet Stretch Wrapper, designed for efficient pallet wrapping in distribution and manufacturing. Features PLC control, up to 2000kg capacity, and customizable settings.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
Pallet stretch wrapping machines are essential for distribution centers, manufacturing companies, fulfillment operations, printing operations, and businesses that ship products on pallets. These machines come in various styles and automation levels, offering a significant improvement over manual wrapping methods, which are often inconsistent, unsafe, and labor-intensive. The M-Type Truck-Access Pallet Stretch Wrapper provides reliable and efficient wrapping solutions to enhance your packaging processes.
Key Benefits
- PLC system controller for precise operation
- Pre-stretch controller with adjustable tension up to 300%
- Separate buttons and display for easy operator interface
- Re-wrap function and overwrap/overlap adjustments
- Independent top, middle, and bottom wrap counters

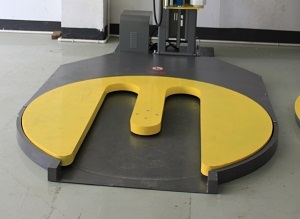

- Soft start and stop turntable with 1500mm diameter
- Maximum load capacity of 2000kg and adjustable speed
- Front and rear forklift access for convenient handling
- Safety features including emergency stop and lockable electrical disconnect
- Customizable service for extended height and turntable size
Technical Specifications
| Specification | Value |
|---|---|
| Max Load Size ( L* W* H) | 1500mm x 1500mm |
| Min Load Size ( L* W* H) | 500mm x 500mm x 500mm |
| Max Load Height | 1800mm |
| Turntable Height | 100mm |
| Pre- Stretch Motor Power | 0.35W |
| Turntable Motor Power | 0.75W |
| Packing Efficiency | 20-40 loads/hour |
| Forklifting | Front and rear |
| Machine Weight | 650kg |
| P L C Control | Yes |
| Film Sealer | Yes |
| H M I | No |
| Pre- Stretch | Yes |
| Stretch Film External Diameter | 150-250mm |
| Stretch Film Internal Diameter | 76mm |
| Film Roll Height | 500m |
| Film Thickness | 0.025mm |
Frequently Asked Questions
Common questions about M-Type Semi-Automatic Pallet Stretch Wrapping Machine and our services.
Q:What is the maximum load capacity of the M-Type Pallet Stretch Wrapper?
Q:Does this machine include safety features?
Q:Can the turntable speed be adjusted?
Q:What type of control system does this wrapper use?
Q:Is customization available for this machine?
