A100 Semi-Automatic Pallet Stretch Wrapping Machine
Discover the FHOPE pallet stretch wrapping machine for secure, efficient load stabilization. Features PLC control, pre-stretch up to 300%, and handles loads up to 2000kg. Ideal for various industries.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The FHOPE pallet stretch wrapping machine is designed to wrap stretch film around loading pallets, providing additional support and protection during transport and storage. It helps prevent tipping, leaks, and damage, while allowing for easy identification and separation of packaged loads. This machine is widely used in industries such as chemical, electronic, building materials, household appliances, paper, food, and beverage.
Key Benefits
- PLC system controller with pre-stretch control for precise tension management
- Adjustable wrap settings including re-wrap function, overwrap, and overlap adjustments
- Handles loads up to 2000kg with a maximum size of 1500mm x 1500mm x 1800mm
- Features independent wrap counters for top, middle, and bottom layers
- Includes safety features like emergency stop and lockable electrical disconnect
- Offers customizable options such as extended height and turntable size

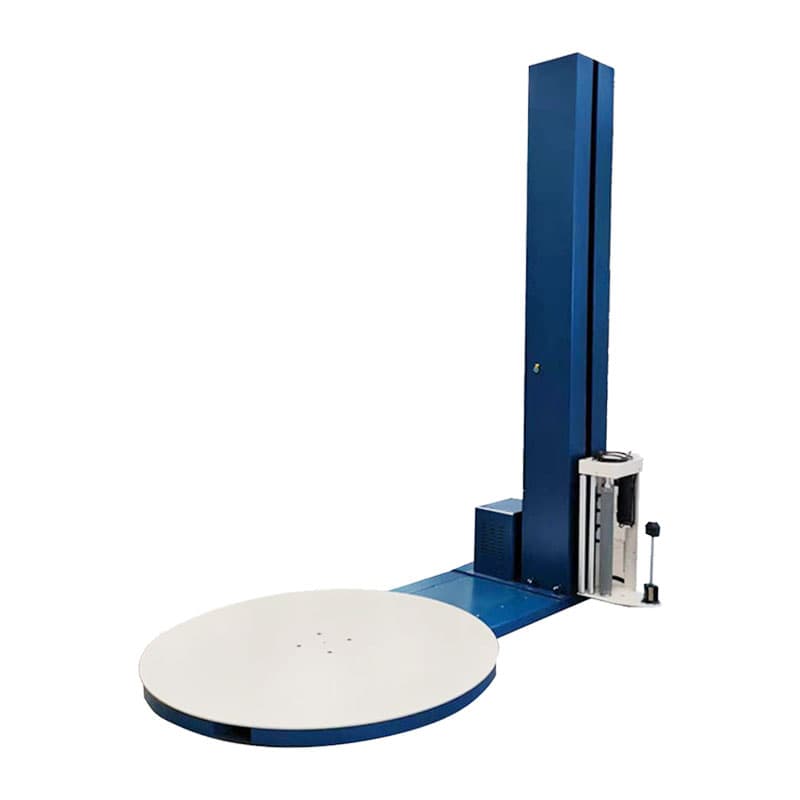

A100 Semi-Automatic Pallet Stretch Wrapping Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Model | A100 |
| Maximum Load Size | 1500mm x 1500mm x 1800mm |
| Minimum Load Size | 500mm x 500mm x 500mm |
| Packing Efficiency | 20-40 loads per hour |
| Machine Weight | 650kg |
| Film Thickness | 0.025mm |
| Film Roll Height | 500mm |
| Pre-stretch Level | 250% (optional 100% to 300%) |
Frequently Asked Questions
Common questions about A100 Semi-Automatic Pallet Stretch Wrapping Machine and our services.
Q:What industries is this pallet wrapping machine suitable for?
Q:What safety features does the FHOPE pallet wrapper include?
Q:Can the wrap settings be customized for different loads?
Q:What is the warranty and support provided with this machine?
