Semi-auto pallet wrapping machine

A200 Automated Pallet Stretch Wrapping Machine

Name: A200 Automated Pallet Stretch Wrapping Machine
Brand: Industrial Solutions
SKU: 113
Availability: InStock

Model:113

Automate pallet wrapping with our stretch wrapping machine, featuring PLC control, pre-stretch up to 300%, and a 2000kg capacity. Ideal for chemical, food, and electronics industries.

Key Specifications

Max Load Weight:2000kg

Turntable Diameter:2000mm

Turntable Rotation Speed:13r/min (adjustable)

Power Supply:220V 1 Phase 50Hz

Tower Motor Power:0.4W

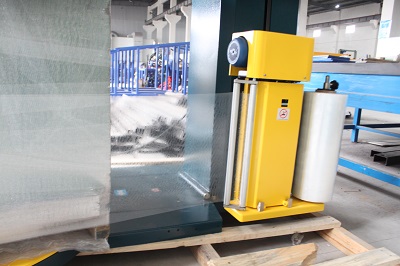

Pre-stretch Motor Power:0.35W

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The pallet stretch wrapping machine is designed to automate the application of stretch film onto pallets, enhancing efficiency and safety compared to manual methods. It provides additional support during transport or storage, protecting products from tipping, leakage, or damage, while allowing easy identification and separation of loads. Widely used in industries such as chemical, electronic, building materials, household appliances, paper, food, and beverage, this machine offers customizable wrapping styles and levels to meet diverse packaging needs.

Key Benefits

PLC system with pre-stretch controller for precise tension control

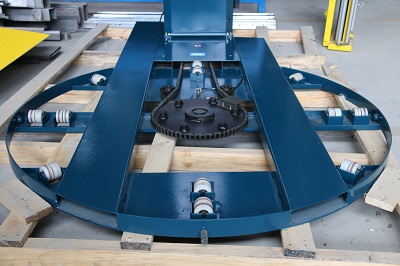

Turntable with soft start/stop and up to 2000kg load capacity
Adjustable wrap settings including re-wrap function and overlap adjustments
Safety features like emergency stop and film loading safety shut-off switch
High efficiency with up to 40-45 loads per hour and reduced manual operation

A200 Automated Pallet Stretch Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Model	A200
Max Load Size	1500mm x 1500mm
Min Load Size	500mm x 500mm x 500mm
Max Load Height	1800mm
Turntable Motor Power	0.75W
Packing Efficiency	20-40 loads/hour
Machine Weight	650kg
Film Roll Height	500mm
Film Thickness	0.025mm
Pre-stretch Level	250% (optional 100% to 300%)
P L C Control	Yes
Film Sealer	No
H M I	No

Frequently Asked Questions

Common questions about A200 Automated Pallet Stretch Wrapping Machine and our services.

Q:What industries is this pallet stretch wrapping machine suitable for?

This machine is widely used in chemical, electronic, building materials, household appliances, paper, food, beverage, and other industries for secure and efficient pallet packaging.

Q:What safety features does the machine include?

Safety features include an emergency stop with a red mushroom head, turntable soft start/stop, film loading safety shut-off switch, and lockable electrical disconnect to ensure operator safety during use.

Q:Can the wrapping settings be customized?

Yes, the machine offers adjustable wrap settings such as re-wrap function, overwrap and overlap adjustments, and independent wrap counters for top, middle, and bottom, allowing customization based on packaging requirements.

Q:What is the maximum load capacity of the turntable?

The turntable has a maximum load weight of 2000kg, with a diameter of 2000mm and soft start/stop functionality for stable operation.

Q:Does the machine come with a warranty?

Yes, it includes a 1-year warranty along with lifelong maintenance and technical support, ensuring reliable performance and long-term usability.
