FPC-400 Automatic Horizontal Coil Wrapping System

Name: FPC-400 Automatic Horizontal Coil Wrapping System
Brand: Industrial Solutions
SKU: 215
Availability: InStock

Model:215

FPC-400 automatic copper coil packing machine enhances packaging efficiency with PLC control, horizontal wrapping, and robust specs for 20-3000kg coils. Ideal for B2B industrial use.

Key Specifications

Object Weight:20-3000kg

Package Width:10-400mm

Roller Speed:2-4m/min

Wrapping Speed:25-60sec/pcs

Rotating Speed:10-100r/min

Power Voltage:380v/50/60Hz/3ph

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

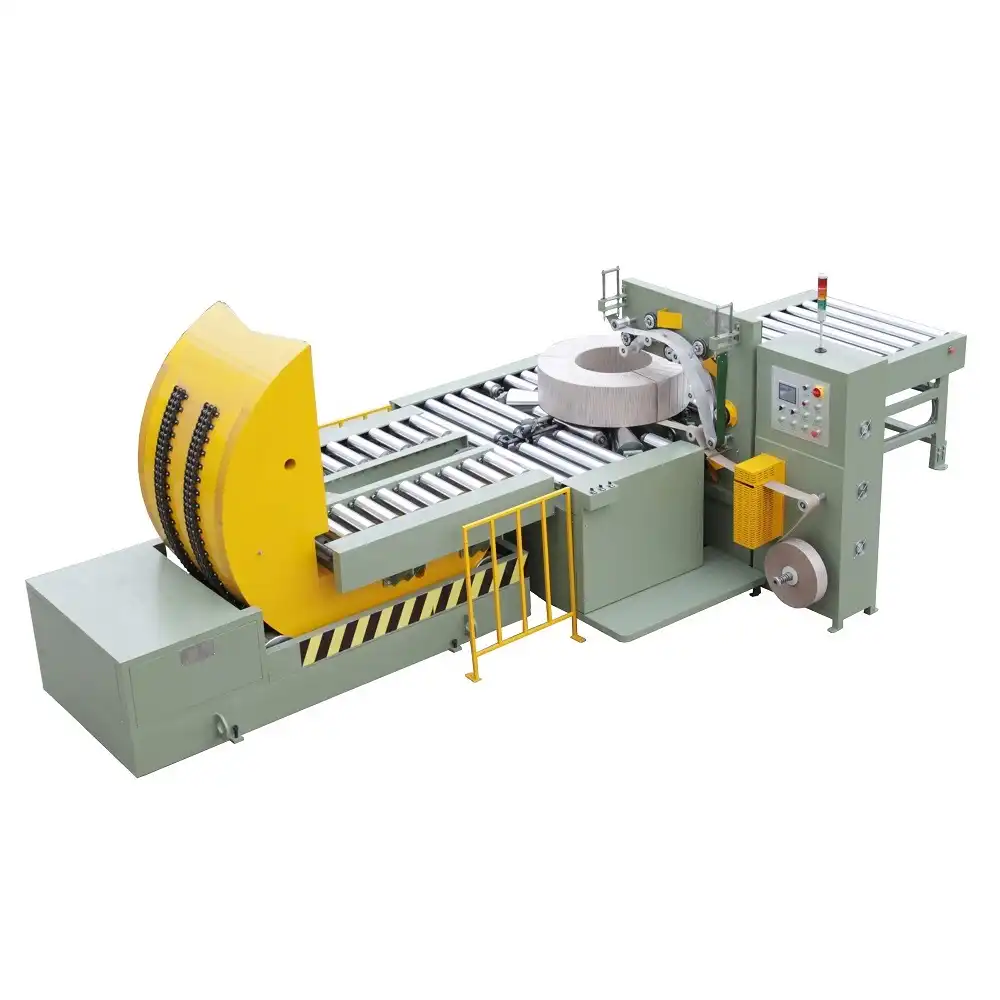

The FPC-400 is an automatic copper coil packing machine designed to improve packaging effectiveness for copper material coils. Also known as a copper wire wrapping machine or cable coil wrapping machine, it features a horizontal wrapping method and is engineered for reliable performance in industrial settings. Our specialized team provides expert solutions to optimize your packaging production line, ensuring seamless operation and problem-solving support.

Key Benefits

Horizontal wrapping method for efficient coil packaging
PLC and HMI control system for easy operation and diagnostics
Conveyor system for smooth coil movement
Online and offline operation modes for flexibility
Automatic fault alarm with panel display and red light indication
Simple data input via PLC for quick setup
Special tension control design for optimal surface adjustment
Anti-wear polyurethane friction wheel cover with mold structure sealing
Wear-resistant rubber rollers for durability
Synchronous wrapping capability for dual packaging materials

Technical Specifications

Specification	Value
Package O D	700-1600mm
Package I D	400-800mm
O D- I D	<800mm
Overlap Scope	10%-80%
Air Supply	5-8kgf/m2
Packing Material	Woven belt \| Paper (ID:50/76mm, OD:150-450mm, Width:90-120mm; ID:50mm, OD:100-150mm, Width:90-120mm)
Working Mode	Automatically

Frequently Asked Questions

Common questions about FPC-400 Automatic Horizontal Coil Wrapping System and our services.

Q:What types of coils can the FPC-400 machine handle?

The FPC-400 is designed for copper material coils with weights ranging from 20 to 3000kg, outer diameters from 700 to 1600mm, and inner diameters from 400 to 800mm, making it suitable for various industrial applications.

Q:How does the machine ensure operator safety?

It features dual safety protection with safety light beams to detect intrusions and safety power locks that mechanically secure cabinet doors during operation, ensuring maximum security for operators.

Q:What control systems are used in this packing machine?

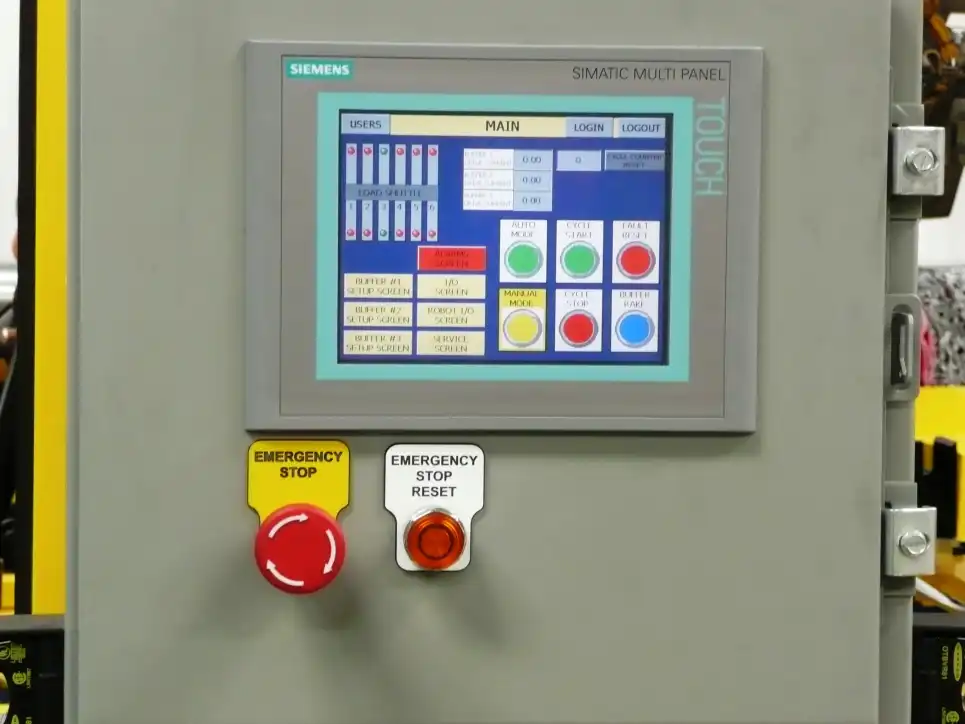

The machine utilizes an advanced PLC and HMI touchscreen control system, allowing for centralized operation, easy parameter setting, status diagnostics, and management of wrapping recipes for efficient packaging.
