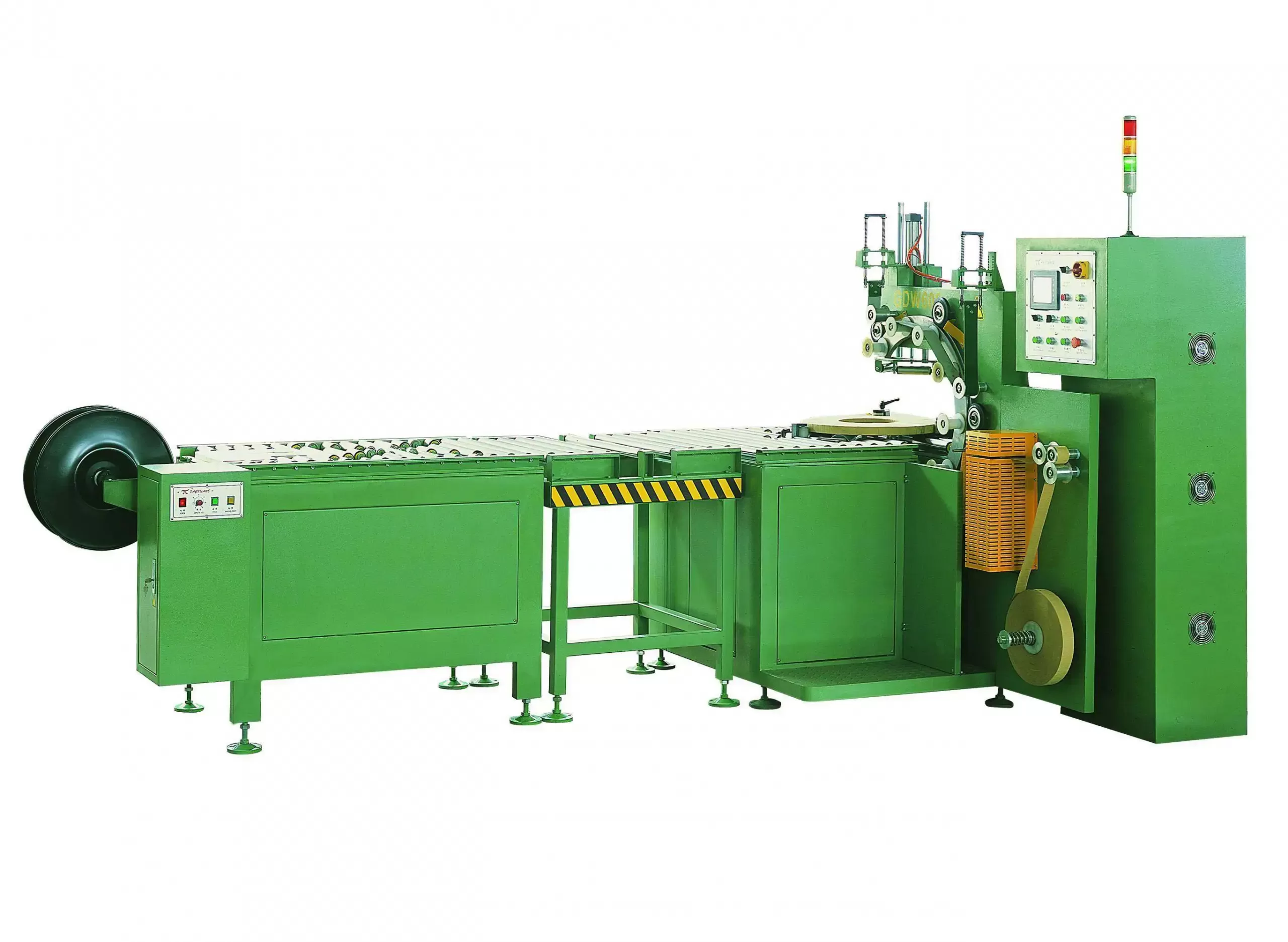

FPC-300 Industrial Copper Coil Wrapping Machine
FPC-300 copper coil wrapper for 50-300mm width coils. Features PLC control, adjustable ring height, and high-quality packaging to eliminate air, dust, and rust.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description

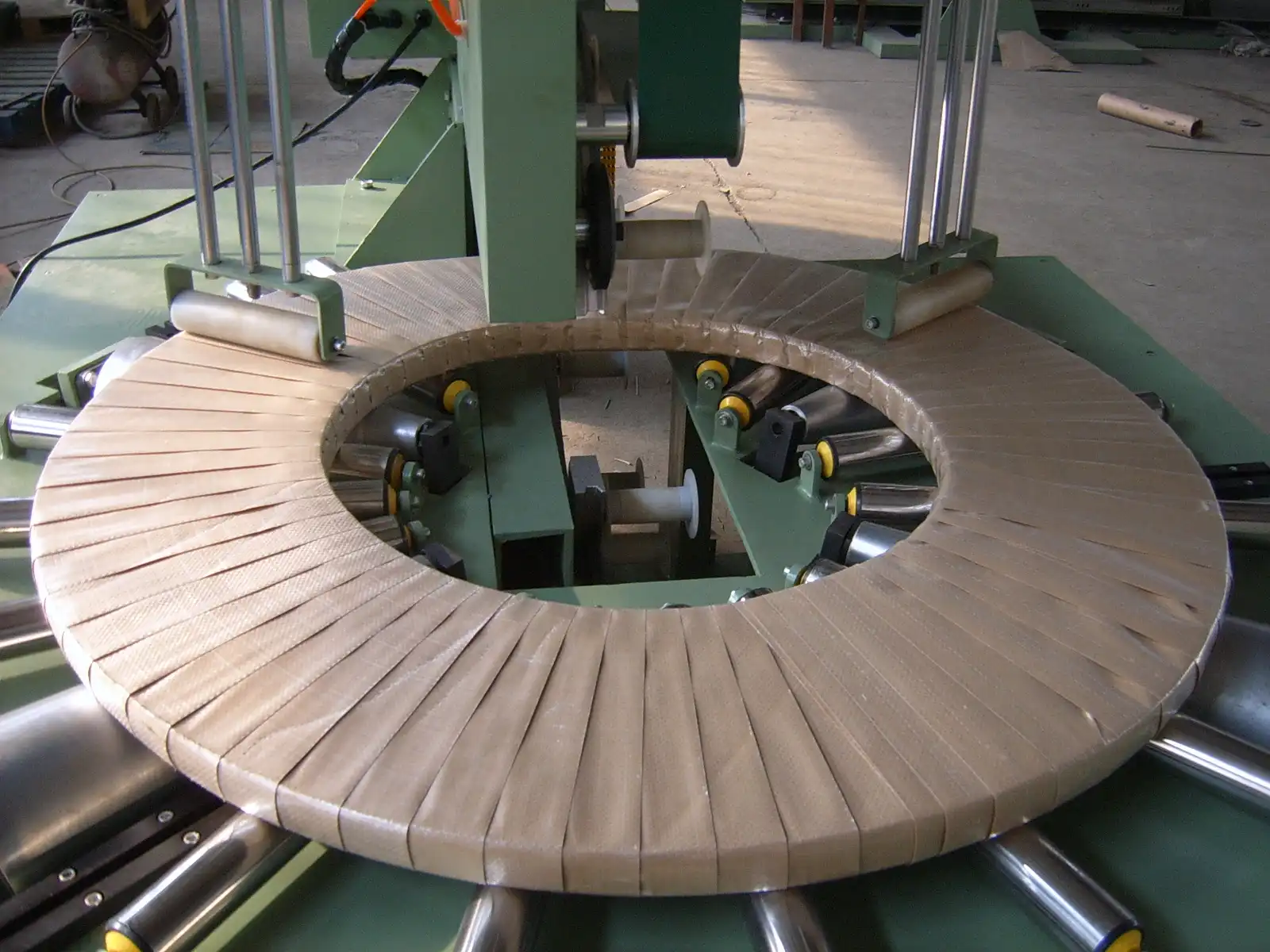

The FPC-300 copper coil wrapper is designed for packaging copper material coils with a width range of 50mm to 300mm. It offers controllable overlap and tight layers, effectively eliminating most air, dust, and rust to ensure high-quality packaging.
Key Benefits
- High-quality horizontal machine design for durability and reliability
- Optional PLC soft program and HMI touch screen for advanced control
- Function buttons on panel with different colors for easy operation
- Red and green indicator lights on the electric cabinet for clear status indication
- Indicator alarms with red light flicking and automatic error display on panel
- Particular tension control system for precise wrapping
- Ring height automatically adjustable or manual for different coil outer diameters
- Friction wheels with anti-wear polyurethane and wrapping ring made of a whole mould structure
- Protective rollers wrapped with wear-resisting rubbers for longevity
- Compatible with two different kinds of wrapping materials for flexibility

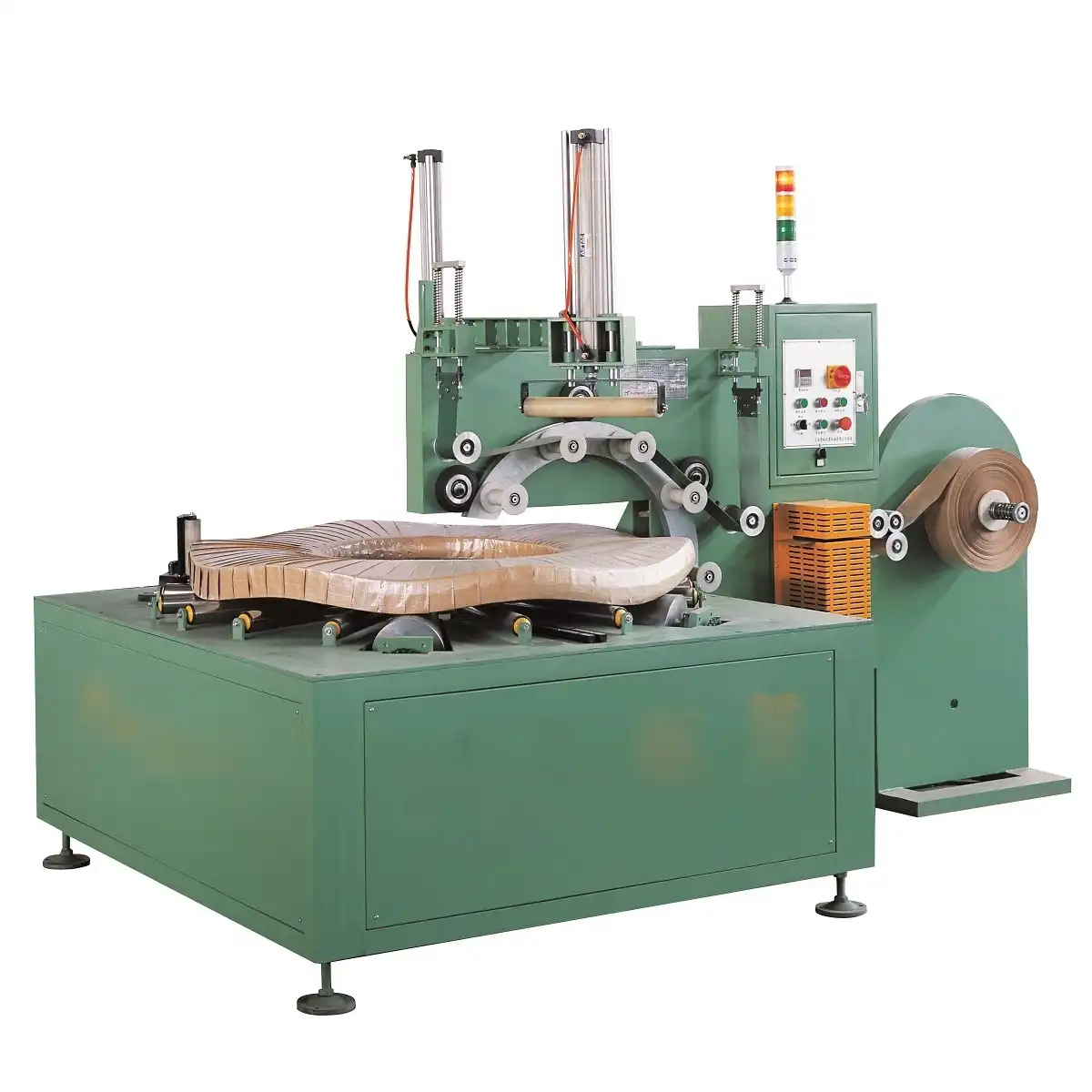

FPC-300 Industrial Copper Coil Wrapping Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Wrapping Speed | 35-50 sec/pcs |
| Rotating Speed | 5-100 r/min |
| Overlap Scope | 10%-90% |
| Power Voltage | 380V/50/60Hz/3ph |
| Air Supply | 5-8 kgf/m² |
| Packing Material | Woven belt, Paper, Stretch film (ID: 50/76 mm, OD: 150-450 mm, Width: 90-120 mm) |
Frequently Asked Questions
Common questions about FPC-300 Industrial Copper Coil Wrapping Machine and our services.
Q:What is the width range of copper coils that the FPC-300 can handle?
Q:What are the key features of the FPC-300 copper coil wrapper?
