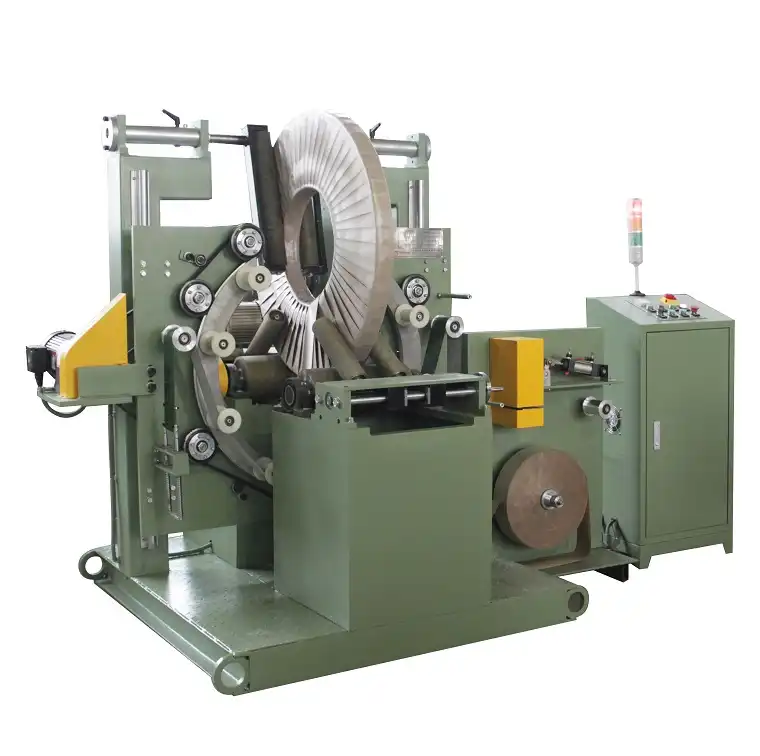

FPC-200 Industrial Copper Coil Wrapping Machine

Name: FPC-200 Industrial Copper Coil Wrapping Machine
Brand: Industrial Solutions
SKU: 212
Availability: InStock

Model:212

Professional copper coil wrapping machinery for precise and automated packaging. Features PLC control, adjustable tension, and customizable designs for industrial efficiency.

Key Specifications

Object Weight:5-500 kg

Package Width:10-200 mm

Roller Speed:2-4 m/min

Wrapping Speed:23-50 sec/pcs

Rotating Speed:10-100 r/min

Power Voltage:380V/50-60Hz/3ph

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This copper coil wrapping machinery is designed for efficient and reliable packaging of copper coils in industrial settings. It offers automated operation with customizable features to meet specific production requirements, ensuring high-quality wrapping with minimal downtime.

Key Benefits

Vertical model with optional high table design for customized setups
PLC control program with optional HMI for user-friendly operation
Dual-language display (English and Chinese) for international use
Indicator lamps (red, green, yellow) for clear status indication
Automatic error listing on control panel screen upon trouble occurrence
Wrapping layers adjustable from one to two with auto material cutting
Tension control system with adjustable overlap from 20% to 90%
Height-adjustable board structure, automatic or manual, for different object ODs
Anti-wear polyurethane material used in whole mould structure for rings
All rollers wrapped with wear-resisting rubber for product protection

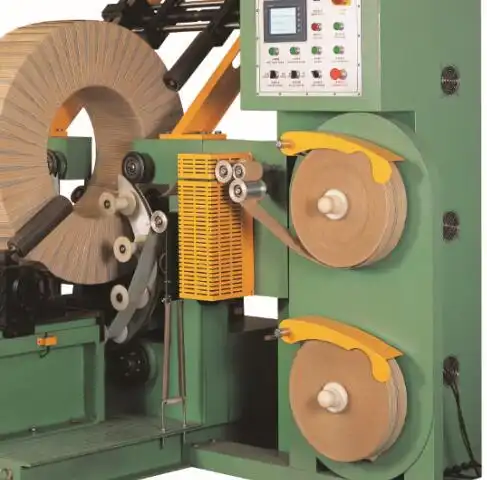

FPC-200 Industrial Copper Coil Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Package O D	600-1200 mm
Package I D	300-800 mm
O D- I D	<800 mm
Overlap Scope	20%-90%
Air Supply	5-8 kgf/m²
Packing Material	Woven belt, Paper, Stretch film (ID: 50/76 mm, OD: 150-450 mm, Width: 90-120 mm)

Frequently Asked Questions

Common questions about FPC-200 Industrial Copper Coil Wrapping Machine and our services.

Q:What types of materials can this machine wrap?

This machine is designed for wrapping copper coils and can handle materials such as woven belt, paper, and stretch film, with adjustable parameters for different packaging needs.

Q:Is the machine customizable to specific requirements?

Yes, the machine can be designed according to your specifications, including optional high table designs and adjustable features to suit various industrial applications.

Q:What control options are available for this machinery?

It features a PLC control program with an optional HMI for enhanced user interface, supporting dual-language displays (English and Chinese) for easy operation.
