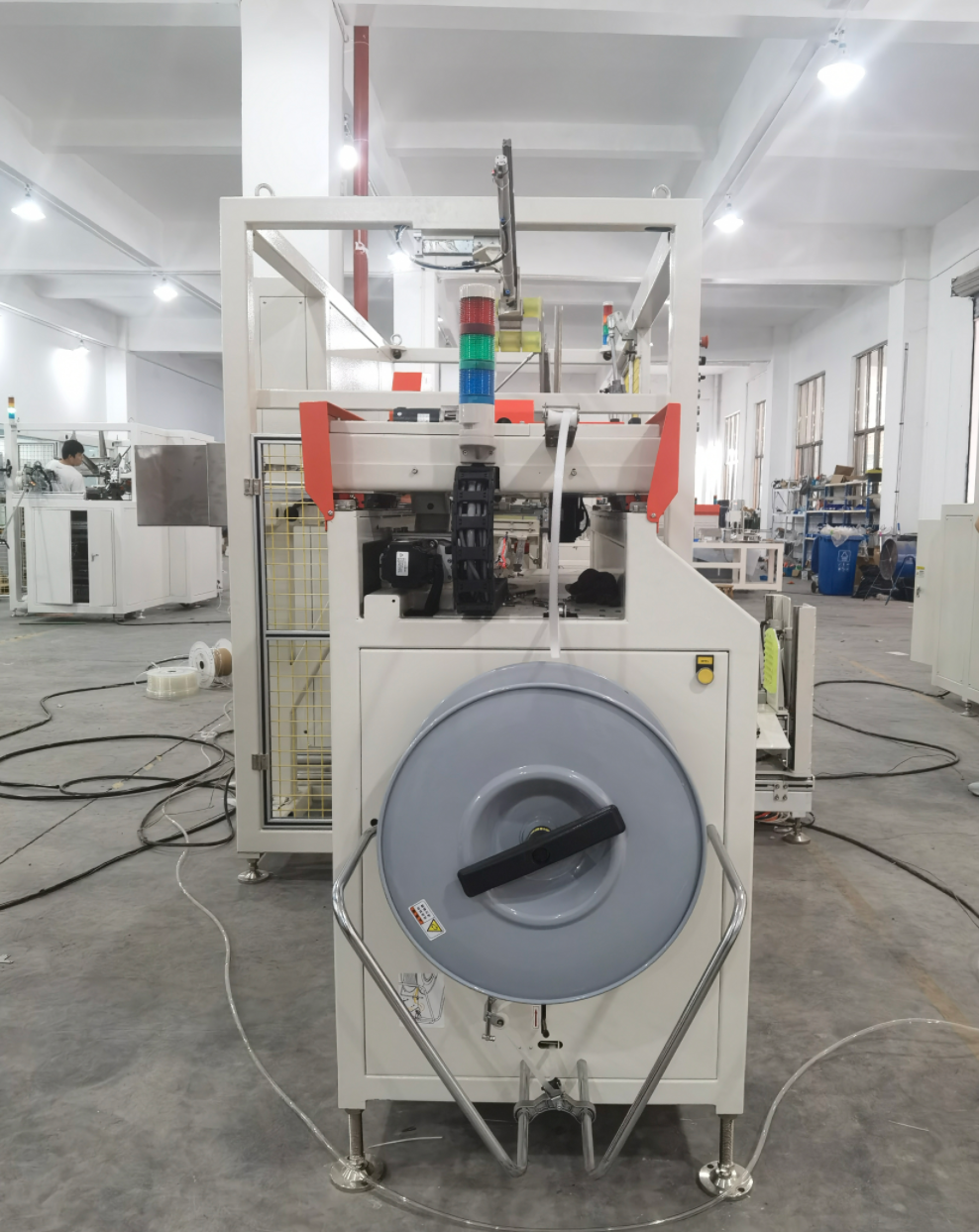

FCL-V400 Vertical Automatic Coiler & Strapping Machine

Name: FCL-V400 Vertical Automatic Coiler & Strapping Machine
Brand: Industrial Solutions
SKU: 237
Availability: InStock

Model:237

Discover our vertical automatic hose winding and strapping machine. It automates coiling, cutting, and strapping with high precision, saving space and boosting packaging efficiency for industrial applications.

Key Specifications

Machine Models:FCL-V400A, FCL-V400B, FCL-V400C

Coil Size ( F C L- V400 A):OD: Φ300-400mm, Height: 40-120mm, ID: Φ200-300mm

Coil Size ( F C L- V400 B):OD: Φ300-500mm, Height: 80-200mm, ID: Φ250-400mm

Coil Size ( F C L- V400 C):OD: Φ300-500mm, Height: 150-300mm, ID: Φ250-400mm

Tube Size ( F C L- V400 A):OD: 4-10mm

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This vertical automatic coiling machine is designed for corrugated hose winding. It is a compact, one-piece device that automates the entire process from fixed-length measurement to winding, cutting, and strapping. With minimal space requirements, it delivers high-speed, efficient performance, meeting stringent packaging standards for industrial use.

Key Benefits

Adjustable feeding tube for consistent coil tension
High-speed winding with multi-axis control for precision layered packing
Adjustable outer diameter and width for versatile applications
Automatic pipe feeding to streamline operations
Seamless station switching without speed reduction in twin-coil setups
Pneumatic control winding baffle for quick and convenient use
Programmable pipeline length via man-machine interface with automatic calculation
Automatic cutting for each specified length
Automatic piping order to ensure spiral winding
Automatic PP 2/4 tape application
Automatic coil ejection and discharge
User-friendly man-machine interface for easy parameter setting and operation

FCL-V400 Vertical Automatic Coiler & Strapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Tube Size ( F C L- V400 B)	OD: 10-20mm
Tube Size ( F C L- V400 C)	OD: 15-30mm
Air Supply	6 bar
Meter Counter ( F C L- V400 A)	10-50
Meter Counter ( F C L- V400 B, F C L- V400 C)	20-100
Coil Feed Style Mode	Automatic
Note	Machine can be modified per different coil size
P L C Brand	SIEMENS
H M I Brand	SIEMENS
Inverter Brand	SIEMENS
Transducer Brand	AUTONICS
Encoder Brand	AUTONICS
Switch/ Button/ Contactor Brand	SCHNEIDER
Cylinder Brand	AIRTAC
Solenoid Valve Brand	AIRTAC
Gear Motor Brand	TUNGLEE

Frequently Asked Questions

Common questions about FCL-V400 Vertical Automatic Coiler & Strapping Machine and our services.

Q:What is the primary function of this automatic hose winding and strapping machine?

This machine automates the coiling, cutting, and strapping of corrugated hoses, handling tasks from length measurement to packaging with high efficiency and precision.

Q:Can the machine be customized for different coil sizes?

Yes, the machine can be modified to accommodate various coil sizes, as indicated in the specifications, allowing for flexibility in industrial applications.

Q:What brands are used for the key components of this machine?

The machine features high-quality components including SIEMENS for PLC, HMI, and inverter; AUTONICS for transducer and encoder; SCHNEIDER for switches and contactors; AIRTAC for cylinders and solenoid valves; and TUNGLEE for the gear motor.
