FCL-V1000 Automatic Coiling and Strapping System

Name: FCL-V1000 Automatic Coiling and Strapping System
Brand: Industrial Solutions
SKU: 502
Availability: InStock

Model:502

Discover our fully automatic pipe coiler and winder with strapping machine, designed for efficient coiling and strapping of hoses and pipes. Features PLC control, adjustable speed, and high success rates for industrial applications.

Specifications

Model:FCL100 / FCL1000

Pipe O D:15-45 mm

Coil Head:1 or 2

Coil I D:400-1000 mm

Coil O D ( Max):1000 mm

Coil Width ( Max):350 mm

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

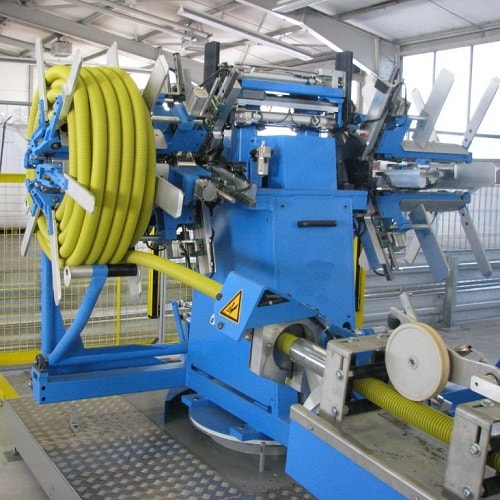

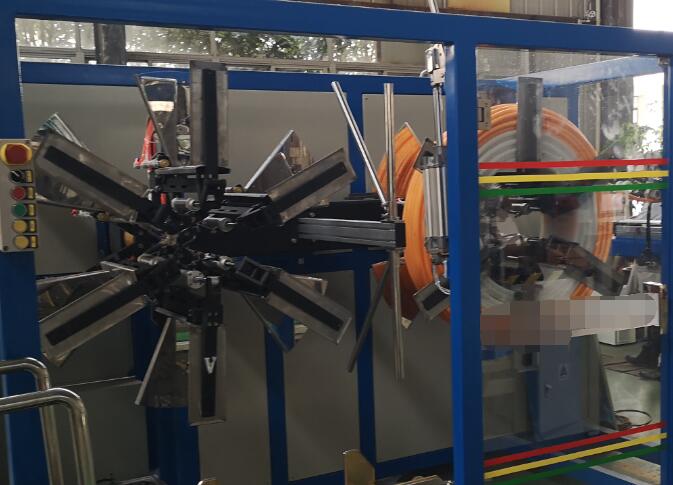

The Fully Automatic Pipe Coiler and Winder with Strapping Machine is an advanced packing line specialized for corrugated hoses and pipes, offering seamless automation for coiling and strapping processes. This machine integrates a coiler and strapper to streamline operations, enhancing productivity and ensuring neat, secure packaging. With PLC and HMI control systems, it supports automatic and manual modes, allowing for precise tension control and customizable parameters. Designed for reliability, it includes features like automatic fault alarms, sensor-based detection, and adjustable speed via inverter, making it ideal for industrial settings requiring high efficiency and minimal manual intervention.

Key Benefits

PLC and HMI control system for automatic operation with two working modes: Auto and manual
Tension control for pipe infeeding to ensure tight and orderly coiling
Automatic pipe length calculation and cutting with sensor-based position detection
Adjustable speed via inverter and two-wheel continuous winding system
Pneumatic discharge of pipe coils and automatic displacer for efficient handling

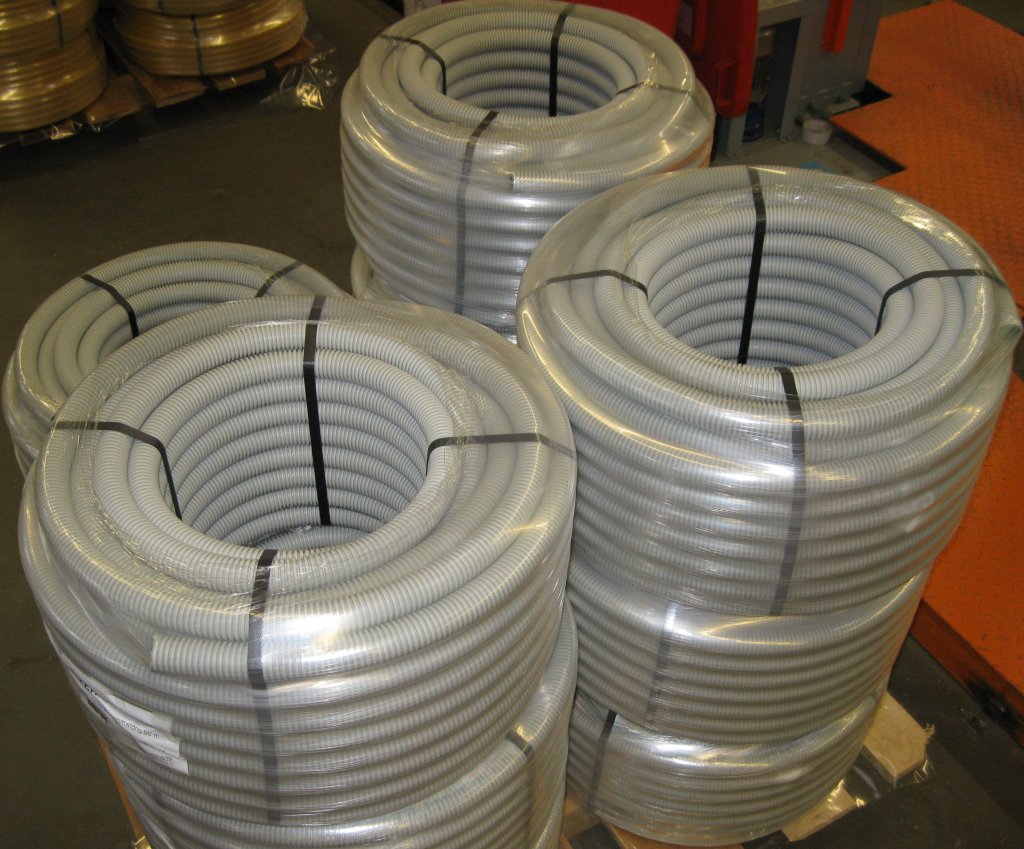

Strapping machine with automatic strap application at 3/4 positions and good tension control to protect pipe surfaces
High success rate up to 95% with automatic fault alarms and easy, safe operation for operators

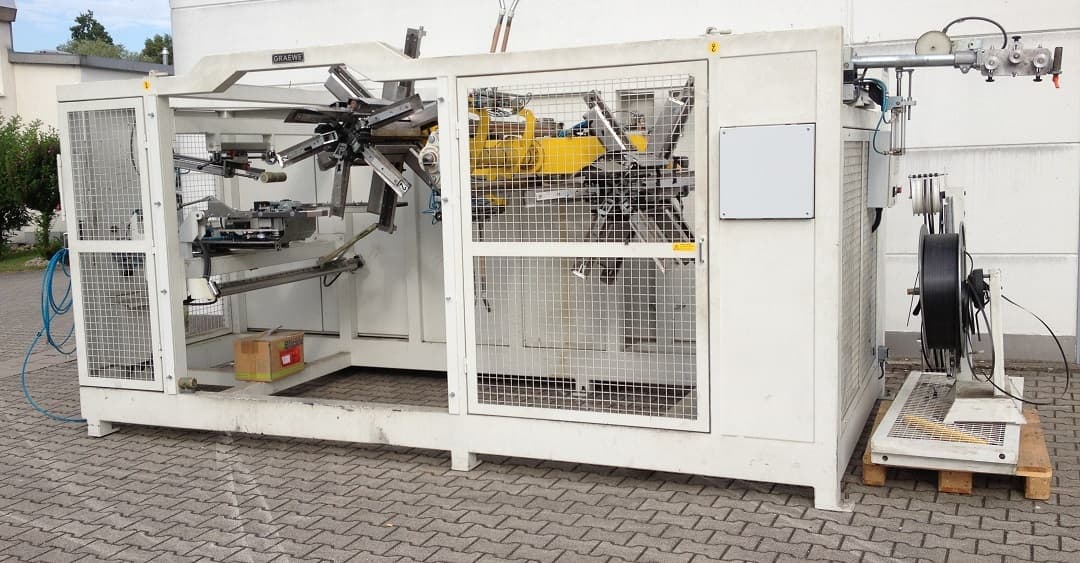

FCL-V1000 Automatic Coiling and Strapping System Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Frequently Asked Questions

Common questions about FCL-V1000 Automatic Coiling and Strapping System and our services.

Q:What types of pipes is this machine designed for?

This machine is specialized for coiling and strapping corrugated hoses and pipes, including HDPE pipes, with adjustable settings for various diameters.

Q:How does the automatic operation work?

The machine uses a PLC and HMI control system to automate processes such as pipe infeeding, coiling, cutting, and strapping, with options for auto or manual modes and parameter customization.

Q:What safety features are included?

It includes an automatic alarm system for fault detection, sensor-based position monitoring, and tension control to protect pipe surfaces during strapping, ensuring safe and reliable operation.
