FCL-S1000 Automatic Coiling & Strapping Machine

Name: FCL-S1000 Automatic Coiling & Strapping Machine
Brand: Industrial Solutions
SKU: 504
Availability: InStock

Model:504

Discover our automatic pipe coiler with film wrapping machine, designed for vertical coiling and strapping of pipes and hoses. Features PLC control, adjustable coiling, and CE compliance to boost productivity.

Key Specifications

Pipe Diameter:Φ16, 20, 25, 32 mm

Pipe Coil Width:150-250 mm

Pipe Coil Weight:3-20 kg

Coiling Speed:Max. 100 m/min

Power Voltage:AC 380V, 50HZ, 3 phase 5 wires

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This automatic pipe coiler with film wrapping machine is specialized for vertical coiling and strapping, ideal for applications such as pipe coils and hose coils. After coiling and strapping, the pipe coils are well-shaped, ensuring neat and secure packaging. The machine saves labor and improves work efficiency, playing a key role in production processes and is popular in the modern packaging industry.

SHJLPACK automatic pipe coiling and strapping machines all conform to CE guidelines and are designed using the latest technology and design criteria for industrial use. We provide comprehensive packing solutions for the pipe industry, including feeding and coiling machines.

Key Benefits

Online connection to extruder for seamless integration
Strong driving system for coiling big and hard pipes
Adjustable coiler arm for different inner diameters and widths
PLC and HMI control system for automatic operation
Two working modes: Auto and manual for flexibility
Tension control for tight coiling during pipe infeeding
Parameter setting via PLC program for customization
Automatic pipe length calculation and cutting
Automated winding system for consistent results
Automatic alarm system for fault detection
Sensor-based automatic pipe position detection
Adjustable speed via inverter for optimal performance
Automatic displacer for efficient pipe feeding
Orderly and nicely coiled pipe rolls
Pneumatic pushing device for coil discharge
Hydraulic cutter for cutting strong pipes

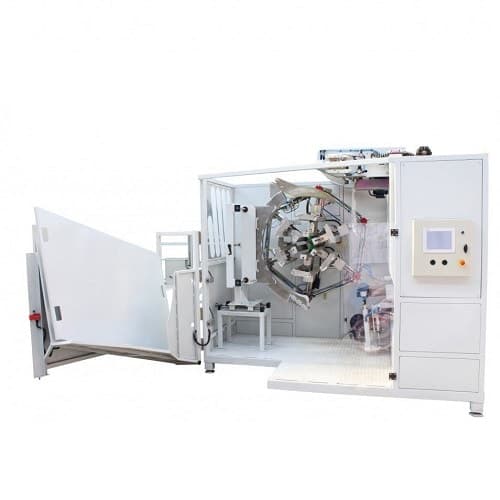

FCL-S1000 Automatic Coiling & Strapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Pipe Coil I D	400-800 mm
Pipe Coil O D	600-1000 mm
Coil Feed Style Mode	Hold coil type
Meter Counter	30-100 meters
Strap Position	3 straps
Wrapping Material	LLDPE film, Width: 300-500 mm, Thickness: 20-40 micron

Frequently Asked Questions

Common questions about FCL-S1000 Automatic Coiling & Strapping Machine and our services.

Q:What types of materials can this machine handle?

This machine is designed for coiling and wrapping pipes and hoses, typically with diameters from Φ16 to 32 mm, and uses LLDPE film for wrapping.

Q:Is the machine compliant with safety standards?

Yes, the automatic pipe coiling and strapping machine conforms to CE guidelines, ensuring it meets European safety and industrial standards.

Q:Can the coiling parameters be adjusted?

Yes, parameters such as coiling speed, pipe length, and coil dimensions can be set via the PLC program, allowing for customization based on production needs.
