What is the main function of this machine?

This machine automatically compacts and straps wire rod coils for efficient packaging, supporting both PET and steel strapping with full automation and manual operation modes.

How many straps does it apply per coil?

It applies 4 straps per coil automatically after the compacting process.

What components are included in the line?

The line includes compacting frames, block roller, strapping heads, electric cabinet, and pneumatic and hydraulic installation for comprehensive operation.

Can it operate manually?

Yes, it features integrated manual and automatic switches, allowing for flexible operation based on user needs.

What safety features does it have?

It includes overload protection, automatic pressure release, and a stable pressure adjust valve to ensure safe and reliable performance.

Automatic Wire Rod Compacting and Strapping Machine for Efficient Coil Packaging

Name: Automatic Wire Rod Compacting and Strapping Machine
Brand: Industrial Solutions
SKU: 992
Availability: InStock
Rating: 5 (95 reviews)

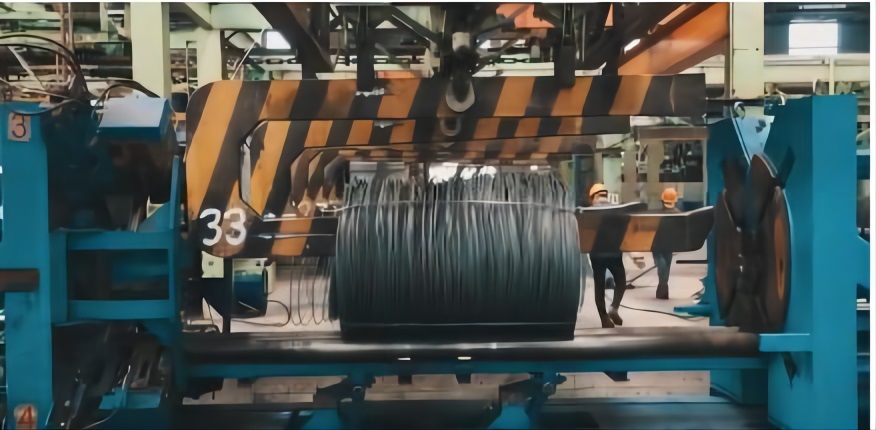

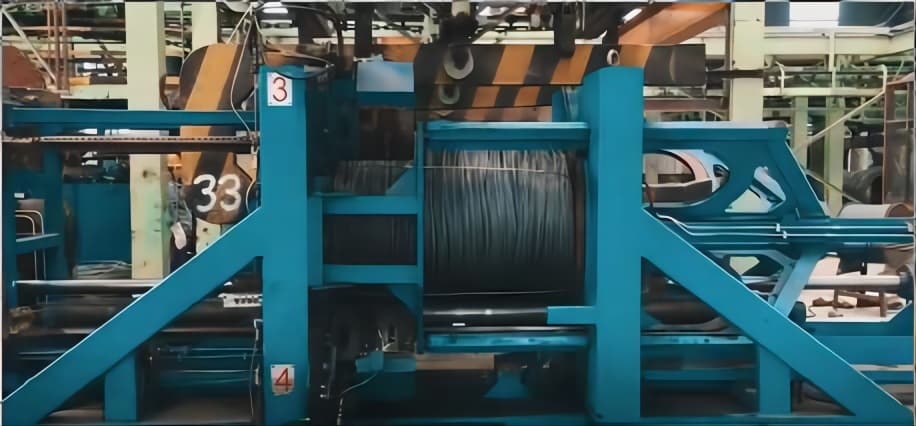

This Wire Rod Strapping & Compacting Line includes compacting frames, block roller, strapping heads, electric cabinet, pneumatic and hydraulic installation. This line will be fully automatic with manual operations mode. After connecting with C-hook handling line, the wire rod coil should move the wire coil on the compressing station manually/automatically. The c-hook along with the coil will be displaced to the position of the strapping table for strapping.

Wire rod coil hoisted to compressing station by crane with C hook. Automatic position checking and placing the rod coil on the block roller. Automatic compressing the wire rod coil. After coil compacting, PET/steel strapping head auto strapping 4 straps per coil. The strapped rod coil moves out to the compressing station by crane. One coil finished, cycle operation.

Wire rod coil was automatically compressed, the whole packing line compression stroke can be set, the compression mechanism is reserved place port for the PET strapping or steel belt. There is a slot or interface for strapping monitor and setting which is able rotate rod coil in any Angle.
