Automatic Wire Coil Compressing and Strapping Packing Line
Boost wire coil packaging efficiency with our Automatic Wire Coil Compressing and Strapping Machine. Features 8 coils/hour capacity, HDPE protection, and 24/7 operation for labor savings.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description

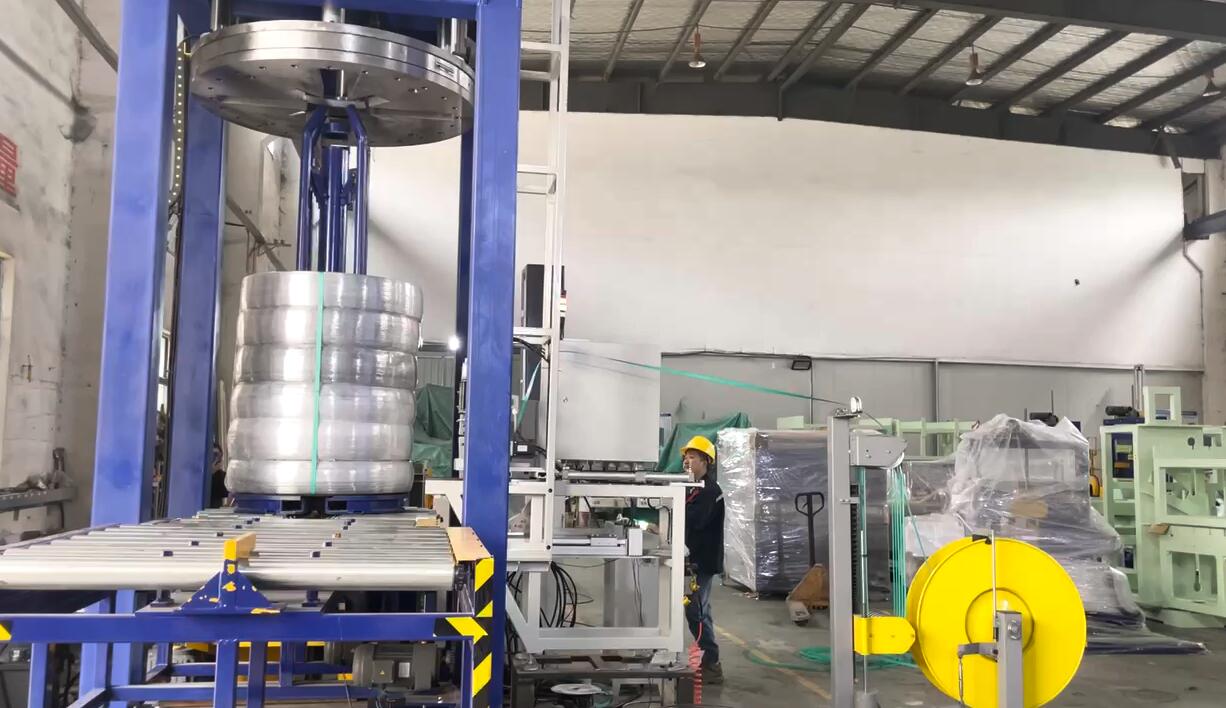

The Automatic Wire Coil Compressing and Strapping Machine Packing Line is designed for high-efficiency packaging of wire coils with baskets. It performs automatic strapping in multiple positions, compacts coils vertically using a hydraulic system, and handles up to 8 coils per hour with 4 radial straps per coil. The machine features HDPE-protected contact zones to prevent damage, adjustable settings via inverters, and is built for continuous 24/7 operation, improving packaging efficiency while saving space and labor costs.

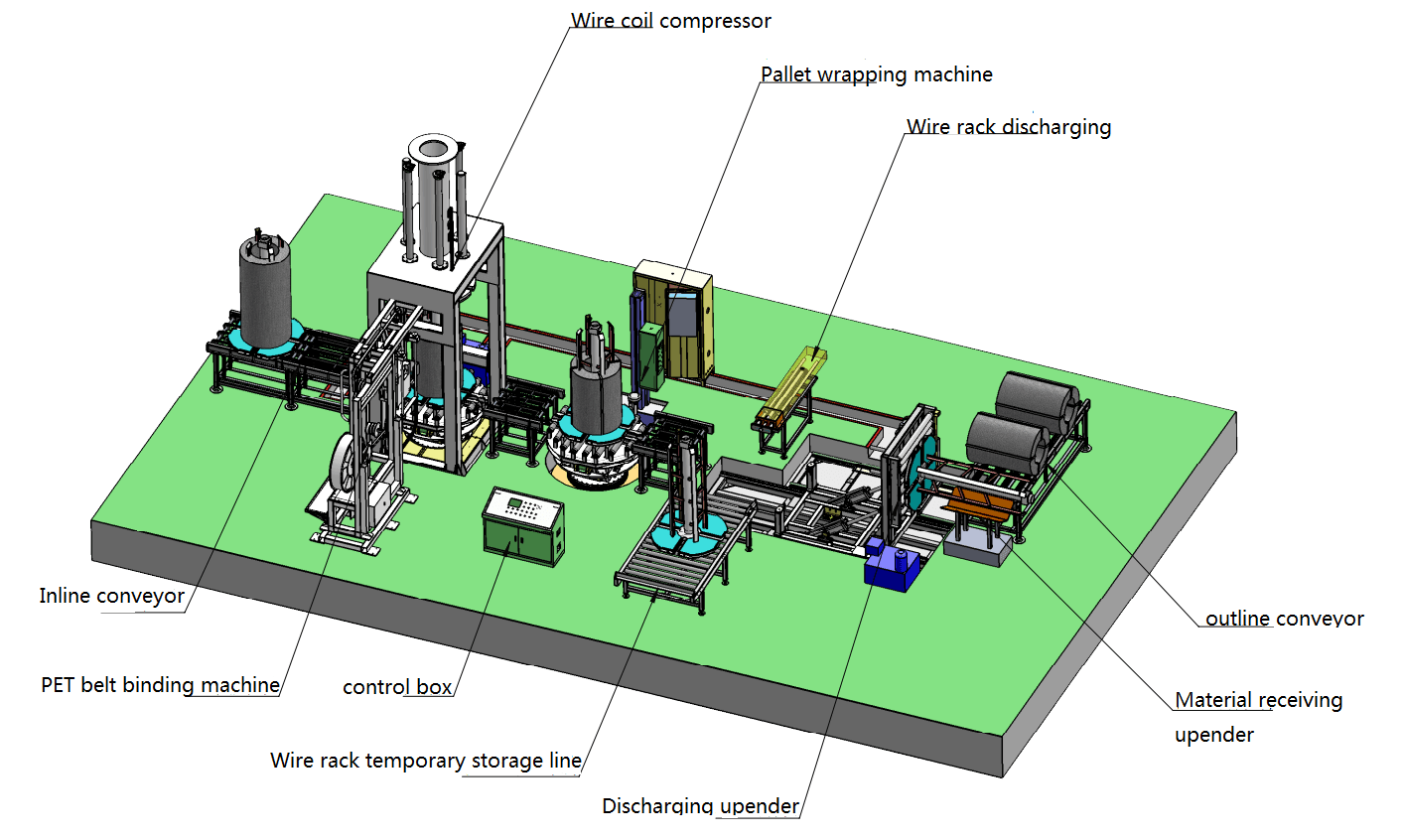

Operation involves placing a basket with a wire coil on the conveyor, which moves it to the compacting station, followed by automatic compacting and transfer to the strapping table. The line includes components like a compacting device, hydraulic pump station, and conveyor, ensuring smooth and safe handling with features like soft start/stop and multiple limit protections.
Key Benefits
- Handles up to 8 coils per hour with 4 radial straps each
- HDPE-protected contact zones to prevent wire coil damage
- Designed for 24/7 continuous operation with adjustable settings
- Hydraulic-driven compacting system for vertical coil compression
- Includes conveyor for automated loading and unloading
- Features soft start/stop and multiple safety protections
- Uses polyester straps with adjustable tension and sealing
- Solid structure with international standard bearings for durability
Automatic Wire Coil Compressing and Strapping Packing Line Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Sealing Type | Friction-vibration joint, located at front of coil |
| Joint Efficiency | Approx. 75-80% of strap breaking load |
| Strap Tension | 500N - 1000N (adjustable) |
| Hydraulic Maximum Pressure | 105 bar |
| Hydraulic Work Pressure | 100 bar |
| Hydraulic Oil Type | Hydraulic oil (e.g., VESTA HLP-46) |
| Work Temperature | <45°C |
| Pneumatic Air Quality | 50u filtered and lubricated (e.g., VESTA HLP-22) |
| Pneumatic Maximum Temperature | 60°C |
| Pneumatic Maximum Pressure | 10 bar / 1MPa |
| Pneumatic Work Pressure | 6 bar / 0.6 MPa |
| Pneumatic Nominal Flow | Approx. 4800 Nl/min at 6 bar |
| Automata | Siemens S7-200 |
| Solenoid Valves and Sensors | DC24V |
Frequently Asked Questions
Common questions about Automatic Wire Coil Compressing and Strapping Packing Line and our services.
Q:What is the production capacity of this machine?
Q:How does the machine protect wire coils during processing?
Q:Can this machine operate continuously?
Q:What type of straps does the machine use?
