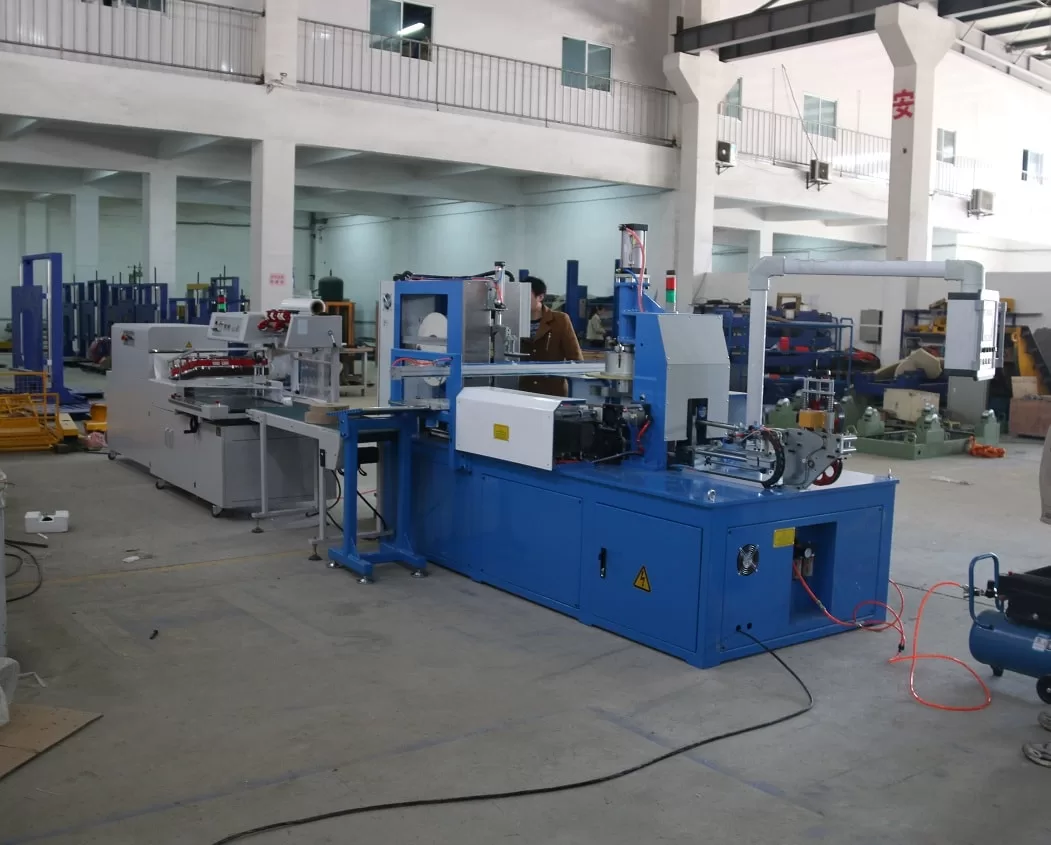

Automatic Cable Winding and Packing Machine

Name: Automatic Cable Winding and Packing Machine
Brand: Industrial Solutions
SKU: 1804
Availability: InStock

Model:1804

Streamline cable production with our Automatic Cable Winding and Packing Machine. Features PLC control, adjustable coiling, and error detection for reliable, high-speed packaging.

Specifications

Coiling Size:ID: 140-250 mm (Fixed), OD: 200-600mm, Height: 60-180mm

Cable Diameter:2-20mm

Line Speed:200m/min

Coiling Speed:2-2.5 coils/min

Air Supply:6bar

Coil Feed Style Mode:Hold coil type

Meter Counter:0.01m-500m

Power Voltage:AC 380V, 50HZ, 3 phase

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This equipment automates the processes of calculating cable length, coiling, and cutting. It also facilitates the automatic transfer of the coiled cable to the next processing station, such as film wrapping or shrinking machine can be added for coil packaging. The parameters can be configured through the PLC control program.

Key Benefits

Automated Control: Utilizes PLC and HMI for seamless automatic operation.
User-Friendly Interface: Parameters can be easily set in English via the control program.
Coiling Diameter Adjustment: Coiling outer diameter (OD) is adjustable to accommodate different requirements.
Customizable Coiling Length: Cable cutting length can be modified according to specifications.
Stabilizing Guards: Equipped with two protective guards to secure move the coiled tube safely.
Automatic Error Detection: Features an alarm system that activates in case of malfunctions.
Position Detection: Sensors automatically detect the position of the tube.
Stable Coiling Mechanism: A pressing device ensures that the pipe coil remains fixed and stable during processing.
Tension Control: Maintains tension to prevent deformation during coiling.
Integrated Tension Control: Tension control is also integrated into the packing line.
Automatic Unwinding: The unwinding machine regulates tension and synchronizes tube feeding with coiling.
Reel Compatibility: Different coil reels must be used based on the specific inner diameter requirements.

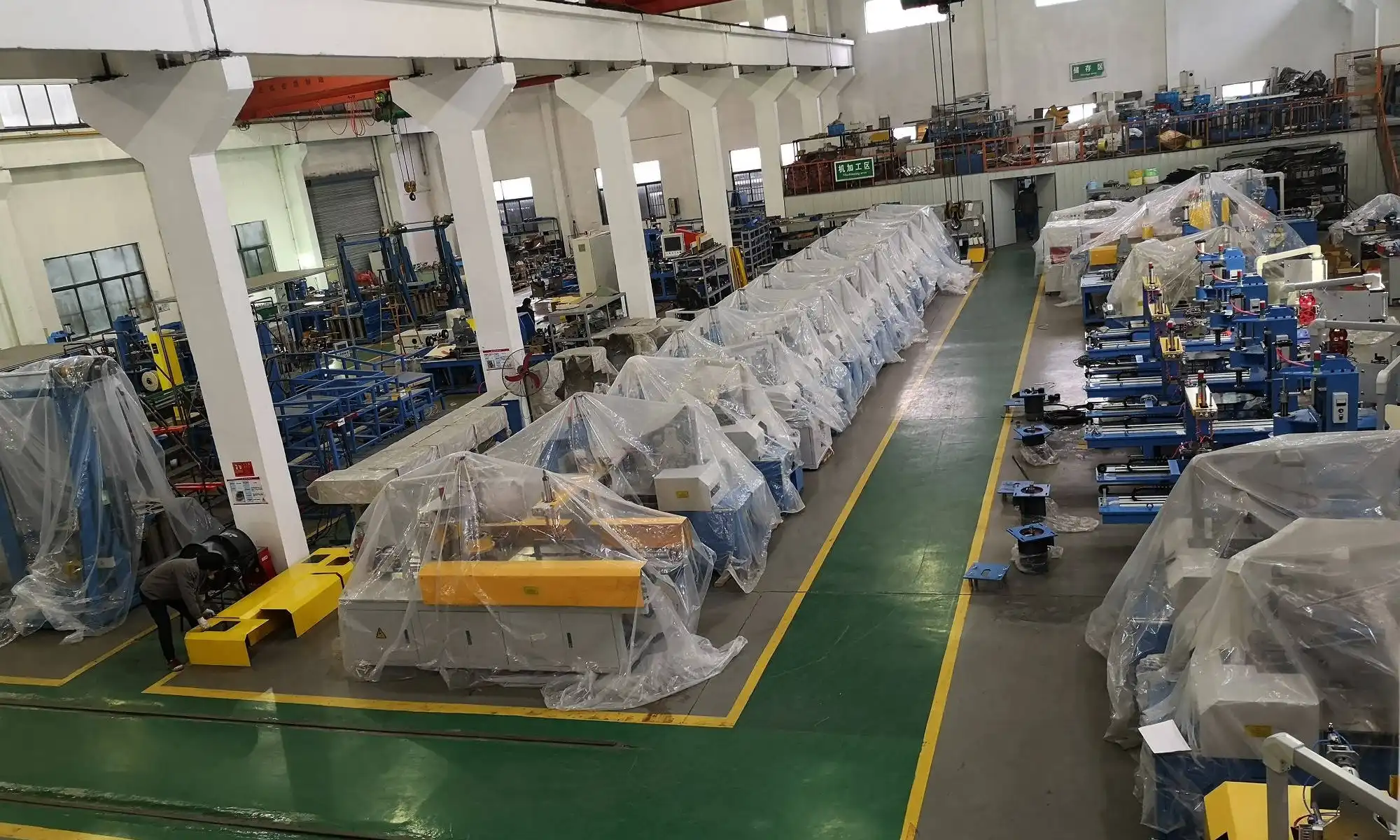

Automatic Cable Winding and Packing Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Frequently Asked Questions

Common questions about Automatic Cable Winding and Packing Machine and our services.

Q:What is the lead time for the Automatic Cable Winding and Packing Machine?

Our standard manufacturing lead time for the Automatic Cable Winding and Packing Machine is typically 2-4 weeks, depending on customization requirements and current production capacity. Please contact our sales team for a precise timeline.

Q:Does the Automatic Cable Winding and Packing Machine support custom voltage requirements?

Yes, as a factory-direct manufacturer, we can customize the electrical system of the Cable packing machine to match your local voltage standards (e.g., 220V/380V/415V/440V, 50Hz/60Hz).

Q:What kind of after-sales support is provided for this machine?

We provide comprehensive after-sales support including remote technical assistance, video installation guides, and a 12-month warranty on core components. Spare parts are available for global shipping.

Q:Can this machine be integrated into an existing packing line?

Absolutely. The Automatic Cable Winding and Packing Machine is designed with flexible PLC controls and conveyor interfaces, making it suitable for both standalone operation and integration into automated packaging lines.
