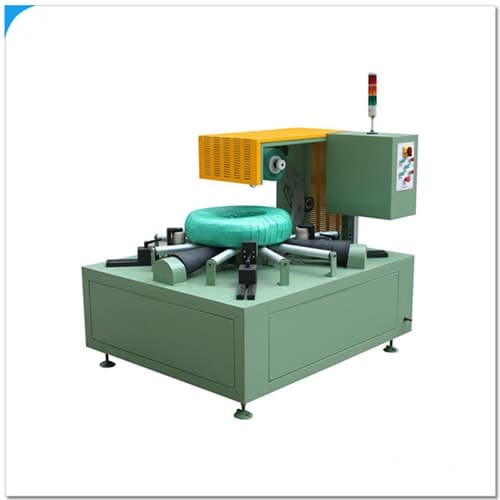

FPCA 200 Automated Cable Coil Wrapping Machine

Name: FPCA 200 Automated Cable Coil Wrapping Machine
Brand: Industrial Solutions
SKU: 186
Availability: InStock

Model:186

Discover our multifunctional cable coil wrapping machine for stretch film and PVC packaging. Features PLC control, adjustable speeds, and CE standards. Enhance packing speed with dust and moisture protection.

Key Specifications

Power Supply:2.0 kW

Cable Coil Inner Diameter:150-400 mm

Cable Coil Outer Diameter:250-500 mm

Cable Coil Width:80-200 mm

Cable Coil Weight:2-50 kg

Ring Speed:10-120 r/min

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

This multifunctional cable coil wrapping machine is designed for cable packing using stretch film or PVC film with a slight adhesive to seal packages against dust and moisture. It integrates seamlessly with coiling machines at the end of cable extruders to improve packing efficiency. The machine features a roller station that positions cable coils with the eye to the sky, ensuring smooth wrapping even for irregular shapes.

The machine comprises three main components: a ring and driving device, supportive roller and drive device, and an electric control system. It delivers a professional-looking package surface with regular overlap, allowing coils to be wrapped without the need for strapping.

Key Benefits

PLC and HMI for automatic material calculation and easy operation
Stores different specifications in program for versatile use
Panel operation simplifies maintenance and adjustments
Special design facilitates easy manual loading and unloading
Ring soft stop, start, and reset for smooth operation
Manual and automatic working modes for flexible control
Converters adjust ring and roller speeds for customization
Adjustable overlapping rate of packing material as required
Foot switch control for manual operation convenience
Motor overcurrent protection ensures safety and durability
Supportive rollers prevent coil shaking during wrapping
Automatic packing machinery cutting and feeding for efficiency
Derived supportive roller aids in turning operations
Four groups of electric arms adjust wire reel size and winding center point
CE standard control panel for compliance and reliability
Adjustable ring and wheel friction for long service life

FPCA 200 Automated Cable Coil Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Model	FPCA-200
Voltage	AC 380V/50Hz (or as required)
Packing Material	PE, Stretch film, PVC
Wrapping Speed	20-30 seconds per piece
Overlapping Rate	20-80%

Frequently Asked Questions

Common questions about FPCA 200 Automated Cable Coil Wrapping Machine and our services.

Q:What types of films can this machine use for cable wrapping?

This machine is compatible with PE stretch film and PVC film, which includes a slight adhesive to provide a sealed package that protects against dust and moisture.

Q:How does this machine integrate with existing cable production lines?

It is designed to cooperate with coiling machines at the end of cable extruders, enhancing packing speed and efficiency by automating the wrapping process.

Q:What safety features are included in this wrapping machine?

Safety features include motor overcurrent protection, CE standard control panel, and adjustable ring and wheel friction to ensure reliable and long-lasting operation.
