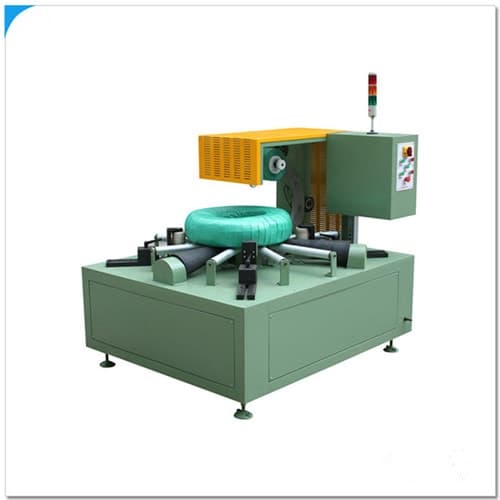

FPCA100 Horizontal Cable Coil Packing Machine
High-speed cable wire wrapping machine for small ID coil film packing. Features easy operation, adjustable ring speed, and safety protections. Saves 80% labor costs.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The Cable Wire Wrapping Machine is designed for small ID cable coil film packing, with a minimum inner diameter of 90mm, ensuring high-speed and safe packaging. It addresses labor cost increases and shortages in the wire cable production industry by providing an innovative, cost-efficient solution. This horizontal type machine packs cable coils, copper coils, and steel coils in an eye-to-sky position, using supportive rollers for 360-degree rotation without shifting.
Key Benefits
- Easy operation for non-skilled operators
- Stores different cable info and specifications for packing selection
- Press down device holds the coil during wrapping
- Manual loading and unloading for easy coil handling
- Adjustable ring speed from 1-100r per minute
- Strong and durable ring structure
- PU surface on supportive and driving rollers
- Overlapping rate of 20-80%
- Special design for small cable coil ID
- Overcurrent protection for safety
- Shield and fence for operational safety
- Automatic packing machinery cutting and feeding
- Derived supportive roller for turning
- Four groups of electric arms adjust wire reel size and winding center point
- Indicator alarms automatically during trouble occurrences
- Encoder checks roller speed and coil positioning
- Packing materials include LLDPE and PVC fixed on the ring
FPCA100 Horizontal Cable Coil Packing Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Voltage | AC 380/60 Hz (or custom requirement) |
| Cable Coil I D | 90-250 mm |
| Cable Coil O D | 150-400 mm |
| Packing Material | PE/Stretch film/PVC |
| Overlapping Rate | 20-90% |
Frequently Asked Questions
Common questions about FPCA100 Horizontal Cable Coil Packing Machine and our services.
Q:What is the minimum inner diameter for cable coils that this machine can wrap?
Q:How does this machine help reduce labor costs?
Q:What types of coils can this machine pack?
