Semi-auto pallet wrapping machine

A400 Automatic Pallet Stretch Wrapping Machine

Name: A400 Automatic Pallet Stretch Wrapping Machine
Brand: Industrial Solutions
SKU: 114
Availability: InStock

Model:114

Industrial pallet stretch wrapper with automatic film cutter for secure shipping. Features PLC control, pre-stretch up to 300%, and handles loads up to 2000kg. Ideal for various industries.

Key Specifications

Max Load Weight:2000kg

Turntable Rotation Speed:13 rpm (adjustable)

Turntable Diameter:2000mm

Power Supply Voltage:220V 1 Phase 50 Hz

Tower Motor Power:0.4 W

Pre-stretch Motor Power:0.35 W

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

Pallet stretch wrappers are used to wrap pallets with stretched film, equipped with an automatic film cutting device. The film provides additional support during shipping and storage to prevent tipping, spilling, or damage. Additionally, the load on the package can be easily separated and identified. This pallet stretch packaging machine is widely used in chemical, electronics, building materials, home appliances, paper, food, beverage, and other industries.

Key Benefits

Automatic film cutter for efficient wrapping
PLC system with pre-stretch controller for precise tension control
Adjustable turntable speed and wrap settings for customization
Emergency stop button and lockable electrical disconnect for safety
Handles loads up to 2000kg with a maximum height of 1800mm

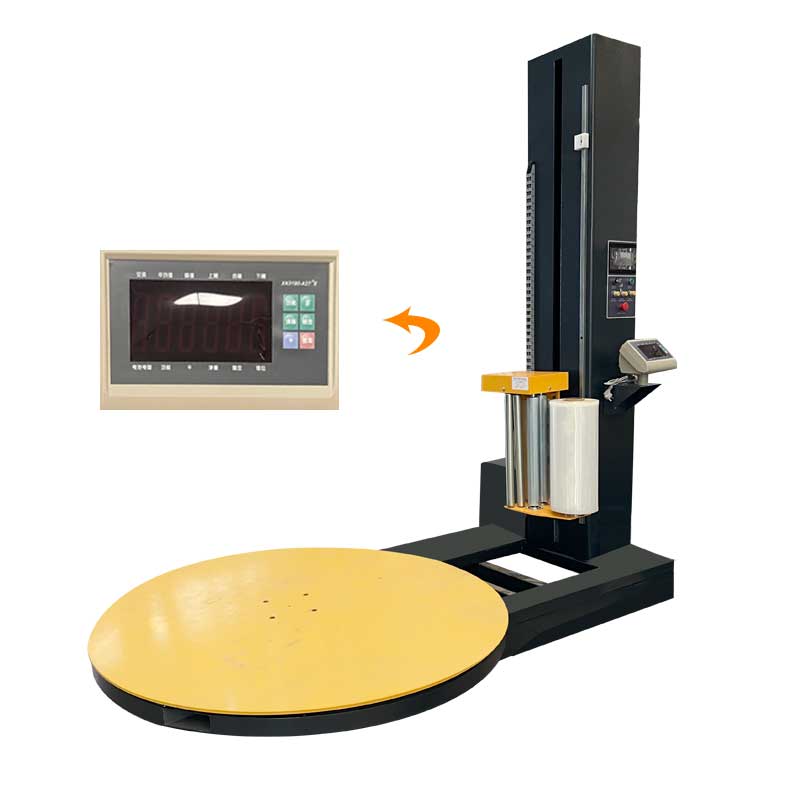

A400 Automatic Pallet Stretch Wrapping Machine Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Model	A400
Max Load Size	1500mm x 1500mm
Min Load Size	500mm x 500mm x 500mm
Max Load Height	1800mm
Turntable Height	100mm
Turntable Motor Power	0.75 W
Packing Efficiency	20-40 loads/hour
Machine Weight	650kg
Film Roll Height	500mm
Film Thickness	0.025mm
Pre-stretch Level	250% (optional 100% to 300%)

Frequently Asked Questions

Common questions about A400 Automatic Pallet Stretch Wrapping Machine and our services.

Q:What industries is this pallet stretch wrapper suitable for?

This machine is widely used in chemical, electronics, building materials, home appliances, paper, food, beverage, and other industries for secure pallet wrapping.

Q:What safety features does the machine include?

It features an emergency stop button, lockable electrical disconnect, advanced lock door control on the film loading carriage, and a safety shut-off switch for automatic power shutdown during film loading.

Q:Can the wrapping settings be customized?

Yes, the machine offers adjustable wrap settings including re-wrap function, overwrap and overlap adjustments, and customizable top, middle, and bottom wrapping layers from 0-99 winds.

Q:What is the warranty and support for this machine?

It comes with a 1-year warranty and lifelong maintenance and technical support for reliable operation.
