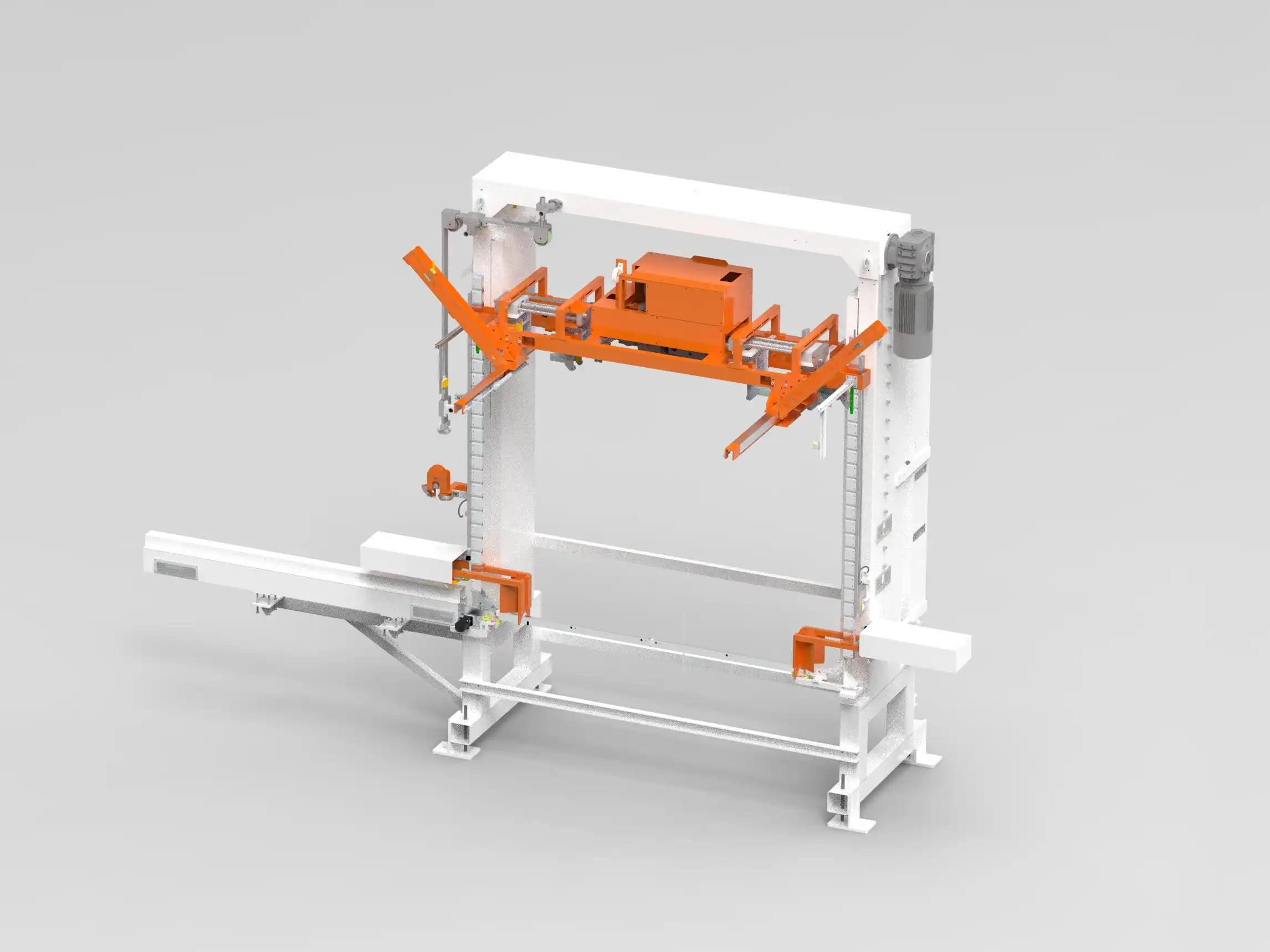

Vertical Pallet Strapping Machine
Explore our Vertical Pallet Strapping Machine for enhanced load stability. Features adjustable height, HMI control, and reliable components. Ideal for industrial palletizing efficiency.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The Vertical Pallet Strapping Machine is an engineered system designed for applying vertical straps to palletized goods, enhancing load stability for handling and transit. Its design focuses on adaptability to diverse product dimensions, operational efficiency, and integration of reliable industrial-grade components.
This machine is intended for industrial operations seeking an effective and reliable solution for securing palletized loads, contributing to overall operational efficiency and load security.
Key Benefits
- Flexible strapping height adjustment for accommodating various cargo heights and optimizing throughput
- Lance passage monitoring system to prevent damage during the strapping cycle
- Floating strapping head design for uniform tension application across all sides
- Mechanical strap dispenser unit for simple and dependable strap feeding
- Human-Machine Interface (HMI) control for intuitive setup and operation
- Optional horizontal edge protection system for enhanced corner and edge protection
Technical Specifications
| Specification | Value |
|---|---|
| Maximum Package Height | 1800mm |
| Conveyor Height | 300mm – 600mm (Adjustable) |
| Strap Jointing Method | Friction Weld Sealing |
| Tension Force Range | 50 – 5000N (Adjustable) |
| Strap Joint Seal Length | 20mm |
| Single Strap Cycle Time | Approx. 15 seconds |
| Edge Protector Lengths ( Optional) | 50mm / 120mm / 200mm |
| Electrical Supply Voltage | 380V / 50Hz |
Frequently Asked Questions
Common questions about Vertical Pallet Strapping Machine and our services.
Q:What is the maximum package size this machine can handle?
Q:How does the machine ensure uniform strap tension?
Q:What are the optional features available?
