Table Roll AutoBagger FP-A08-2TR
Discover the Table Roll AutoBagger FP-A08-2TR, an all-electric automatic bagging machine with speeds up to 25 BPM, compact design, and advanced printing capabilities for efficient packaging.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The FHOPE Auto Bag machine is a OneStep tabletop automatic bagger designed for efficiency and versatility in low- to mid-volume production environments.
With speeds of up to 25 bags per minute (15 BPM for OneStep), these machines offer innovative engineering in a straightforward, tabletop design.
Featuring a small footprint of just 22 x 19 inches and weighing only 82 pounds, these all-electric baggers are quiet and do not require compressed air to operate.
Simple to use with a user-friendly display that enables easy access to operating parameters, job set-up, job storage, and on-board system diagnostics.
Equipped with a unique locking turntable and AutoThread feature for ergonomic handling and quick bag changeover.
There are many benefits to using a pre-opened bag on a roll for your hand load applications.
Key Benefits
- All-electric operation for quiet, compressed air-free use
- Compact tabletop design with a 22 x 19 inch footprint
- Speeds up to 25 bags per minute for efficient production
- User-friendly display with easy access to parameters and diagnostics
- Locking turntable and AutoThread feature for quick changeover
- Versatile bag handling with pre-opened roll bags

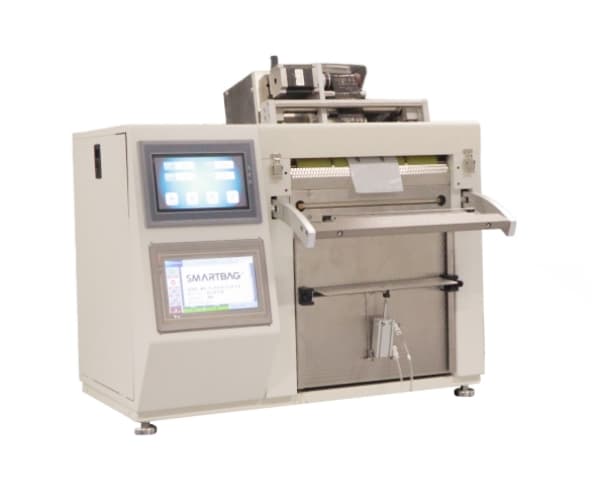

Table Roll AutoBagger FP-A08-2TR Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Compressed Air | 0.7 MPa |
| Bag Length | 10 cm to 40 cm |
| Film Thickness | 0.04-0.15 mm |
| Efficiency | 20-25 bags per minute |
| Interface | 7" HMI+7" HMI (Chinese/English Manual) |
| Startup Mode | Foot switch/Start button/Push bar/External signal |
| Safety | Anti-Hand Pinch |
| External Signal | Dry Contact, as per external port agreement |
| Print Area | 53 mm x 125 mm (SVM 53 C AB) |
| Print Resolution | 12 dots/mm (300 dpi) horizontally and vertically |
| Print Communications | RS-232 (PC), LAN (Ethernet), USB |
| Barcodes | 1D Barcodes (EAN-13, EAN-8, CODE 128, CODE 39, CODABAR, ITF 2of5, ITF 14, UPC-A, UPC-E), 2D Barcodes (Data matrix, QR Code, PDF417, Aztec code), GS-1 Barcodes (GS1-128, GS1-Datamatrix, GS1-Databar barcodes) |
| Compatible Software | SAYASIS Label Design (Real-time date and time, text, counter, logo, shift codes, 1D/2D barcodes, GS-1 barcodes and GS-1 Creation Wizard support), Windows Printer Driver (32-64 bit), Teklynx Software (Code soft, Label view, and Label matrix), Emulator support, managing printer via SPPL (Savema Protocol) commands, working with all True-Type fonts, Remote display control from PC, .csv file support for database |
Frequently Asked Questions
Common questions about Table Roll AutoBagger FP-A08-2TR and our services.
Q:What is the maximum speed of the Table Roll AutoBagger FP-A08-2TR?
Q:Does this bagging machine require compressed air to operate?
Q:What are the bag size capabilities of this automatic bagger?
Q:What safety features are included with the Table Roll AutoBagger?
