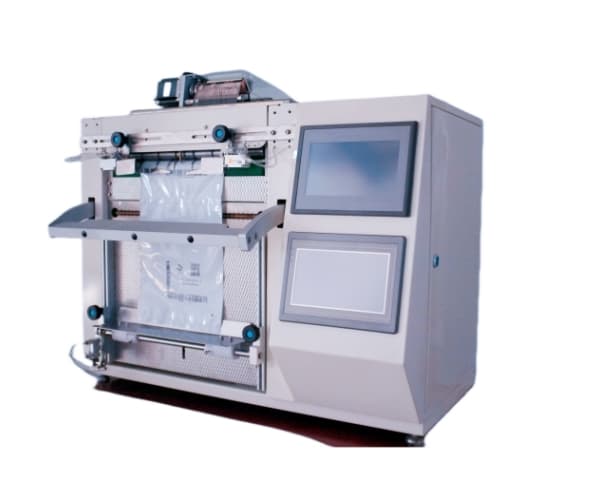

Table Roll AutoBagger FP-A012-4TR with Integrated Printer
Streamline packaging with the Table Roll AutoBagger, featuring automatic bag loading, sealing, and built-in printing for labels and barcodes. Ideal for e-commerce and order fulfillment.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description
The Table Roll AutoBagger is a compact and efficient automatic bagging machine designed for industrial packaging solutions. It uses system-matched Autobag bags available in sizes 10.5 inches wide and 17 inches long, providing convenient packaging options. Bags are automatically indexed and loaded by hand, then sealed using Push-to-Seal automated sealer function, a standard footswitch, or automatic cycle control for flexible operation.
This auto bagger includes a built-in reliable printer with next-bag-out printing technology, ideal for short runs, order fulfillment, and e-commerce applications such as pharmacy or catalog orders. It prints high-resolution graphics, text, and barcodes directly on bags, eliminating the need for separate labeling. The printer features a tilt-back print head for easy maintenance, and optional auto bag label design software simplifies label creation.
Key Benefits
- Automatic bag indexing and loading with multiple sealing options (Push-to-Seal, footswitch, automatic cycle)
- Built-in printer with next-bag-out technology for direct printing on bags, reducing labeling steps
- High-resolution printing of graphics, text, and barcodes including 1D, 2D, and GS-1 formats
- Compact design with dimensions of 483×750×653 mm, suitable for tabletop use
- Wide bag compatibility from 6 cm to 30 cm in width and 10 cm to 40 cm in length
- Efficient operation with speeds of 20-25 bags per minute and anti-hand pinch safety feature
Table Roll AutoBagger FP-A012-4TR with Integrated Printer Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Compressed Air | 0.7 MPa |
| Bag Length | 10 cm to 40 cm |
| Film Thickness | 0.04-0.15 mm |
| Efficiency | 20-25 bags/minute |
| Interface | 7" HMI with Chinese/English manual |
| Startup Modes | Foot switch, Start button, Push bar, External signal |
| Safety | Anti-Hand Pinch |
| External Signal | Dry Contact, as per external port agreement |
| Print Area | 107 mm x 250 mm (SVM 107 C AB) |
| Print Resolution | 12 dots/mm (300 dpi) horizontally and vertically |
| Print Communications | RS-232 (PC), LAN (Ethernet), USB |
| Barcodes | 1D Barcodes (EAN-13, EAN-8, CODE 128, CODE 39, CODABAR, ITF 2of5, ITF 14, UPC-A, UPC-E), 2D Barcodes (Data matrix, QR Code, PDF417, Aztec code), GS-1 Barcodes (GS1-128, GS1-Datamatrix, GS1-Databar) |
| Compatible Software | SAYASIS Label Design, Windows Printer Driver (32-64 bit), Teklynx Software (Code soft, Label view, Label matrix), Emulator support, SPPL commands, True-Type fonts, Remote display control, .csv file support |
Frequently Asked Questions
Common questions about Table Roll AutoBagger FP-A012-4TR with Integrated Printer and our services.
Q:What types of bags can the Table Roll AutoBagger handle?
Q:How does the built-in printer benefit packaging operations?
Q:What safety features are included in this auto bagger?
