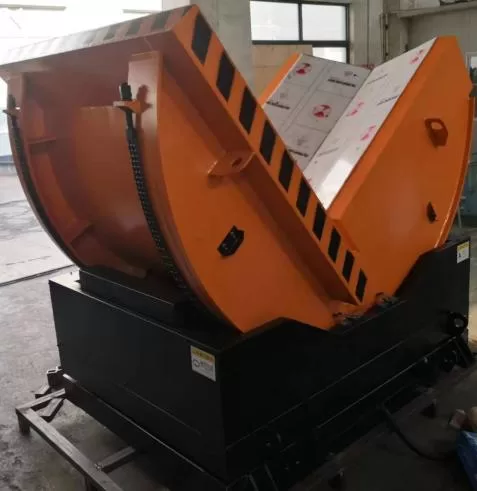

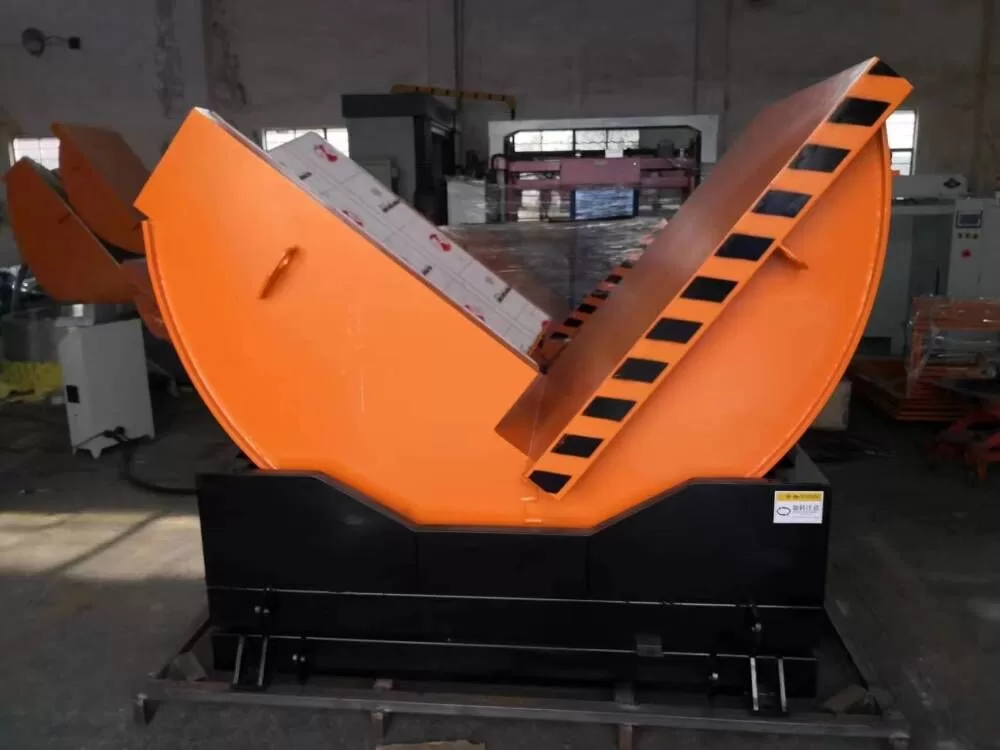

Rotating Coil Upender - View 1
1 / 5

Tap thumbnails to view different images

Mechanical upender

Rotating Coil Upender

Model:1634

The Rotating Coil Upender offers 360-degree rotation for easy coil loading and unloading, ideal for cable, steel, and mold industries. Features include inverter control, safety restrictors, and CE compliance.

Key Specifications

Main Turn Speed:60-90 sec/pcs
Power Supply:380V, 50Hz, 3Ph
Power Consumption:Approx. 4.0KW / 5.0KW / 15KW
Machine Model:FPCT-05 /10 /40
Max Loading:2000 - 40,000 kgs

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The Rotating Coil Upender is a specialized device engineered to rotate coils fully, facilitating easy loading and unloading from various angles. This equipment is particularly useful in industries such as cable, steel, and mold manufacturing. With departments dedicated to sales, equipment service, customer relations, and engineering, we are equipped to tailor the perfect protective packaging solution to meet your specific needs.

Key Benefits

  • 360-degree turning for flipping table
  • Inverter for machine soft start and stop
  • Speed adjustment by inverter
  • Individual electric panel control
  • Steady construction with oblique gear and worm speed reducer
  • Micrometric setting device for adjustment on irregular floors
  • Electric and mechanical displacement restrictors for safety
  • Position locking function to stop at any angle
  • Base frame with rotating table for 180-degree operation
  • Strong and durable structure
  • CE standard compliance

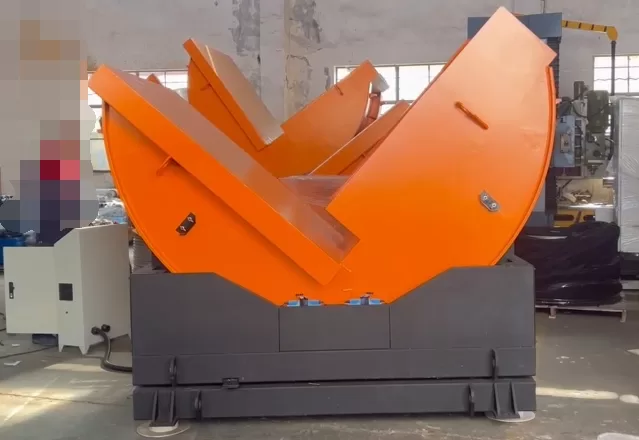

Rotating Coil Upender Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

SpecificationValue
ProductsSteel Coil, mold...
Working Table SizeCustomized
Flat Table SizeL1500 x W1500 mm
V Table SizeL1500 x W1500 mm
Up Ending Perspective90 degree

Frequently Asked Questions

Common questions about Rotating Coil Upender and our services.

Q:What industries is the Rotating Coil Upender suitable for?

It is ideal for industries such as cable, steel, and mold manufacturing, where efficient coil handling and rotation are required.

Q:Does the Rotating Coil Upender include safety features?

Yes, it features electric and mechanical displacement restrictors to ensure safe operation and a position locking function to stop at any angle.

Q:Can the Rotating Coil Upender be adjusted for uneven floors?

Yes, it includes a micrometric setting device that allows for adjustment on irregular floors, ensuring stable operation.
