Heavy-Duty Mechanical Upender with Sliding Table System

Name: Heavy-Duty Mechanical Upender with Sliding Table System
Brand: Industrial Solutions
SKU: 524
Availability: InStock

Model:524

Discover our heavy-duty upender and tilter with sliding table, designed for cable, steel, and mold industries. Features include inverter speed control, safety restrictors, and a 5T max load for efficient coil positioning.

Specifications

Wire Coil Size:OD: 1400mm, Width: 1200mm

Working Table:1400 x 1200mm

Max Loading:5T

Turn- Over Speed:90° single way turn-over

Perspective:Approx. L3000 x W2200 x H2600mm, Weight: 4T

Power Voltage:AC 380V, 60Hz

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

FHOPE supplies upending solutions with our coil tilter/upender, ideal for cable, steel, and mold industries. Our sales, service, and engineering teams help design optimal protective packaging systems for your applications.

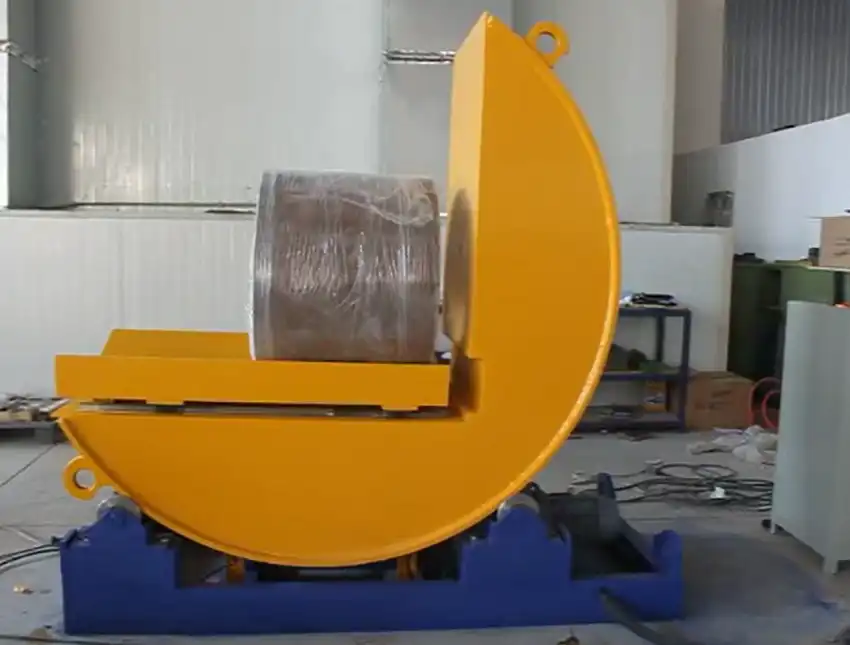

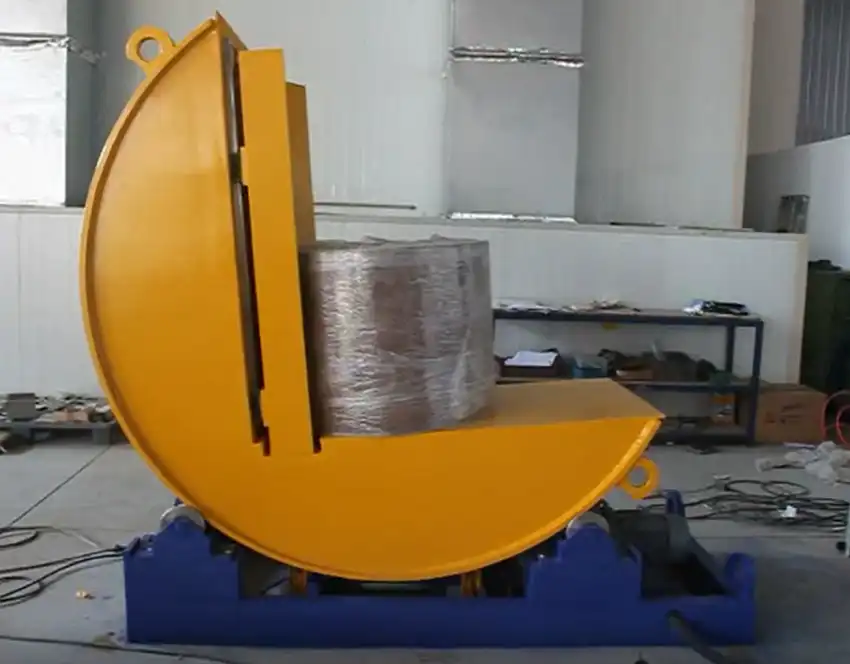

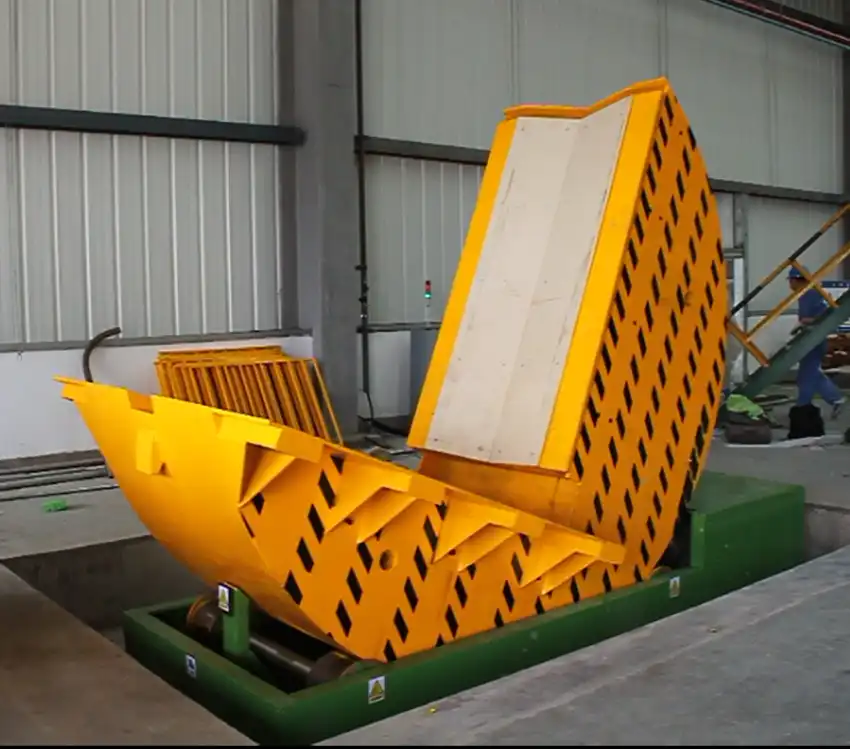

This mechanical upender, also known as a coil positioner, rotates products for various production and storage uses, handling heavy or delicate loads. It features a sliding table system for controlled horizontal movement, facilitating object transport on the machine surface. Available with electric or hydraulic drives and a heavy-duty brake for secure positioning, it enhances accessibility during manufacturing, improving safety and reducing manual labor risks.

Key Benefits

Individual control panel and electric box for easy operation
Inverter for adjustable speed control
Sturdy construction with worm speed reducer for reliability
Electric and mechanical restrictors ensure safe operation
Positioning locking function allows stops at any angle
Easy daily maintenance for minimal downtime
Position fixing when power off enhances safety
Strong and durable machine structure for long-term use
Sliding table system controls horizontal stretching movement

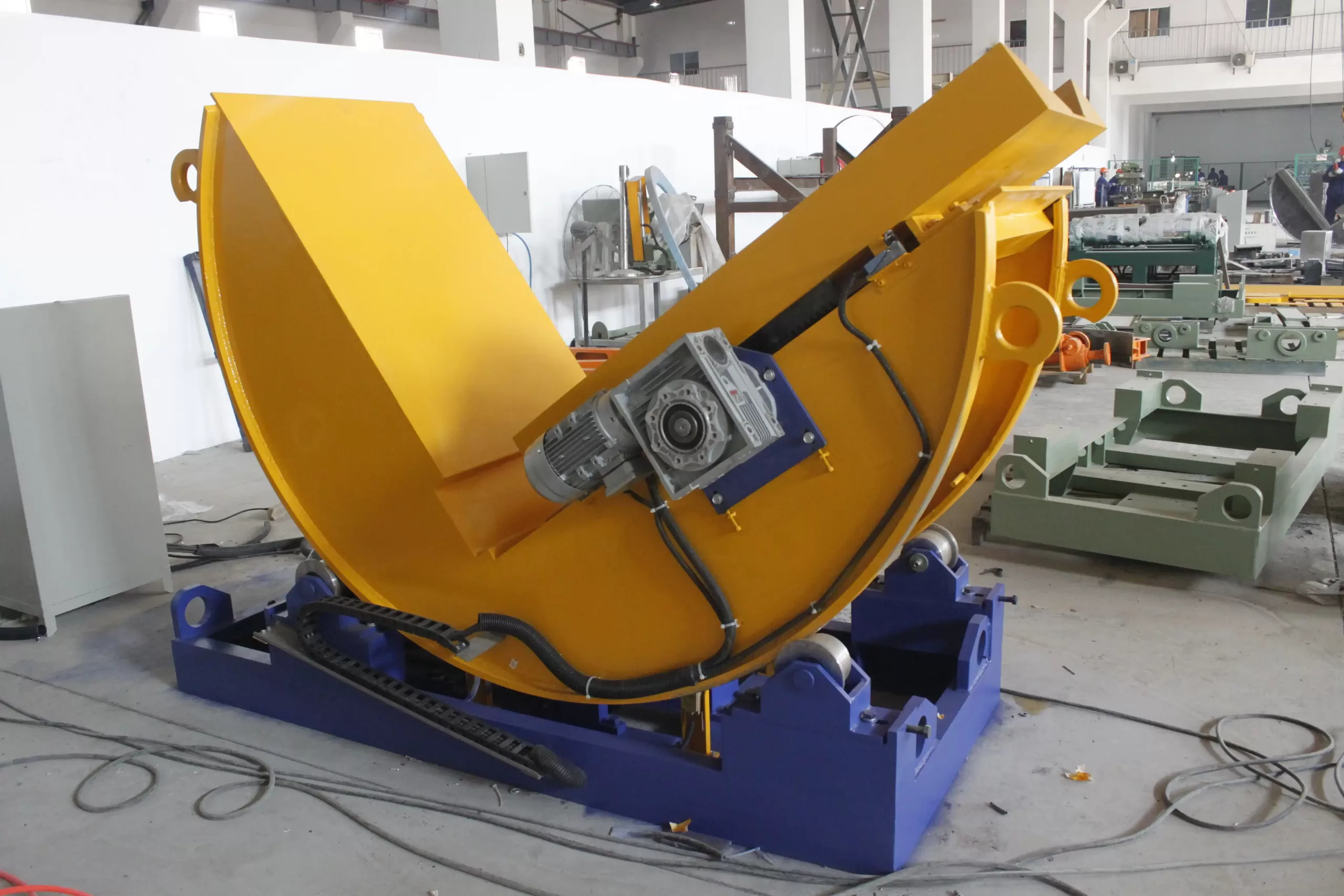

Heavy-Duty Mechanical Upender with Sliding Table System Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Frequently Asked Questions

Common questions about Heavy-Duty Mechanical Upender with Sliding Table System and our services.

Q:What industries is this upender and tilter designed for?

It is designed for cable, steel, and mold industries, providing efficient coil handling and positioning solutions.

Q:What safety features does the upender include?

It includes electric and mechanical restrictors, a positioning locking function, and position fixing when power off to ensure safe operation.

Q:What is the maximum load capacity of this machine?

The maximum load capacity is 5 tons (5T), suitable for heavy-duty industrial applications.

Q:How does the sliding table system function?

The sliding table system controls the horizontal direction of outward stretching movement, facilitating easy movement of objects on the machine surface.
