JL-CX6000 Automatic Pipe Bundling and Bagging Line

Name: JL-CX6000 Automatic Pipe Bundling and Bagging Line
Brand: Industrial Solutions
SKU: 545
Availability: InStock

Model:545

Boost efficiency with our automatic pipe bundling and bagging machine. Features PLC control, stretch film strapping, and bagging for pipes up to 6m. Reduce labor costs and improve packaging quality.

Key Specifications

Bundle Outer Diameter:Φ160-Φ250

Pipe Diameter ( O D):Φ20mm-Φ50mm

Bundling Speed:Approximately >1 bundle per minute

Lifting Speed:Maximum 50-60 pieces per minute

Pipe Bundle Weight:5-50kg

Bag Size Outer Diameter:300mm

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

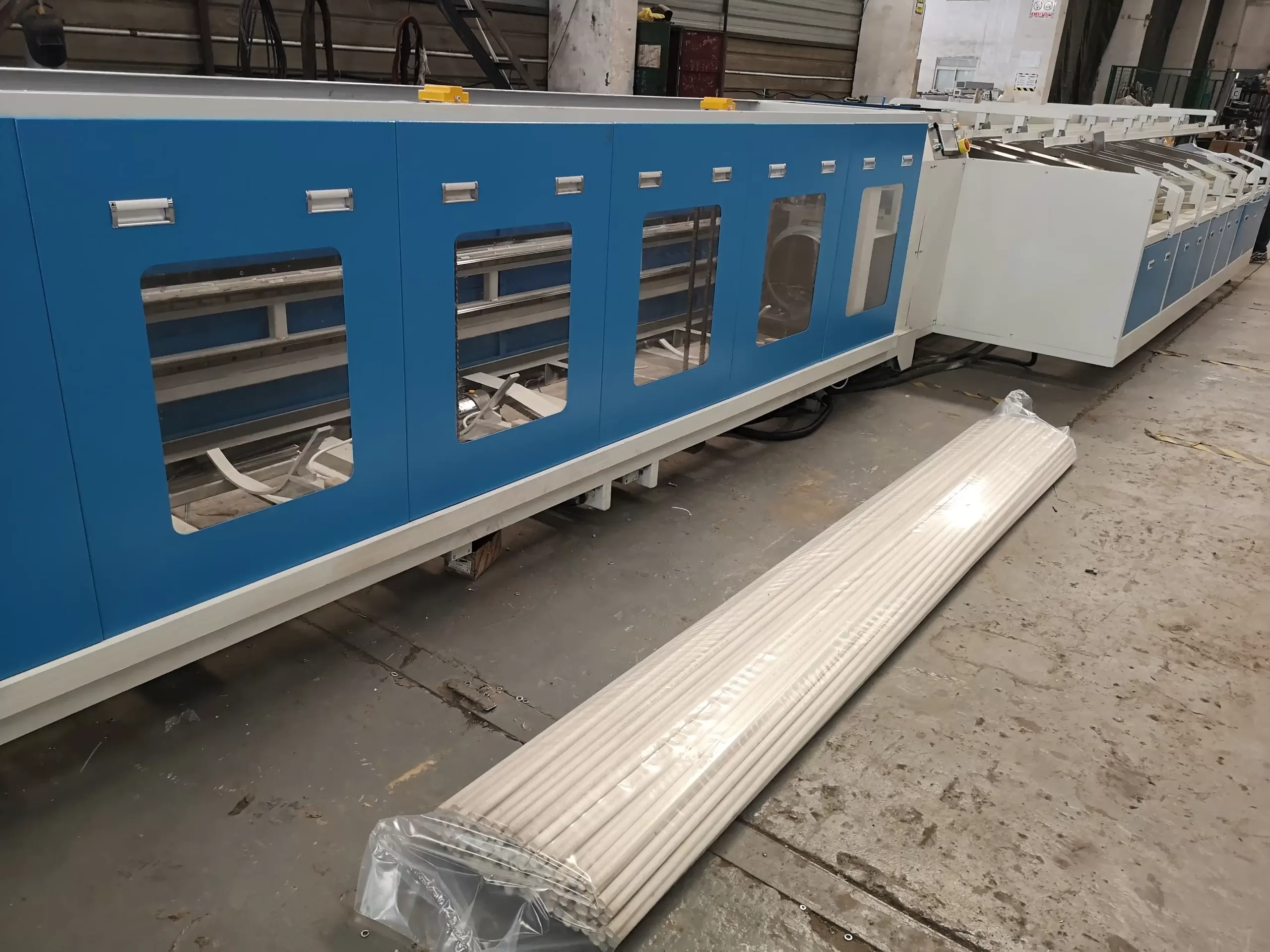

This automatic pipe bundling and bagging machine is a comprehensive packaging line designed for efficient and safe pipe handling. It includes processes such as pipe counting, feeding, storage, aligning, bundling with stretch film, and automatic bagging. Ideal for industrial applications, it enhances work efficiency while minimizing labor requirements.

The system supports both online and offline bundling, with features like a storage and feeding system to ensure uninterrupted operation, precise counting, and defect recycling. It is suitable for pipes with diameters from Φ20mm to Φ50mm and lengths up to 6 meters, offering customizable bundling and bagging speeds.

Key Benefits

PLC and HMI control for automatic operation and easy setup

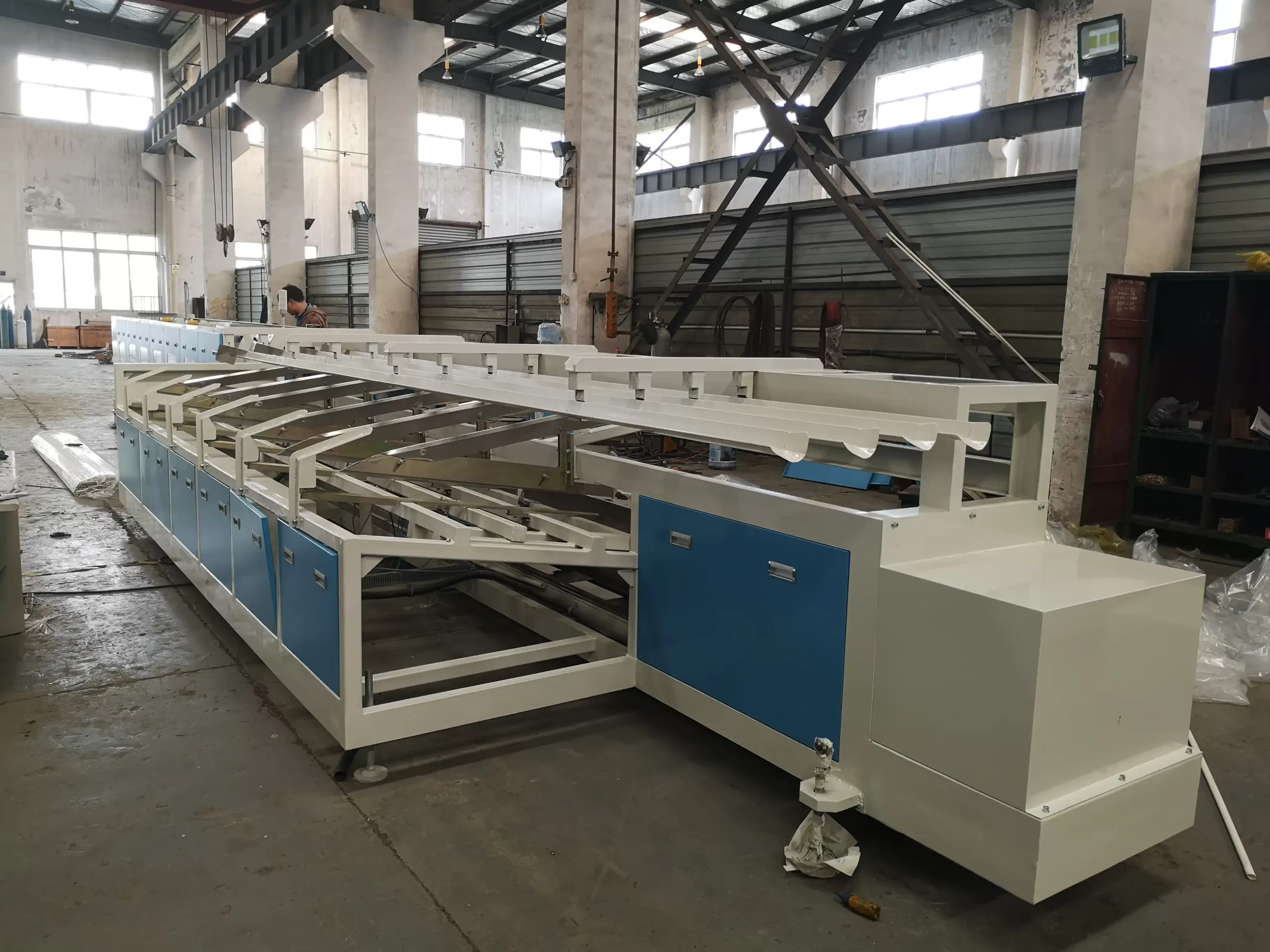

Storage and feeding system with pipe lifter and buffer zone for continuous workflow
Automatic pipe counting and aligning to maintain orderly bundling
Stretch film strapping with adjustable tension and three-position strapping capability

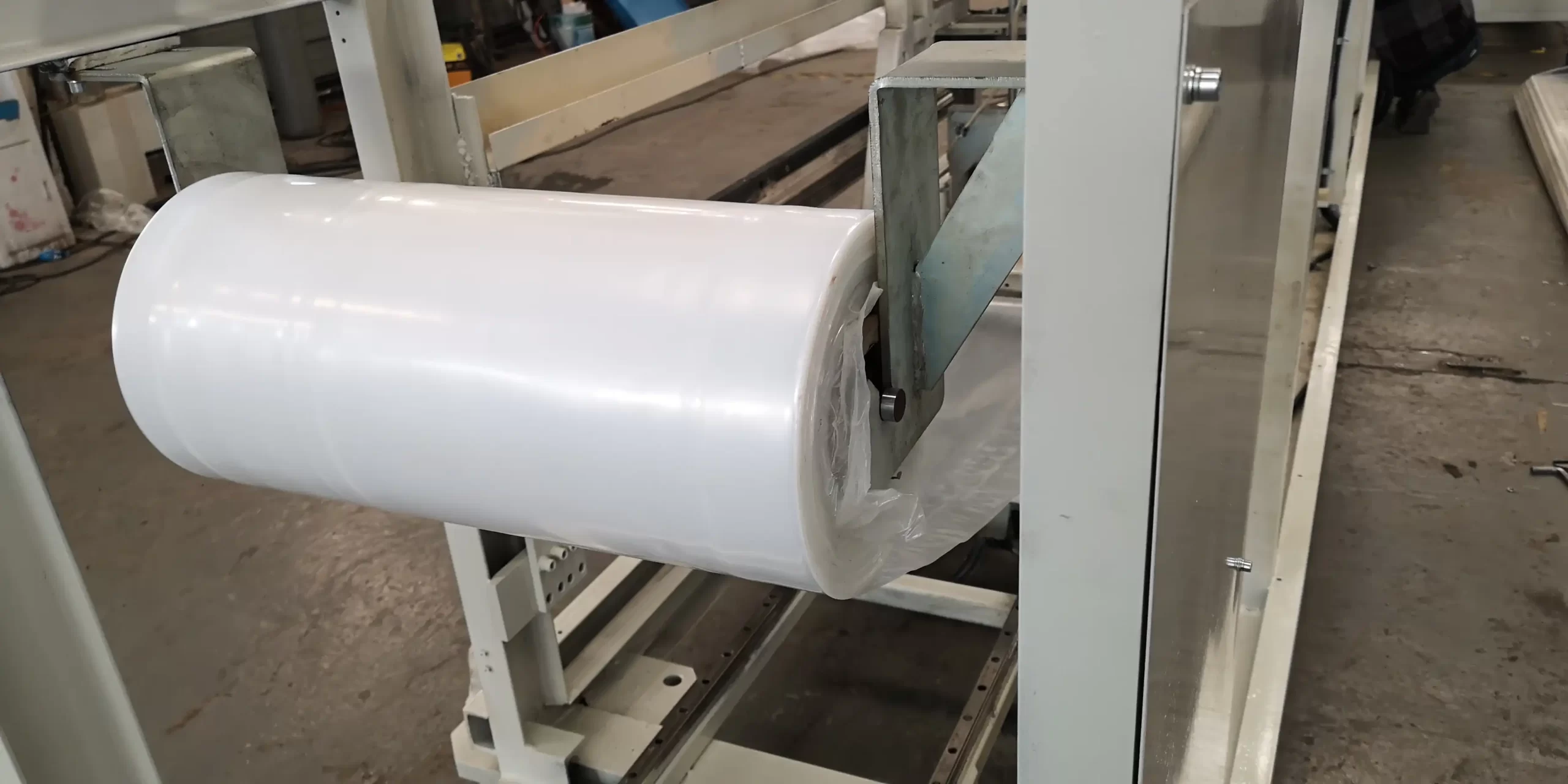

Automatic bagging machine with heat sealing and cutting for neat packaging
Safety features including guardrails and sensors for operator protection
Support for multiple pipe lengths and bundle sizes with changeable pieces per bundle

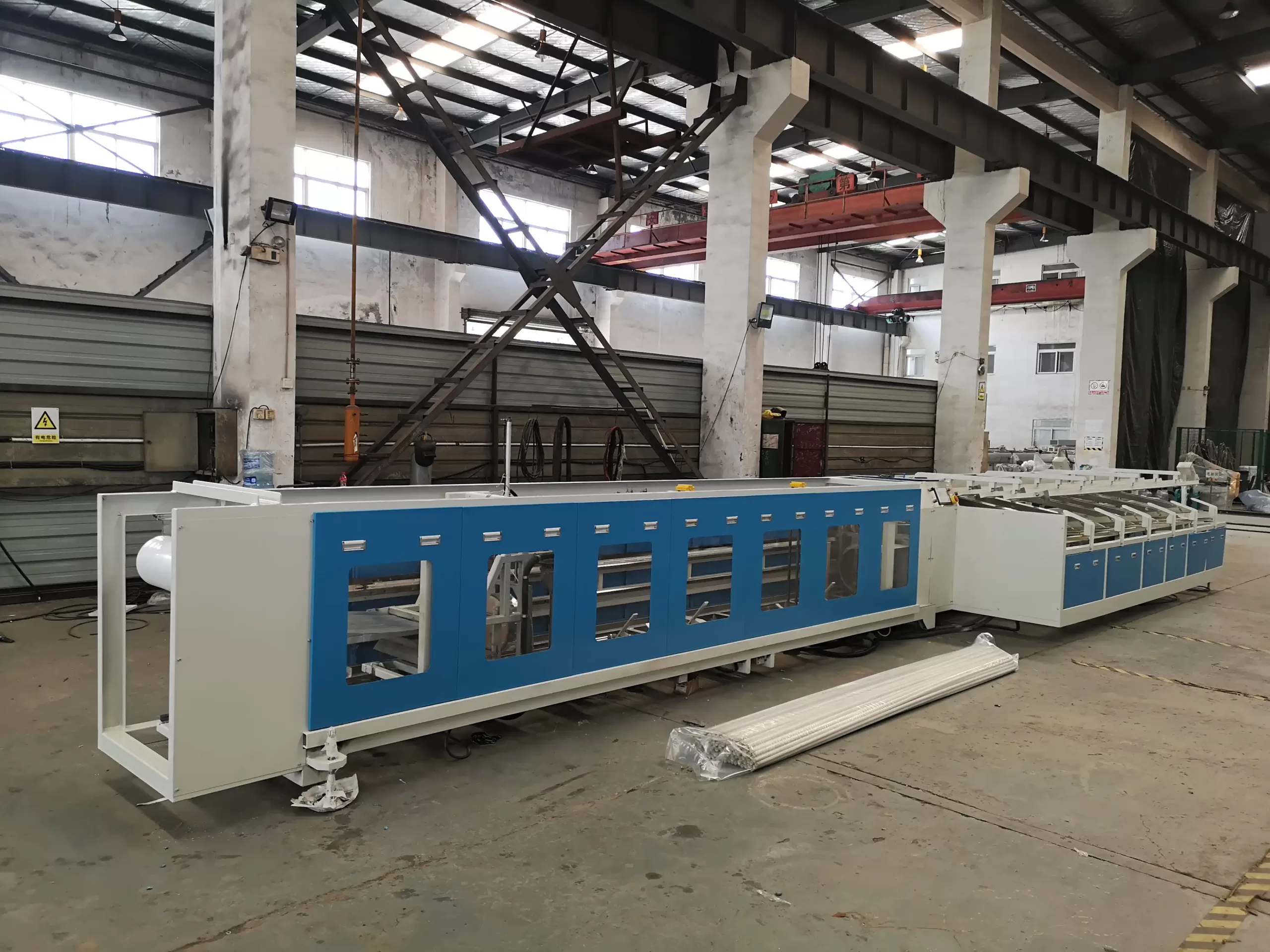

JL-CX6000 Automatic Pipe Bundling and Bagging Line Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Pipe Length	2, 3, 4 meters (6m optional)
Counting Mode	Automatic, by program setting
Strapping Material	LLDPE stretch film
Packaging Material	PP/HDPE/PE
Material Thickness	80-160 micron
Feeding Mode	Automatic
Air Supply	5-7 bar
Bagging Speed	>1 bundle per minute
Power Supply	380V 3-phase 50Hz

Frequently Asked Questions

Common questions about JL-CX6000 Automatic Pipe Bundling and Bagging Line and our services.

Q:What types of pipes can this machine handle?

This machine is designed for pipes with outer diameters from Φ20mm to Φ50mm and lengths of 2, 3, or 4 meters, with an option for 6 meters. It supports bundle outer diameters from Φ160 to Φ250.

Q:How does the machine ensure accurate pipe counting and bundling?

The machine uses a precise pipe counting system controlled by PLC programming, with sensors for positioning and detecting. It automatically counts and accumulates pipes for bundling, with changeable pieces per bundle as needed.

Q:What safety features are included in the bagging machine?

The bagging machine includes guardrails, sensors, and guidance systems to ensure operator safety during automatic bagging, sealing, and cutting processes.
