Automatic Pipe Bundle Making and Banding Packing Machine
Boost efficiency with our automatic pipe bundle making and banding packing machine. Features PLC control, adjustable bundling, and low noise for PVC pipes from Φ22mm-60mm.
Key Specifications
Custom Engineering Available
Need modifications? Our team can tailor this solution to your specific requirements.
Product Description

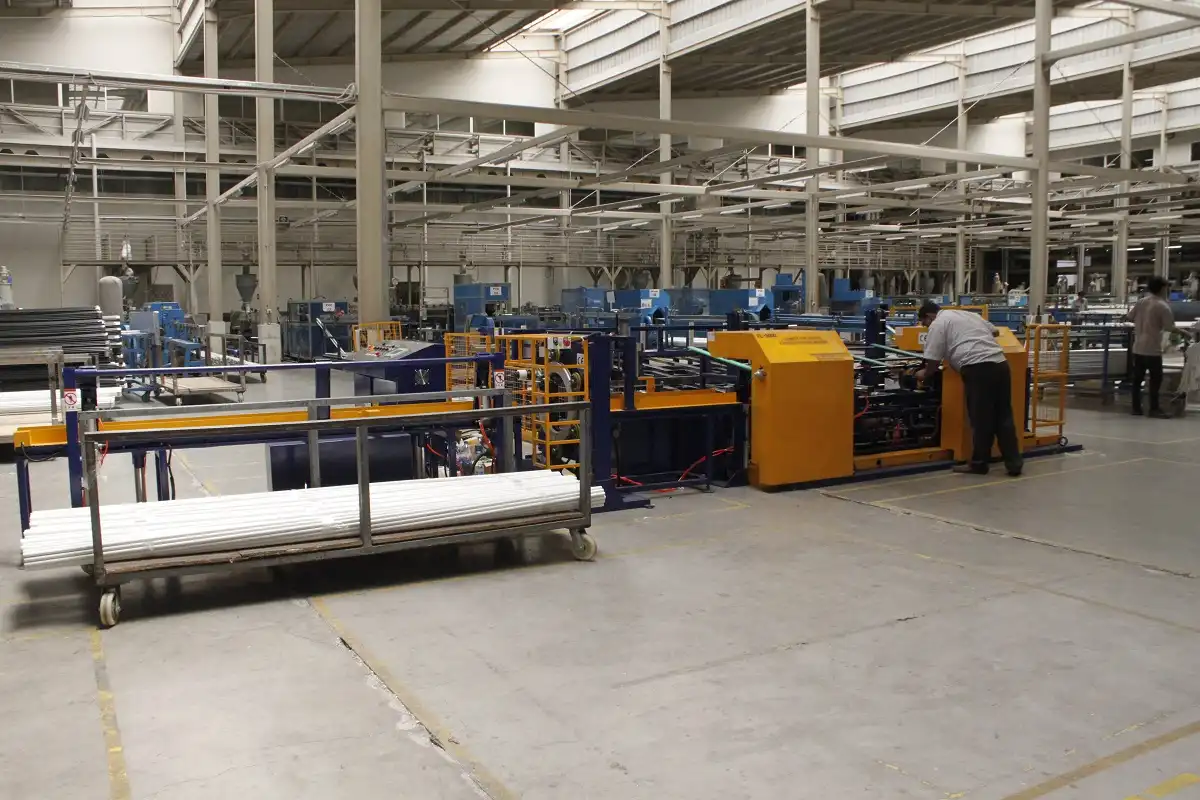

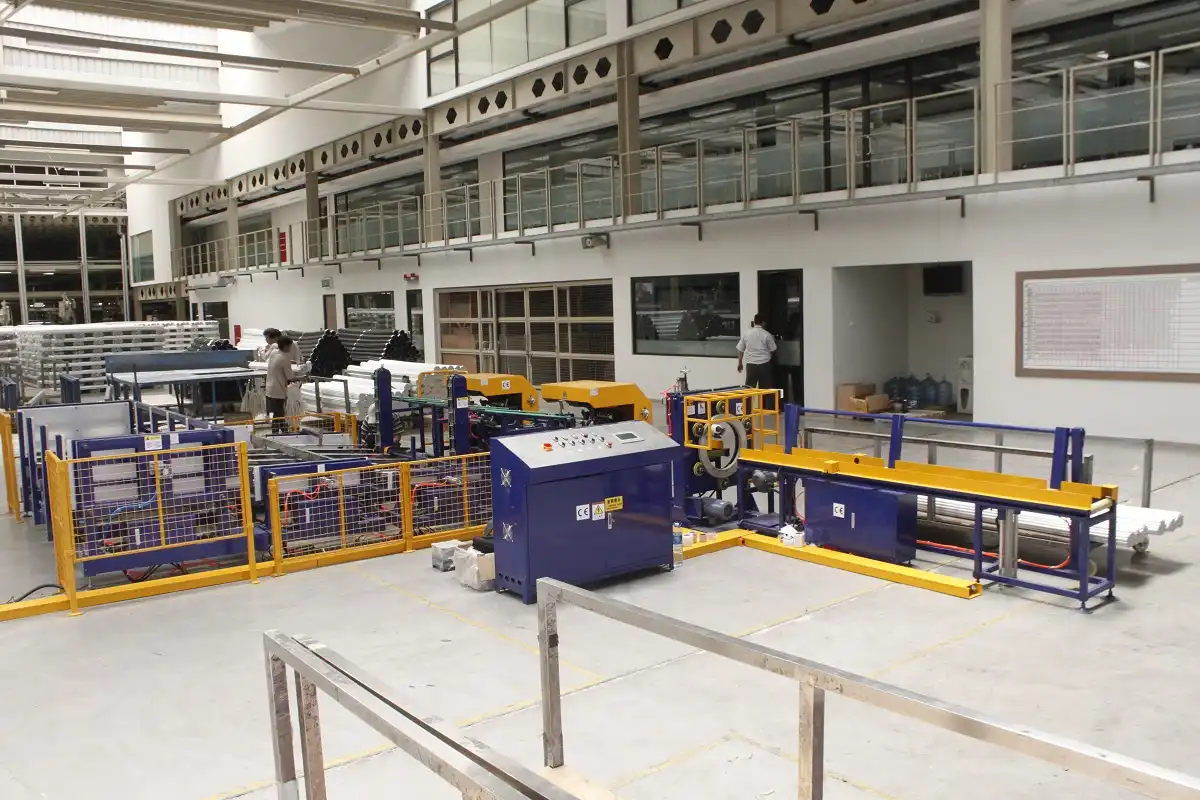

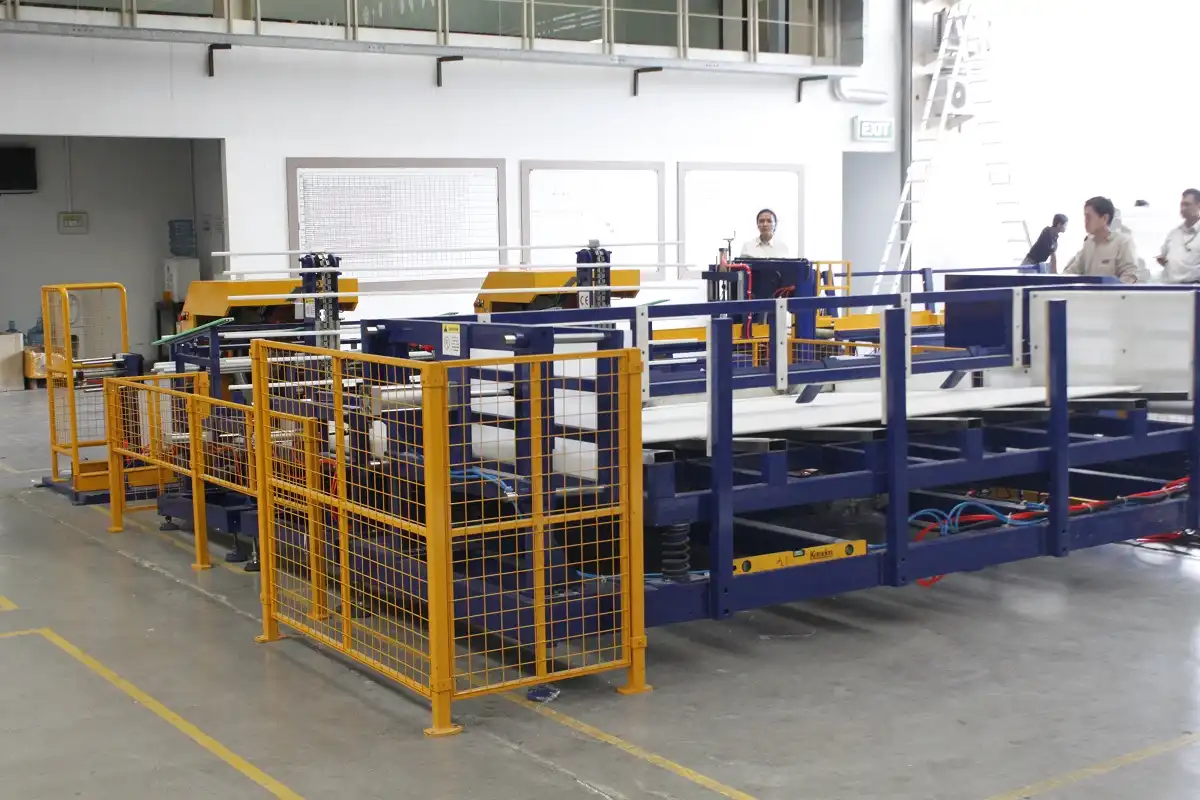

This automatic pipe bundle making and banding packing machine is a comprehensive packing line designed for PVC pipes. It includes systems for pipe counting, feeding, storage, aligning, bundling, strapping, conveying, and ejection, providing an efficient, convenient, and safe solution for pipe bundle packaging.
The machine operates with a modular construct, offering high efficiency through mechanized bundling compared to manual methods. It features wide applicability, with special designs available for unique sizes, and ensures no product damage due to humanized design and manufacture. Benefits include extremely low consumable and energy costs, low noise levels, short set-up times, adjustable product advancement speed using an inverter, a quick-change dispenser for wrapping material, and adjustable tension for bundle packaging.
Note: For optimal automatic in-feeding, pipes should be strong and straight; OD18mm pipes may require manual assistance if thick or not straight.
Key Benefits
- Modular system construction for flexibility and scalability
- Mechanized bundling for higher efficiency than manual packaging
- Wide applicability with custom designs for special sizes
- Humanized design to prevent product damage
- Low consumable and energy costs with quiet operation
- Short set-up times and adjustable speed via inverter
- Quick-change dispenser for wrapping material
- Adjustable tension for bundle packaging
- PLC and HMI program control for automation
- Automatic pipe accumulation, aligning, and strapping with 3-4 stations

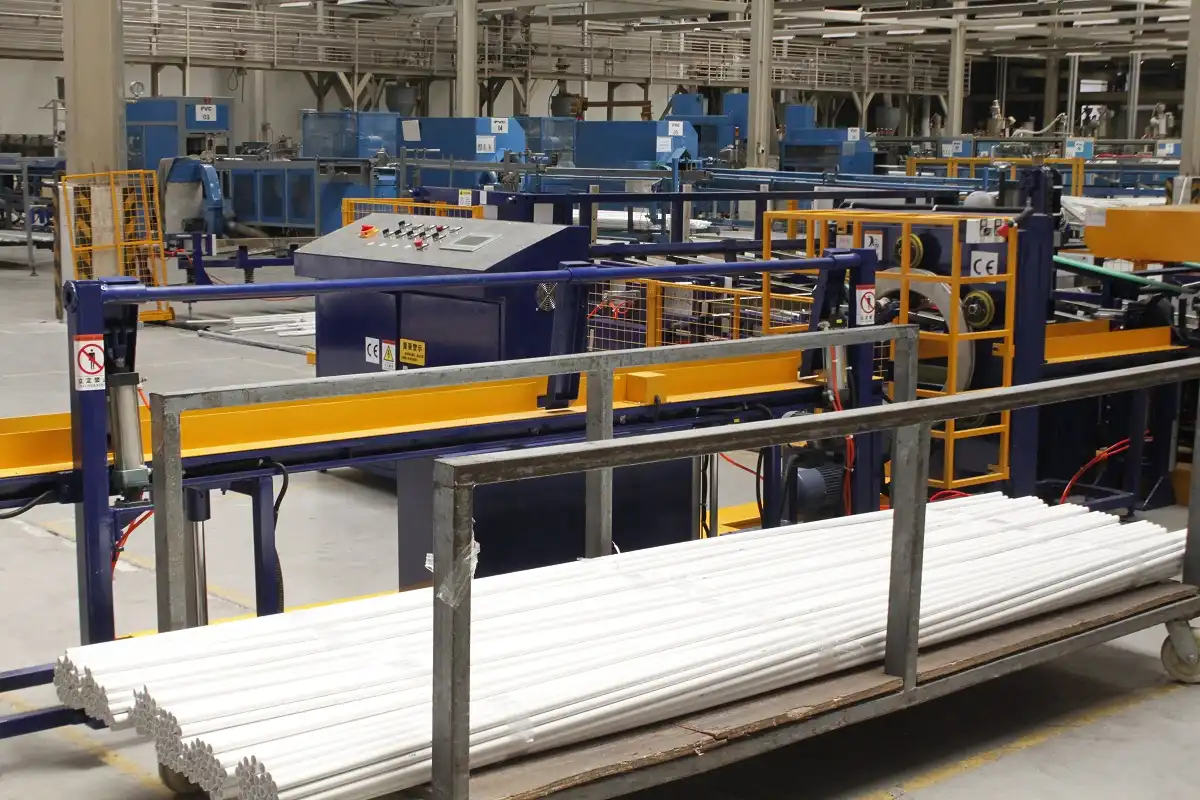

Automatic Pipe Bundle Making and Banding Packing Machine Video
Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.
Technical Specifications
| Specification | Value |
|---|---|
| Pipe Material | PVC pipe |
| Pipe Length | 4 & 5.8 meters |
| Counting Mode | Automatic, by program setting |
| Lifting Mode | Elevator |
| Strapping Material | PP belt |
| Strapping Stations | 3 sets |
| Pipe Group Length | 3 meters |
| Pipe Quantity Per Bundle | 3-50 pieces adjustable |
| Power Supply | AC, 380V 50Hz, 3 phase 5 wires |
| Air Supply | 6-8 bar |
Frequently Asked Questions
Common questions about Automatic Pipe Bundle Making and Banding Packing Machine and our services.
Q:What types of pipes is this machine designed for?
Q:How does the automatic bundling process work?
Q:What are the key benefits of using this machine?
Q:Is manual assistance required for any pipe sizes?
Q:What power and air supply are needed for operation?
