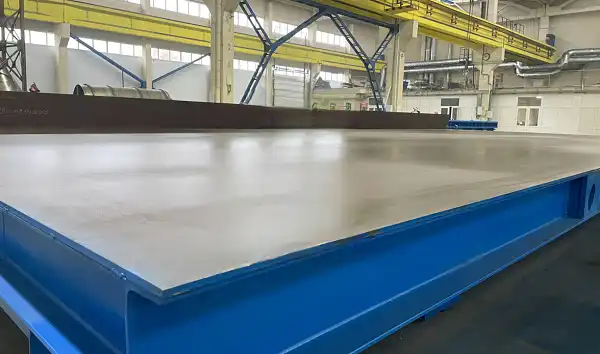

Industrial Precast Concrete Wall Tilter Table

Name: Industrial Precast Concrete Wall Tilter Table
Brand: Industrial Solutions
SKU: 1039
Availability: InStock

Model:1039

Professional concrete precast wall tilter table machine for producing reinforced construction products. Features include easy de-moulding, customizable configurations, and thermal curing modes. Ideal for large plants and small businesses.

Key Specifications

Width:4.5 m

Control Type:Touch screen and remote

Surface Width:Up to 4 m

Load Capacity:1000 kg per square meter

Finished Length:12.5 m

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

The Concrete Precast Wall Tilter Table is a versatile machine designed for producing reinforced concrete products in construction, including non-standard items. It is suitable for both large production plants and small businesses, capable of manufacturing wall panels, beams, columns, piles, elevator shafts, flat plates, and other surface products on its workbench.

The machine offers high precision with an acceptable deviation of 2mm over 3m on the forming surface and supports up to 1000kg per square meter. Constructed from 10mm thick high-hardness steel, it features a surface width of up to 4 meters and a longitudinal length of up to 12 meters, with customizable assembly options. Additional equipment such as hydraulic units, vibrators, telescopic cylinders, hot rails, safety chains, and control cabinets can be installed to meet specific production needs.

Key Benefits

Easy de-moulding for efficient product removal
Flip angle can be stopped at any desired position
Compact configuration area for space-saving operation
Can be combined into assembly lines of desired lengths
Accelerates curing of prefabricated products
Includes control panel and remote control for convenient operation
Supports multiple heat medium systems: oil, water, and steam
Features magnetic edges for exchangeable surfaces to handle various product sizes

Industrial Precast Concrete Wall Tilter Table Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

Specification	Value
Vibration Frequency	Up to 200 Hz
Running Cycles	Two prefabricated products every 24 hours
Heat Medium Systems	Oil, Water, Steam
Table Material	10 mm high-strength steel
Longitudinal Length	Up to 12 m
Forming Surface Deviation	2 mm over 3 m
Support Edge Height Adjustment	100 mm to 400 mm
Magnetic Edge Length Range	1000 mm to 6000 mm

Frequently Asked Questions

Common questions about Industrial Precast Concrete Wall Tilter Table and our services.

Q:What types of products can be produced with the Concrete Precast Wall Tilter Table?

This machine can produce a wide range of reinforced concrete products for construction, including wall panels, beams, columns, piles, elevator shafts, flat plates, and other non-standard surface products.

Q:Is the machine customizable for different production needs?

Yes, the configuration of the tilter table can be customized, including options to install hydraulic units, vibrators, telescopic cylinders, hot rails, safety chains, and control cabinets. It can also be assembled into lines of desired lengths.

Q:How does the thermal curing system work?

The control panel manages thermal curing modes using heat mediums like oil, water, or steam. For oil, temperatures range from 140 to 190 degrees Celsius over a 12-hour cycle, with adjustable parameters for steam curing based on production needs and concrete grade.
