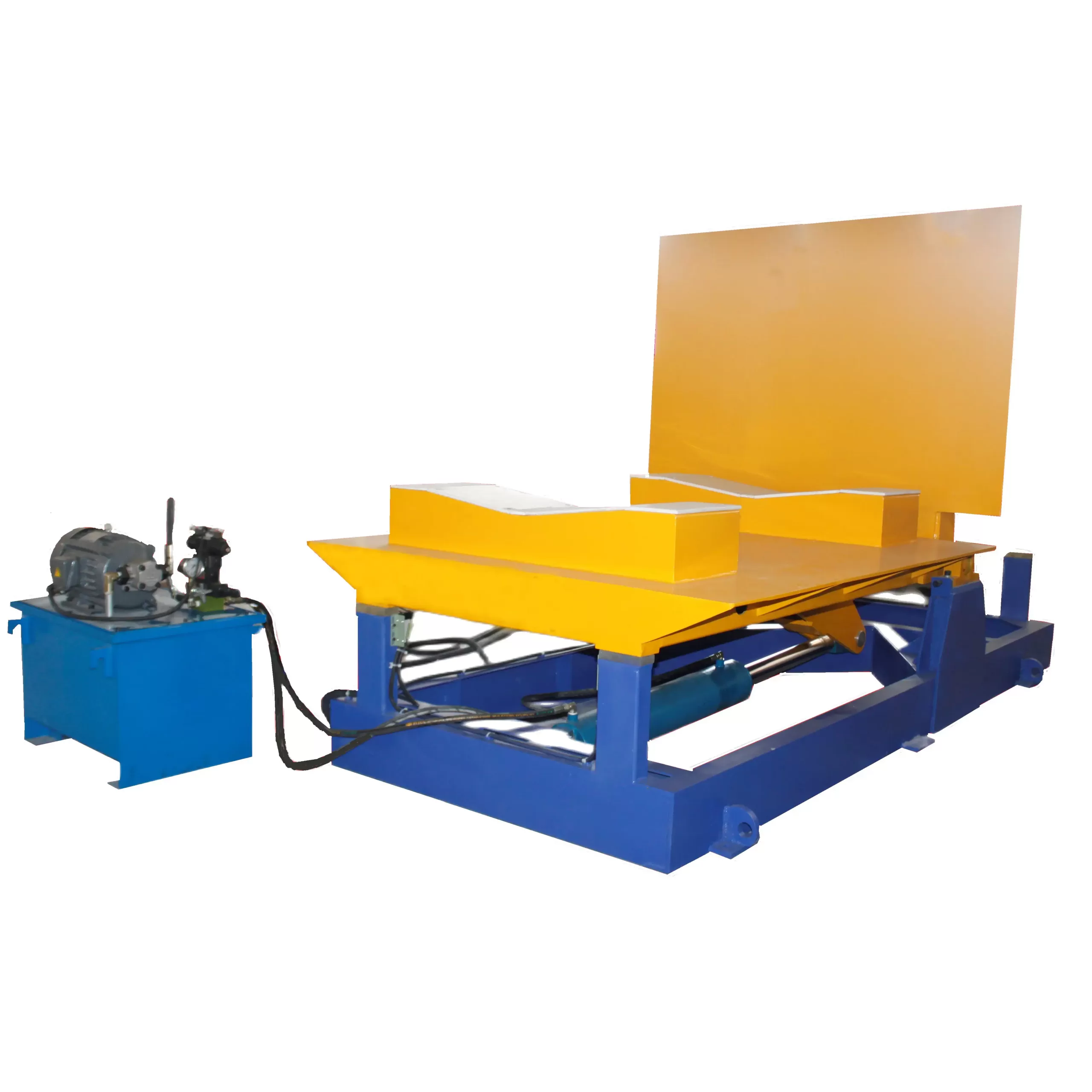

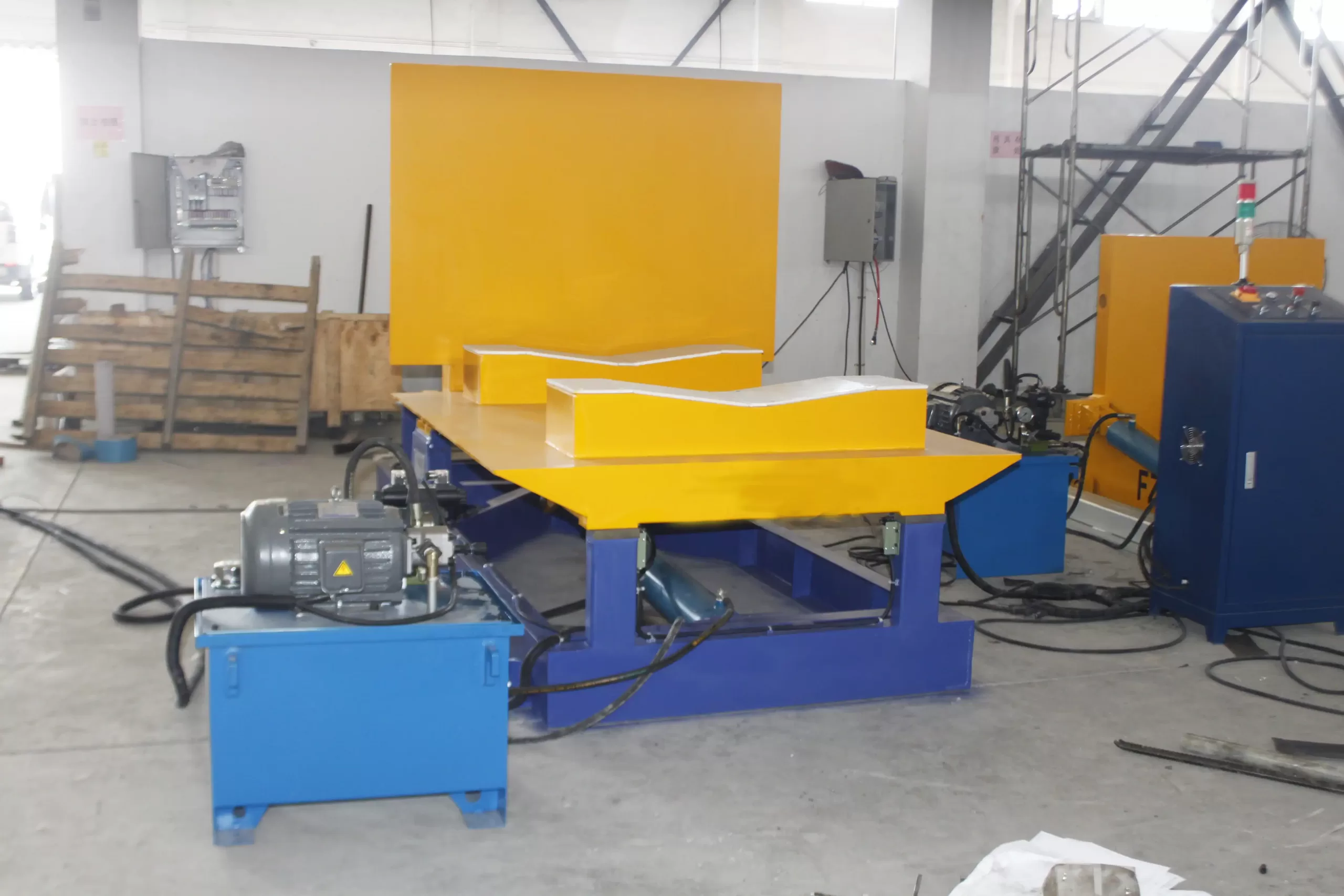

FZ-H05 Industrial Hydraulic Tilter - View 1
1 / 5

Tap thumbnails to view different images

Hydraulic upender

FZ-H05 Industrial Hydraulic Tilter

Model:491

Discover our hydraulic tilter and upender for safe and efficient turning of coils, molds, and more. Features CE safety, adjustable speed, and durable steel construction.

Key Specifications

Power Consumption:3.0kW
Load Outer Diameter ( O D):1000-1800mm
Load Weight:1000-5000kg
Capacity:5000kg
Machine Model:FZ-H05

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

Our hydraulic tilter and upender is designed for safe and efficient turning of heavy loads such as coils, molds, rod coils, and dies. It features a robust steel body, hydraulic driving system, and adjustable tilting speed, making it ideal for industrial applications. With CE certification and independent electrical panel control, it ensures operator safety and easy operation. The machine includes a working table compatible with forklifts and hand lifters, and is built for durability in various environmental conditions.

Key Benefits

  • CE certified for operator safety
  • Hydraulic driving with durable steel body
  • Heavy-duty structure for firm and durable performance
  • Adjustable turning speed via hydraulic pressure
  • Soft start and stop for smooth machine operation
  • Independent electrical panel control for easy and safe use
  • Working table compatible with forklifts and hand lifters
  • Two-way back pressure technology for force retention
  • Hydraulic cylinder-driven tilter

FZ-H05 Industrial Hydraulic Tilter Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Technical Specifications

SpecificationValue
Line Voltage220V, 60Hz, 3 phases
Load ObjectCoil, mold, rod coil, die
Load LengthMax. 2000mm
Tilting Angle90°
InverterDelta
Noise<78db
Effective Working Hours Per Year7100h
Ambient Air Temperature-35°C to +40°C
Dust ContentMax 3mg/cu m

Frequently Asked Questions

Common questions about FZ-H05 Industrial Hydraulic Tilter and our services.

Q:What types of loads can this hydraulic tilter handle?

This hydraulic tilter is designed to handle various loads including coils, molds, rod coils, and dies, with a weight capacity of up to 5000kg.

Q:Is this machine safe for operators?

Yes, the hydraulic tilter is CE certified, ensuring high safety standards for operators during use.

Q:Can the turning speed be adjusted?

Yes, the turning speed is adjustable through hydraulic pressure control, allowing for precise operation based on load requirements.
