Mechanical upender

Heavy-Duty Steel Sheet Inverter & Upender

Model:971

Rotate loads with Heavy-Duty Steel Sheet Inverter & Upender. Feat: Customizable basic parameters based on load specifications. Industrial grade solution.

Specifications

Load Info:L = 100-3000 mm x W = 250-1850 mm x H = 10-350 mm, Weight = 15T
Motor:2.5 kW
Hydraulic System:4.5 kW
Hydraulic Cylinder:OD 100 mm
Machine Size:Approx. L = 3000 mm x W = 2200 mm x H = 2600 mm, Weight = 4T

Custom Engineering Available

Need modifications? Our team can tailor this solution to your specific requirements.

Product Description

A heavy-capacity load inverter was designed and manufactured to rotate loads up to 15T 180 degrees. To ensure safety and provide a smooth, even transition during the tilting operation, the tilter features durable double-acting hydraulic cylinders.

Key Benefits

  • Customizable basic parameters based on load specifications
  • C-type structure for 180-degree turning of heavy objects
  • Powerful motor drive with heavy-duty design
  • Quality hydraulic system for secure load clamping during rotation
  • Adjustable turning speed for operational flexibility
  • Mechanical and electric stop blocks for enhanced safety
  • Control panel or remote operation options
  • Automatic stop functionality
  • Smooth, accurate, and vibration-free motion
  • Maximum pressure of 14 MPa
  • Actuation via double-acting hydraulic cylinders
  • Loading via forklift
  • Automatic position lock-up and soft reset for power-off accidents

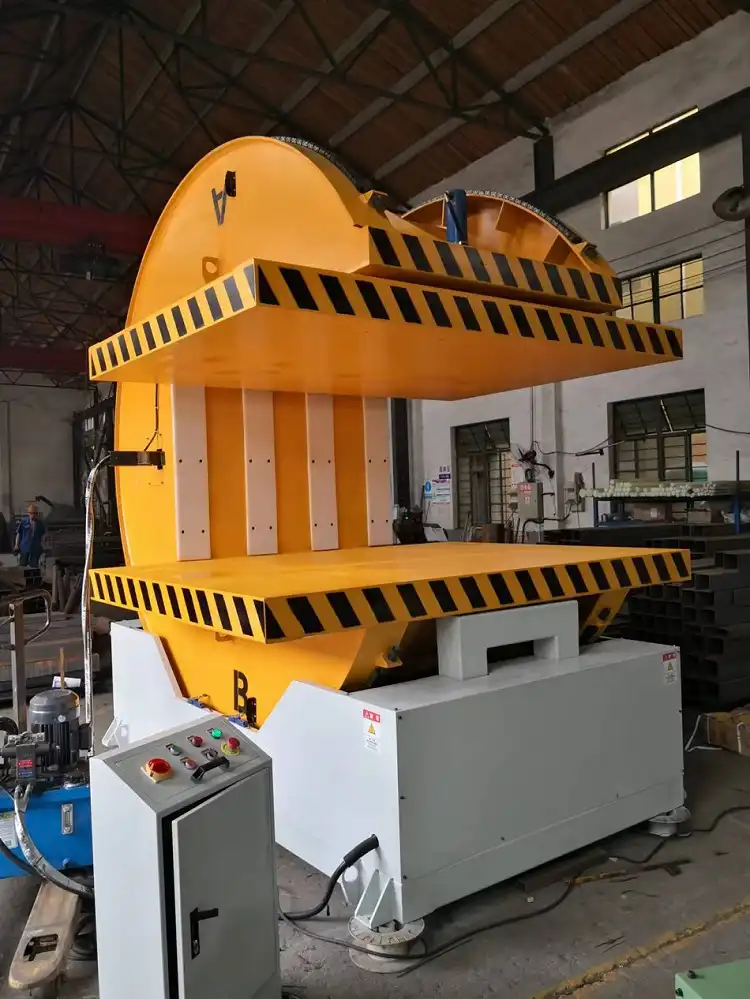

Heavy-Duty Steel Sheet Inverter & Upender Video

Watch our product demonstration to see the machine in action. Discover how it can improve your production efficiency and packaging quality.

Frequently Asked Questions

Common questions about Heavy-Duty Steel Sheet Inverter & Upender and our services.

Q:What is the maximum load capacity of this steel sheet upender?

The steel sheet upender can handle loads up to 15 tons, making it suitable for heavy-duty industrial applications.

Q:How is the load secured during rotation?

The load is secured using a quality hydraulic system that provides clamping during rotation, ensuring stability and safety.

Q:Can the turning speed be adjusted?

Yes, the turning speed is adjustable, allowing for flexible operation based on specific requirements.

Q:What safety features are included?

Safety features include mechanical and electric stop blocks, automatic stop, and durable hydraulic cylinders for smooth, vibration-free motion.
